74375 (Z 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010)

50" TimeCutter Zero-Turn Mower

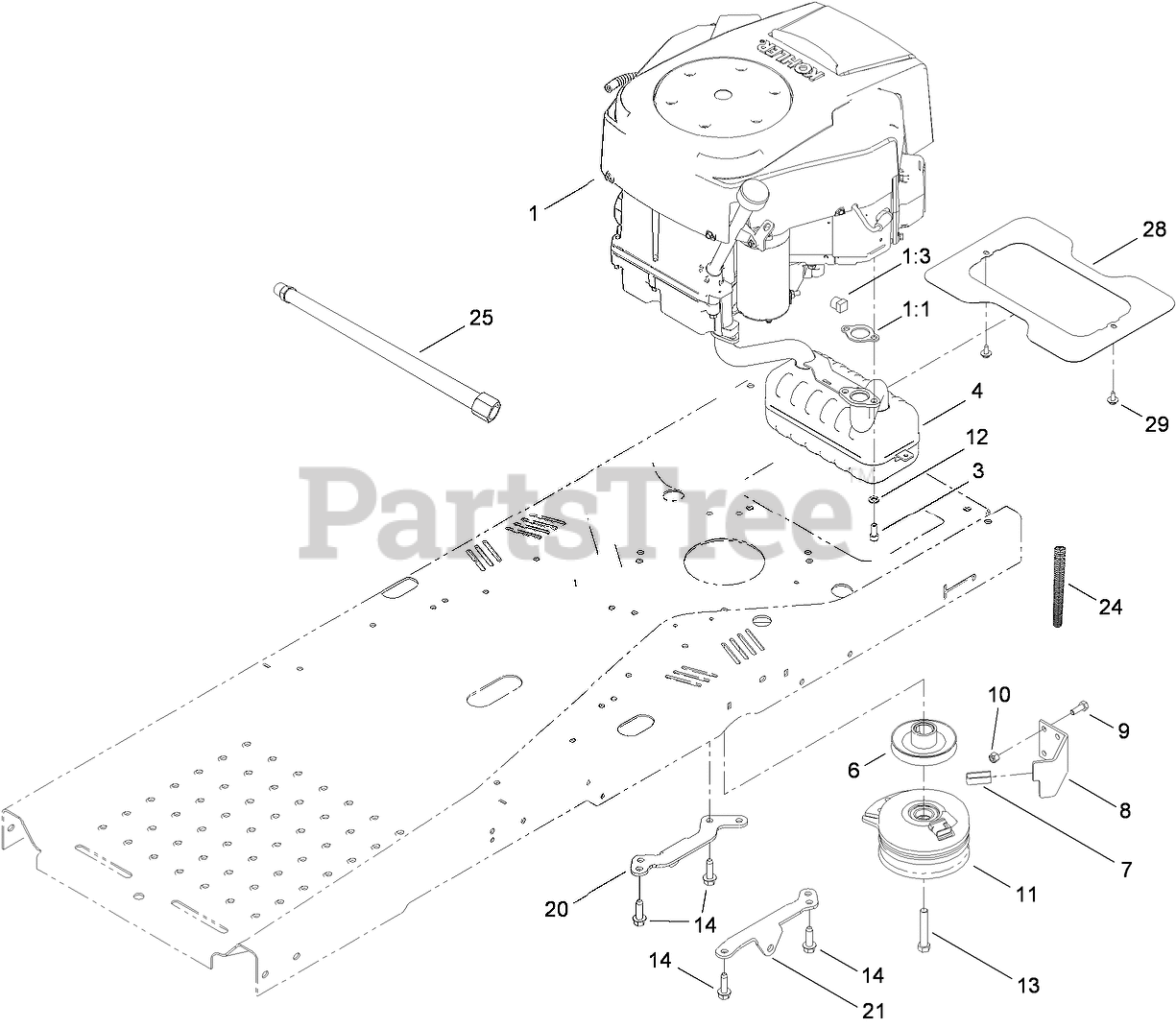

74375 (Z 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010) > Parts Diagrams (14) > ENGINE & CLUTCH ASSEMBLY

  • Title

1

ENGINE-KOHLER, SV730-0029

Part#

Note: Obtain parts from www.kohlerplus.com

Not available

1

ENGINE-KOHLER, SV730-0029

Part#

Note: Not serviced separately

Not available

110-6697

1:1

GASKET-EXHAUST

Part# 110-6697

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.82

281-2

1:3

PLUG-PIPE, SQH

Part# 281-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.87

3274-10

3

SCREW-HSH

Part# 3274-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.96

117-7462

4

MUFFLER-KOHLER

Part# 117-7462

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $185.55

114-1622

6

PULLEY-ENGINE

Part# 114-1622

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $89.48

112-4033

7

BUMPER-PAD

Part# 112-4033

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.71

110-6896

8

STOP-CLUTCH

Part# 110-6896

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.05

322-4

9

SCREW-HH

Part# 322-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.60

3296-29

10

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.98

110-6766

11

CLUTCH-ELECTRIC, PTO

Part# 110-6766

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $439.26

3253-4

12

WASHER-LOCK

Part# 3253-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.68

3212-11

13

SCREW-HH

Part# 3212-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.10

32144-109

14

SCREW-TAPTITE

Part# 32144-109

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.94

110-6798

20

SUPPORT-HYDRO, RH

Part# 110-6798

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $18.65

110-6799

21

SUPPORT-HYDRO, LH

Part# 110-6799

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $18.65

112-9849

24

TUBING-CONVOLUTED

Part# 112-9849

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.58

117-1261

25

HOSE-DRAIN, OIL

Part# 117-1261

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.60

114-8544-03

28

SHIELD-HEAT

Part# 114-8544-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.12

46-8560

29

SCREW-HHFTF

Part# 46-8560

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.61
