74376 (Z 5035) - Toro 50" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010) 50 INCH DECK ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

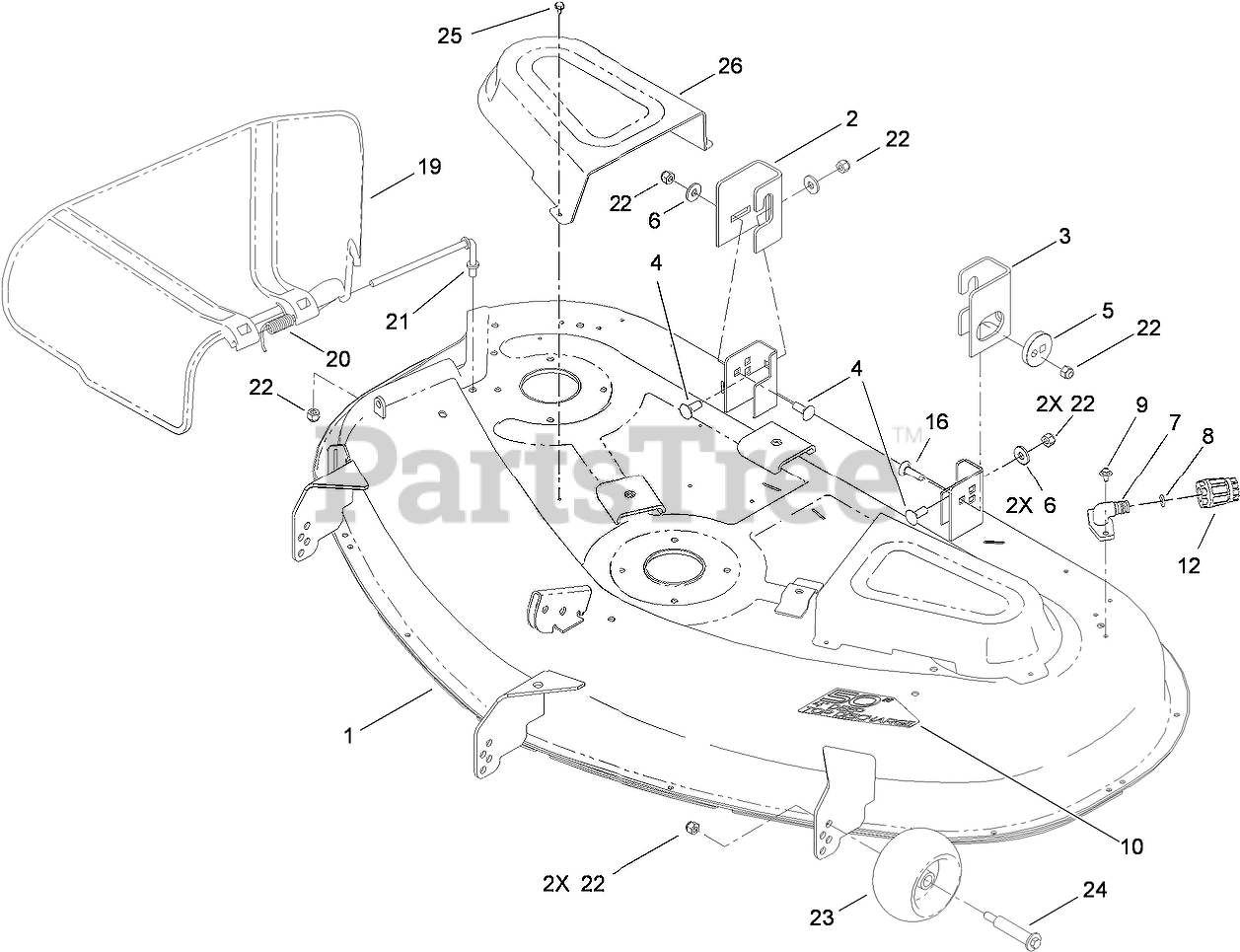

50 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 117-1291

50 INCH DECK ASM
(Superseded to 132-6928)

$1497.99

$

Usually ships in 3-6 days

0

2

Toro 108-7836

BRACKET-HANGER, RIGHT REAR

$25.99

$

In Stock, Qty 19

0

3

Toro 108-7838

BRACKET-HANGER, LEFT REAR

$25.99

$

In Stock, Qty 20+

0

4

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

5

Toro 112-3980

ECCENTRIC

$8.49

$

In Stock, only 2 left!

0

6

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

7

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 20+

0

8

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 13

0

9

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

10

Toro 117-1223

DECAL

$13.99

$

In Stock, only 4 left!

0

12

Toro 95-3270

CONNECTOR-HOSE

$25.99

$

In Stock, Qty 18

0

16

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

19

Toro 108-7895

DEFLECTOR

$71.99

$

In Stock, Qty 20+

0

20

Toro 110-6694

SPRING-TORSION

$6.99

$

In Stock, Qty 20+

0

21

Toro 112-3950

ROD-PIVOT

$20.99

$

In Stock, Qty 8

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

24

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

25

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 108-7890

COVER-BELT

$22.99

$

In Stock, Qty 20+

0
