74380 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

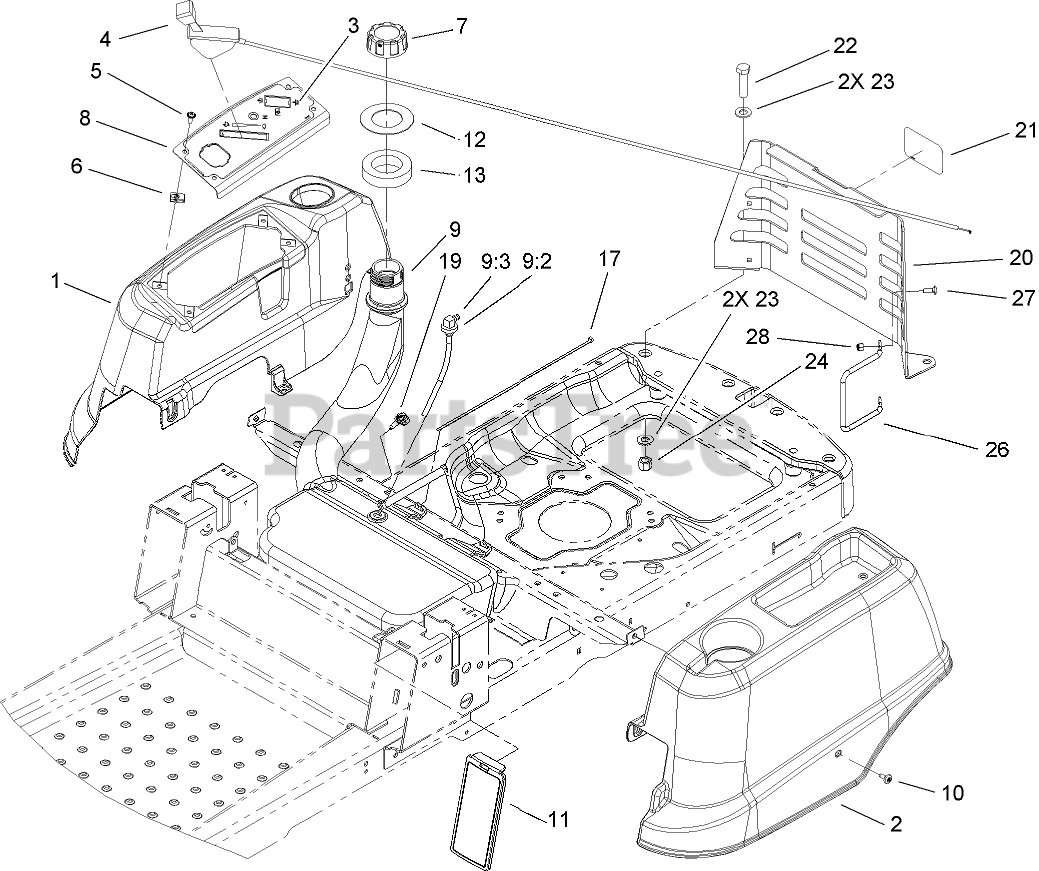

STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 110-1901

POD-RH
(Superseded to 117-1219)

$164.99

$

Usually ships in 3-6 days

0

2

Toro 110-1902

POD-LH
(Superseded to 117-1220)

$164.99

$

In Stock, Qty 6

0

3

Toro 110-6823

DECAL-PANEL, CONTROL
(Superseded to 115-2500)

$31.99

$

Usually ships in 3-6 days

0

4

Toro 104-3626

CABLE-THROTTLE

$63.99

$

In Stock, only 2 left!

0

5

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

7

Toro 93-7198

CAP-GAS

$17.99

$

In Stock, Qty 8

0

8

Toro 110-1927-03

PANEL-CONTROL

$18.99

$

Usually ships in 3-6 days

0

9

Toro 110-6890

FUEL TANK ASM

$223.99

$

In Stock, only 1 left!

0

9:2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

9:3

Toro 95-3970

FITTING-90 DEGREE

$72.99

$

In Stock, Qty 8

0

10

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 20+

0

11

Toro 110-6786

COVER-CONTROL

$15.99

$

In Stock, Qty 8

0

12

Toro 112-9760

WASHER-RUBBER

$5.99

$

In Stock, Qty 17

0

13

Toro 55-9310

SEAL-FOAM

$

$

Not available

17

Toro 100-9064

TIE-CABLE

$1.99

$

In Stock, Qty 5

0

19

Toro 32180-037

CLIP-HARNESS

$1.99

$

In Stock, Qty 6

0

20

Toro 110-6685-03

SUPPORT-COVER, REAR

$

$

Not available

21

Toro 99-2385

DECAL

$5.49

$

In Stock, Qty 11

0

22

Toro 325-8

SCREW-HH

$5.99

$

In Stock, Qty 12

0

23

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 112-4022

GUARD-MUFFLER

$

$

Not available

27

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
