74380 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV590-0023 Parts Diagram

42" TimeCutter Zero-Turn Mower

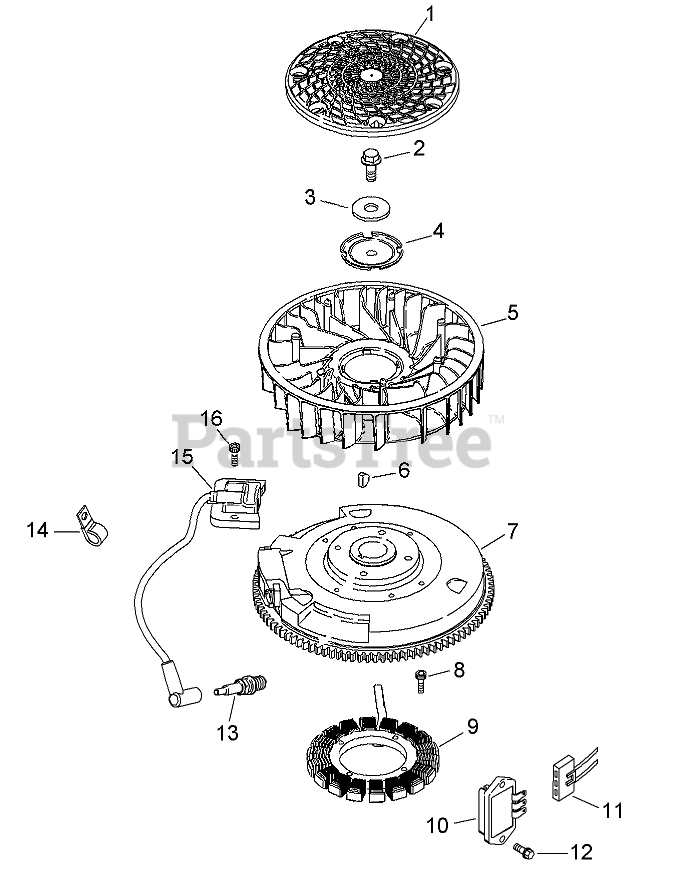

IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV590-0023 Parts Diagram

  • Title

1

Kohler 20 162 02-S

Screen-Grass

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, Qty 5

0

2

Kohler 25 086 125-S

SCREW-FLANGE, HEX
(Superseded to 25 086 362-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

3

Kohler 25 468 09-S

WASHER-FLAT

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 10

0

4

Kohler 20 146 05-S

PLATE-MOUNTING, FAN

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 8

0

5

Kohler 20 157 01-S

Fan

Note: Obtain parts from www.kohlerplus.com

$24.99

$

In Stock, Qty 9

0

6

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

7

Kohler 20 025 35-S

FLYWHEEL ASM
(Superseded to 20 025 44-S)

Note: Obtain parts from www.kohlerplus.com

$251.99

$

In Stock, only 1 left!

0

8

Kohler 20 086 22-S

SCREW-DRIVE, TRX HD
(Superseded to M-548025-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 12

0

9

Kohler 237878-S

15 AMP STATOR KIT

Note: Obtain parts from www.kohlerplus.com

$149.99

$

In Stock, Qty 20+

0

10

Kohler 41 403 10-S

RECTIFIER/REGULATOR
(Superseded to 25 403 37-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, Qty 18

0

12

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 20+

0

13

Kohler 25 132 14-S

SPARK PLUG (R F I)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

14

Kohler 20 154 04-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

15

Kohler 20 584 03-S

MODULE-IGNITION (C D I FIXED)

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 20+

0

16

Kohler M-561025-S

Screw-Socket, Hex (M5x0.8x25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

Kohler 20 176 07-S

HARNESS-WIRING
(Superseded to 20 176 20-S)

Note: Not illustrated

$33.99

$

Usually ships in 2-5 days

0

Kohler 20 176 07-S

HARNESS-WIRING
(Superseded to 20 176 20-S)

Note: Obtain parts from www.kohlerplus.com

$33.99

$

Usually ships in 2-5 days

0

Kohler 25 452 01-S

Terminal

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 1 left!

0

Kohler 25 452 01-S

Terminal

Note: Not illustrated

$5.49

$

In Stock, only 1 left!

0
