74380 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000001 - 290000325) (2009) HEAD, VALVE AND BREATHER ASSEMBLY KOHLER SV590-0213 Parts Diagram

42" TimeCutter Zero-Turn Mower

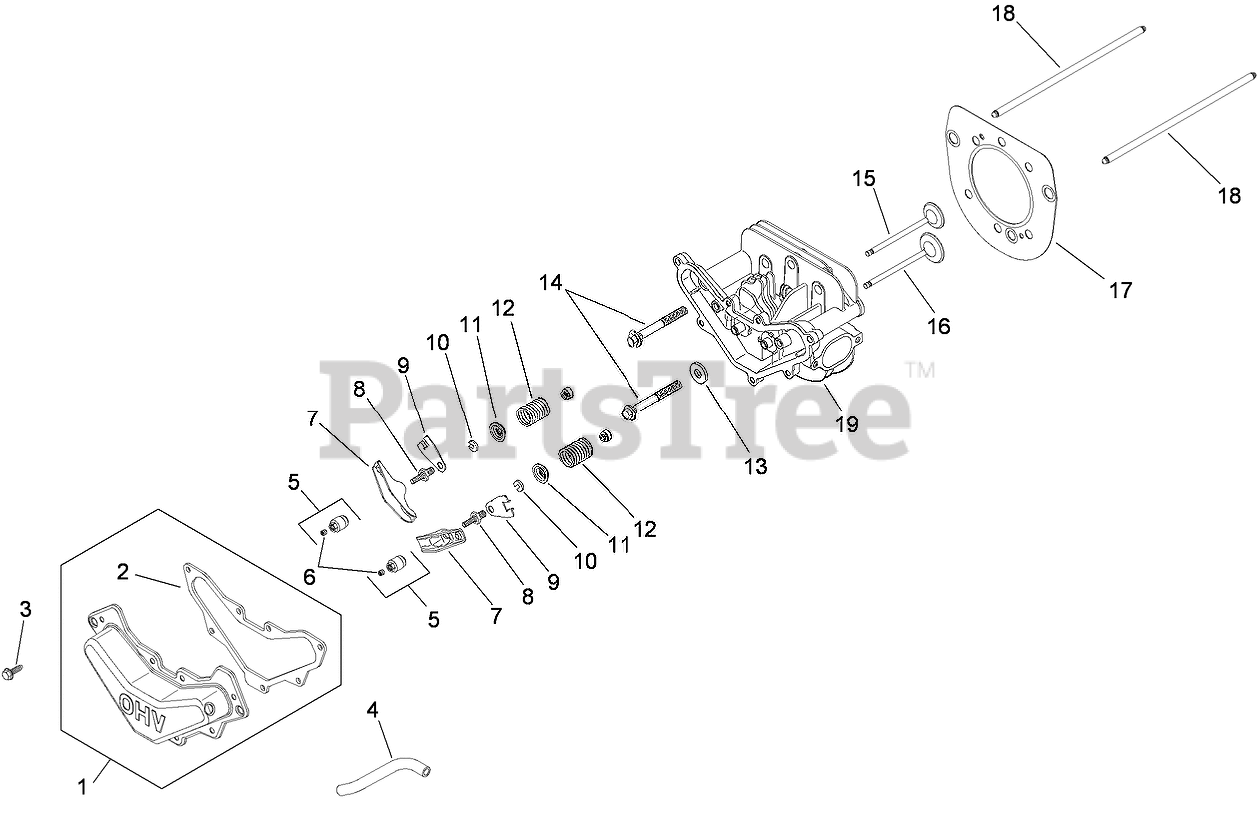

HEAD, VALVE AND BREATHER ASSEMBLY KOHLER SV590-0213 Parts Diagram

  • Title

1

Kohler 20 096 07-S

Valve Cover Kit (INCLUDES REF 2)
(Superseded to 20 096 14-S)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, Qty 14

0

2

Kohler 20 041 13-S

Gasket-cover, valve

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 20+

0

3

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

4

Kohler 20 326 20-S

HOSE-BREATHER
(Superseded to 20 094 11-S)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 1 left!

0

5

Kohler 20 599 03-S

ROCKER PIVOT ASM (INCLUDES REF 6)
(Superseded to 20 599 04-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 20+

0

6

Kohler 20 086 04-S

Screw-Set

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0

7

Kohler 20 186 01-S

Arm-Rocker

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, Qty 19

0

8

Kohler 20 072 08-S

STUD-ROCKER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 16

0

9

Kohler 20 146 03-S

Plate-Guide, Push Rod

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

10

Kohler 20 062 01-S

Lock-Retainer

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

11

Kohler 20 173 01-S

Cap-Spring, Valve

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

12

Kohler 20 089 03-S

Spring-Valve

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 2 left!

0

13

Kohler 12 468 05-S

Washer-Flat (1/2)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

14

Kohler 20 086 02-S

Screw-Flange, Hex (M10x1.5x37)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 20+

0

15

Kohler 20 016 01-S

Valve-Exhaust

Note: Obtain parts from www.kohlerplus.com

$34.99

$

In Stock, only 1 left!

0

16

Kohler 20 017 01-S

Valve-Intake

Note: Obtain parts from www.kohlerplus.com

$28.99

$

In Stock, only 1 left!

0

17

Kohler 20 841 01-S

CYLINDER HEAD GASKET KIT (INCLUDES REF 2, 13, 14, and 12 041 01-S, 12 041 02-S, 20 041 12-S, 20 041 17-S, 20 041 18-S, 25 086 87-S, X-21-1-S)

Note: Obtain parts from www.kohlerplus.com

$37.99

$

In Stock, Qty 5

0

18

Kohler 20 411 04-S

Rod-Push
(Superseded to 20 411 05-S)

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 11

0

19

Kohler 20 318 11-S

CYLINDER HEAD KIT (INCLUDES 25 086 87-S, X-21-1-S)
(Superseded to 20 318 14-S)

Note: Obtain parts from www.kohlerplus.com

$263.99

$

In Stock, only 1 left!

0

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

Kohler 12 041 01-S

Gasket-Carburetor

Note: Not illustrated

$2.49

$

In Stock, Qty 6

0

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Not illustrated

$2.49

$

In Stock, Qty 18

0

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 18

0

Kohler 20 041 12-S

Gasket-Exhaust

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 20+

0

Kohler 20 041 12-S

Gasket-Exhaust

Note: Not illustrated

$4.99

$

In Stock, Qty 20+

0

Kohler 20 041 18-S

GASKET-DEFLECTOR, HEAT

Note: Not illustrated

$6.99

$

In Stock, Qty 7

0

Kohler 20 041 18-S

GASKET-DEFLECTOR, HEAT

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 7

0

Kohler 20 041 17-S

GASKET-DEFLECTOR, HEAT

Note: Not illustrated

$7.49

$

In Stock, Qty 9

0

Kohler 20 041 17-S

GASKET-DEFLECTOR, HEAT

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 9

0

Kohler 20 599 04-S

ROCKER PIVOT ASM (INCLUDES REF 6)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 20+

0

Kohler 20 599 04-S

ROCKER PIVOT ASM (INCLUDES REF 6)

Note: Not illustrated

$6.49

$

In Stock, Qty 20+

0

Kohler 25 086 87-S

CAPSCREW-SOCKET, HEX HEAD

Note: Not illustrated

$3.49

$

In Stock, only 3 left!

0

Kohler 25 086 87-S

CAPSCREW-SOCKET, HEX HEAD

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 3 left!

0

Kohler X-21-1-S

WASHER-LOCK, SPRING (5/16)

Note: Not illustrated

$3.99

$

Usually ships in 2-5 days

0

Kohler X-21-1-S

WASHER-LOCK, SPRING (5/16)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days
