74387 (ZS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 311000001 - 311999999) (2011) SEAT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

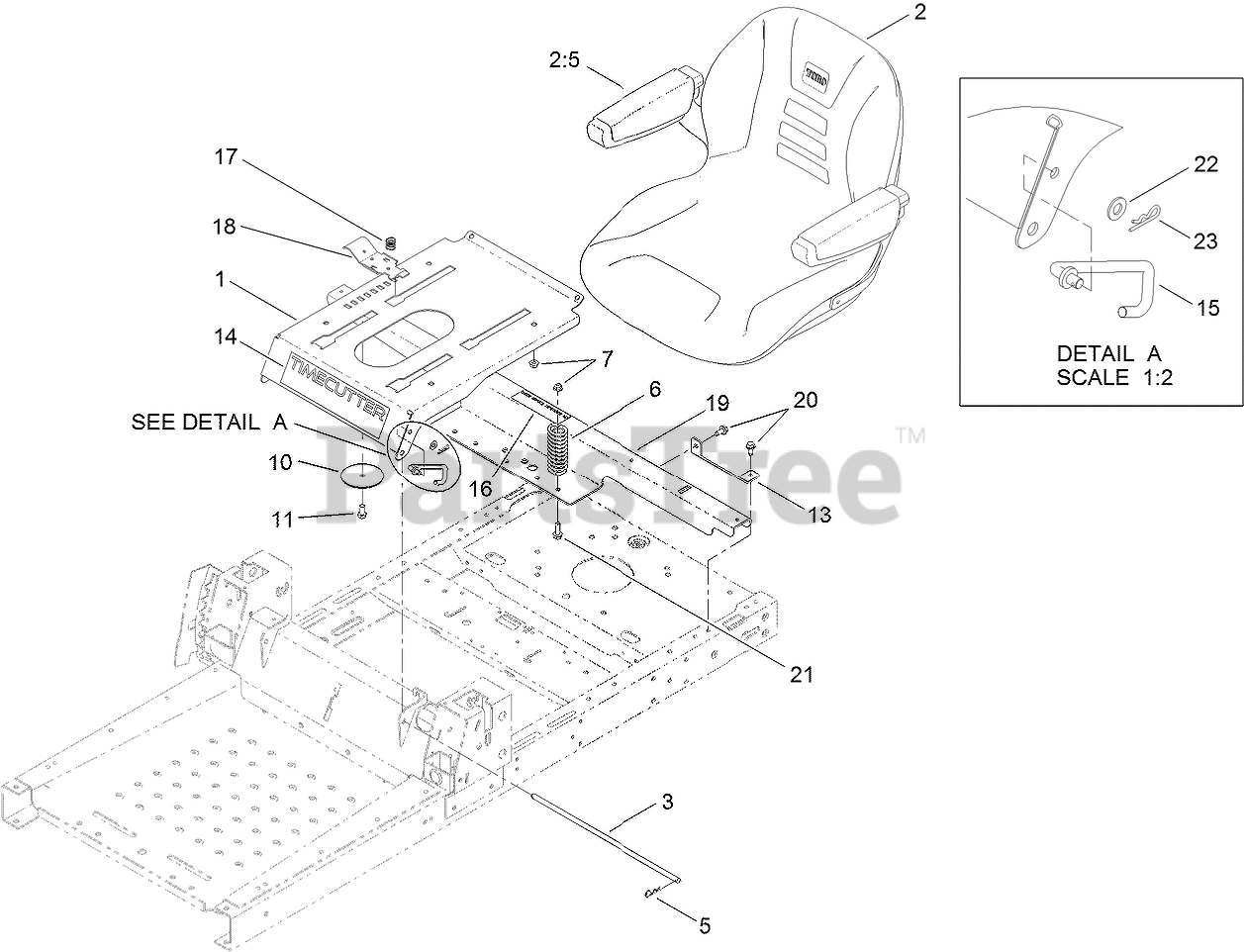

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3390-01

PAN-SEAT

$106.99

$

Usually ships in 3-6 days

0

2

Toro 115-5053

18 INCH SEAT ASM

$897.99

$

Usually ships in 3-6 days

0

2:5

Toro 119-3307

ARMREST KIT

$179.99

$

Usually ships in 3-6 days

0

3

Toro 115-4966

ROD-STOP

$20.99

$

Usually ships in 3-6 days

0

5

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

6

Toro 92-7054

SPRING-COMPRESSION

$22.99

$

In Stock, only 4 left!

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 117-5307

WASHER-SEAT

$8.49

$

Usually ships in 3-6 days

0

11

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

13

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

14

Toro 120-5452

DECAL-TIMECUTTER

$

$

Not available

15

Toro 119-8972

STOP-SEAT

$8.49

$

Usually ships in 3-6 days

0

16

Toro 106-8717

DECAL-SERVICE, CE

$8.49

$

Usually ships in 3-6 days

0

17

Toro 115-9624

SPRING-COMPRESSION

$1.99

$

In Stock, only 1 left!

0

18

Toro 115-9623

LATCH-SEAT

$20.99

$

In Stock, only 1 left!

0

19

Toro 119-3414-03

SUPPORT-POD
(Superseded to 131-1039-03)

$132.99

$

Usually ships in 3-6 days

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0
