74391 (Z 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) Oil Pan and Lubrication Assembly Kohler SV610S-0022 Parts Diagram

50" TimeCutter Zero-Turn Mower

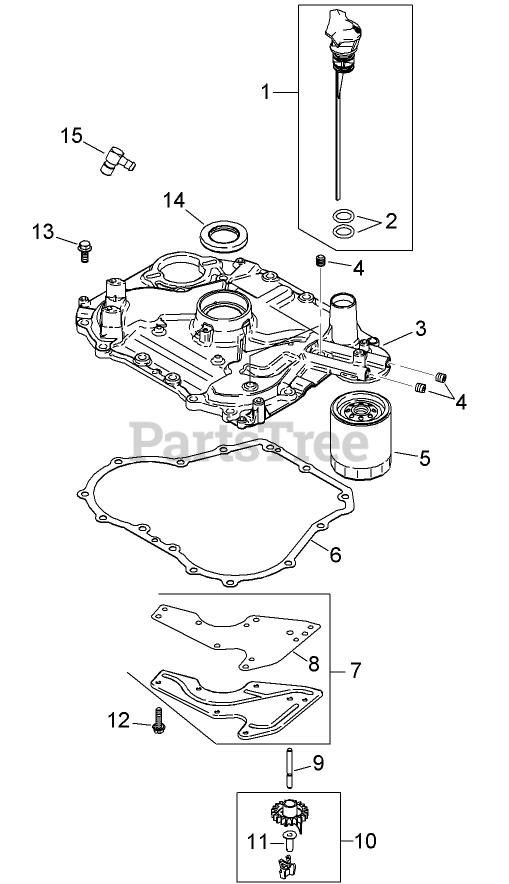

Oil Pan and Lubrication Assembly Kohler SV610S-0022 Parts Diagram

  • Title

1

Toro 20 040 02-S

DIPSTICK BLADE KIT (YELLOW) (INCLUDES 2)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 20 153 01-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro 20 009 21-S

CLOSURE PLATE ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 12 050 01-S

See Supercession: 98020
(Superseded to 98020)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 20+

0

6

Toro 20 041 01-S

Gasket-Plate, Closure

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 20 096 02-S

Oil Passage Cover Kit (Includes 8)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro 20 041 02-S

Gasket-Passage, Oil

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro 20 144 03-S

Shaft-Gear, Governor

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 20 310 01-S

GOVERNOR GEAR ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro M-545013-S

SCREW-FLG, THD FRM (M5X0.8X13)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro 25 086 127-S

SCREW-FLANGE, HEX (1/2 DOG POINT)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

14

Toro 20 032 01-S

Seal-Oil

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

15

Toro 25 155 02-S

Connector-Hose, 90 Deg

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable
