74391 (Z 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) STARTING SYSTEM ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

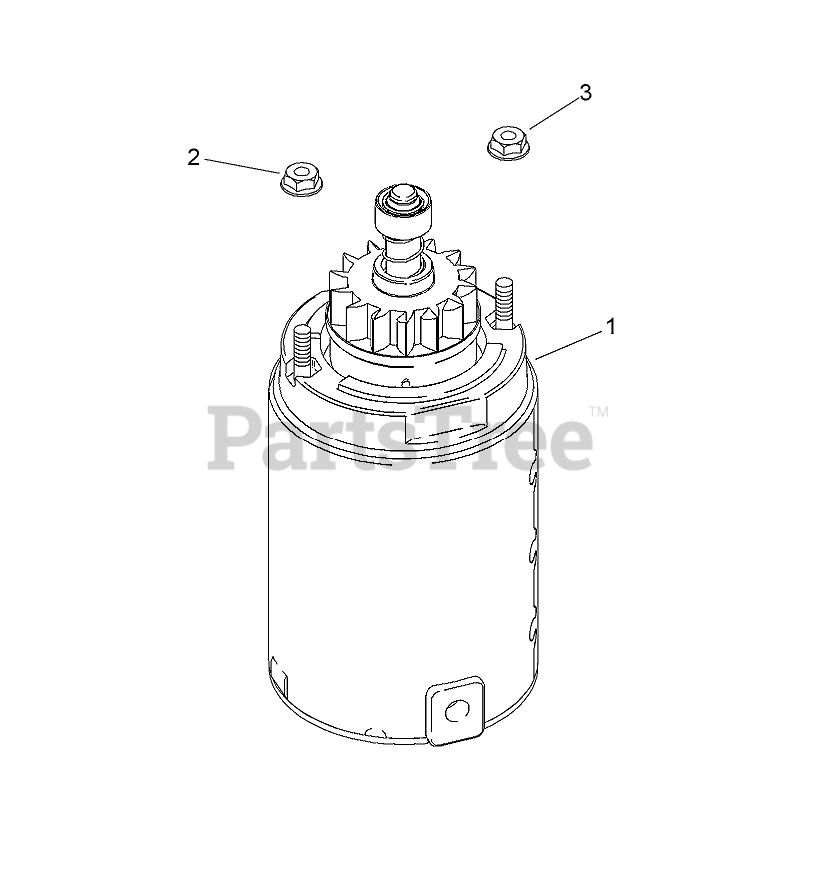

STARTING SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler 20 098 05-S

STARTER ASM
(Superseded to 20 098 11-S)

Note: Obtain parts from www.kohlerplus.com

$124.99

$

In Stock, Qty 20+

0

2

Kohler 25 100 31-S

Nut-Flange, Hex Serrated (10-24)
(Superseded to 25 100 56-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

3

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

Kohler 12 221 02-S

Brush Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 12 221 02-S

Brush Kit

Note: Not illustrated

$

$

Not available

Kohler 20 211 02-S

BOLT-THRU

Note: Not illustrated

$

$

Not available

Kohler 20 211 02-S

BOLT-THRU

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 20 227 01-S

CAP-END, DRIVE (J E)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 20 227 01-S

CAP-END, DRIVE (J E)

Note: Not illustrated

$

$

Not available

Kohler 20 755 12-S

DRIVE KIT (J E)

Note: Not illustrated

$

$

Not available

Kohler 20 755 12-S

DRIVE KIT (J E)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available
