74395 (ZS 5000 TF) - Toro 50" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

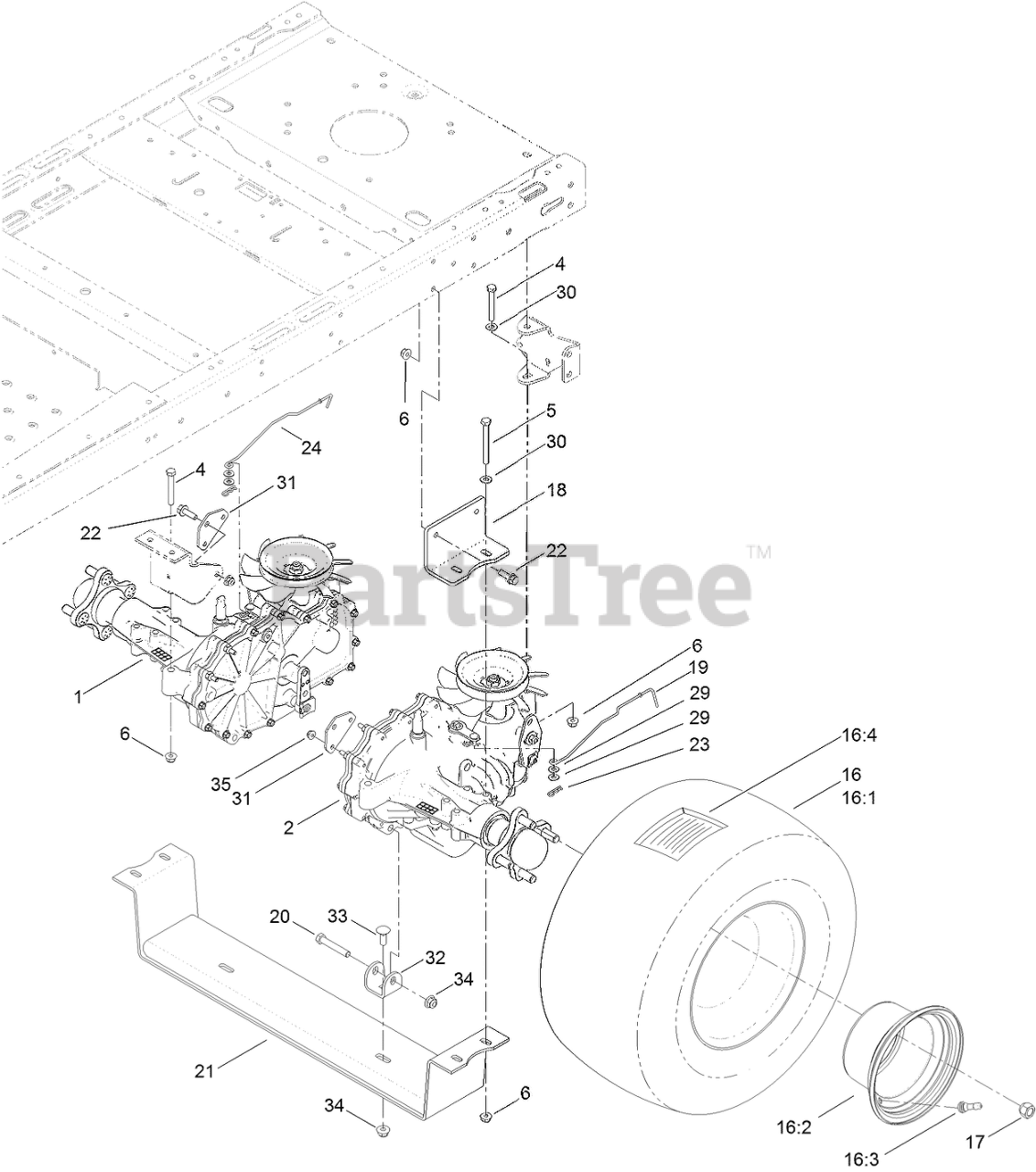

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3361

RH HYDRO TRANSAXLE ASM
(Superseded to 140-5191)

$1597.99

$

Usually ships in 3-6 days

0

2

Toro 119-3360

LH HYDRO TRANSAXLE ASM
(Superseded to 140-5190)

$1759.99

$

Usually ships in 3-6 days

0

4

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

5

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 109-5268

4 PLY WHEEL AND TIRE ASM

$317.99

$

Usually ships in 3-6 days

0

16:1

Toro 109-5270

WHEEL

$130.99

$

Usually ships in 3-6 days

0

16:2

Toro 109-5269

TIRE-4 PLY

$221.99

$

Usually ships in 3-6 days

0

16:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.49

$

In Stock, Qty 7

0

16:4

Toro 93-3893

TUBE-INNER

$77.99

$

Usually ships in 3-6 days

0

17

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 1 left!

0

18

Toro 121-0745-01

MOUNT-HYDRO

$36.99

$

Usually ships in 3-6 days

0

19

Toro 121-2965

ROD-BYPASS, LH

$10.99

$

Usually ships in 3-6 days

0

20

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 121-0748-01

MOUNT-HYDRO

$186.99

$

Usually ships in 3-6 days

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

24

Toro 120-7968

ROD-BYPASS, RH

$10.99

$

Usually ships in 3-6 days

0

29

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Toro 120-7918

PLATE-HYDRO MOUNT

$17.99

$

Usually ships in 3-6 days

0

32

Toro 121-0749

TAB-HYDRO

$12.99

$

Usually ships in 3-6 days

0

33

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

34

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
