74399 (Z 5020) - Toro 50" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) Fuel System Assembly Kohler SV720-0032 Parts Diagram

50" TimeCutter Zero-Turn Mower

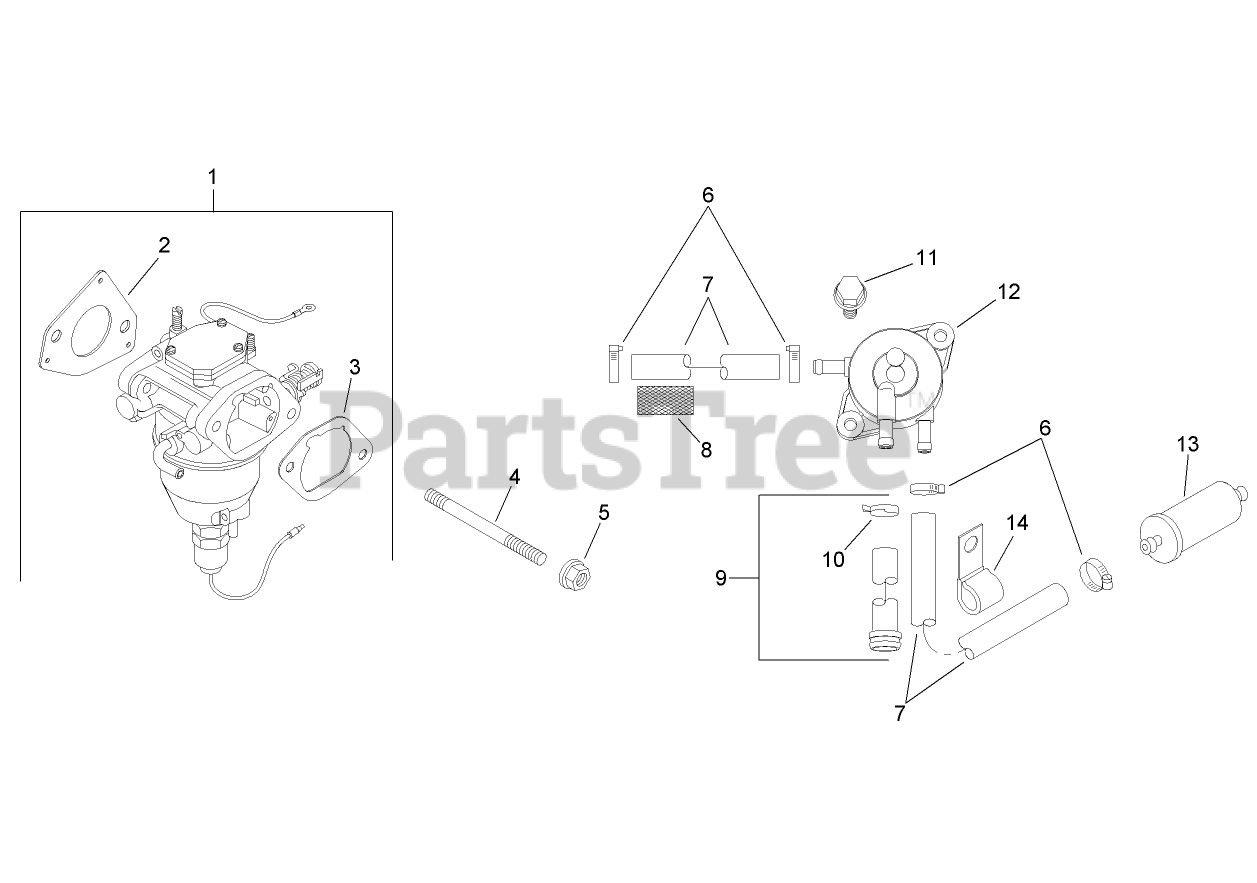

Fuel System Assembly Kohler SV720-0032 Parts Diagram

  • Title

1

Toro 32 853 07-S

CARBURETOR KIT W/GASKETS (INCLUDES 2-3)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 24 041 52-S

GASKET-CARBURETOR

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro M-629105-S

STUD (M6X1.0X106)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 25 237 14-S

CLAMP-HOSE, SPRING (1/2)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 25 111 34-S

LINE-FUEL (24-CUT TO LENGTH)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro 25 431 10-S

SLEEVE-ABRASION, ANTI

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro 32 326 02-S

HOSE-FUEL PUMP W/CLAMP (INCLUDES 10)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 25 237 01-S

CLAMP-HOSE

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro 25 050 22-S

See Supercession: 98021
(Superseded to 98021)

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, Qty 20+

0

14

Toro 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro X-25-63-S

WASHER-FLAT (1/4)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro X-25-63-S

WASHER-FLAT (1/4)

Note: Not illustrated

$

$

Currently unavailable

Toro 24 757 18-S

Overhaul w/gaskets Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 24 757 18-S

Overhaul w/gaskets Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 24 757 19-S

Choke Service Repair Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 24 757 19-S

Choke Service Repair Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 24 757 20-S

Gasket Service Repair Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 24 757 20-S

Gasket Service Repair Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Not illustrated

$

$

Currently unavailable
