74401 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

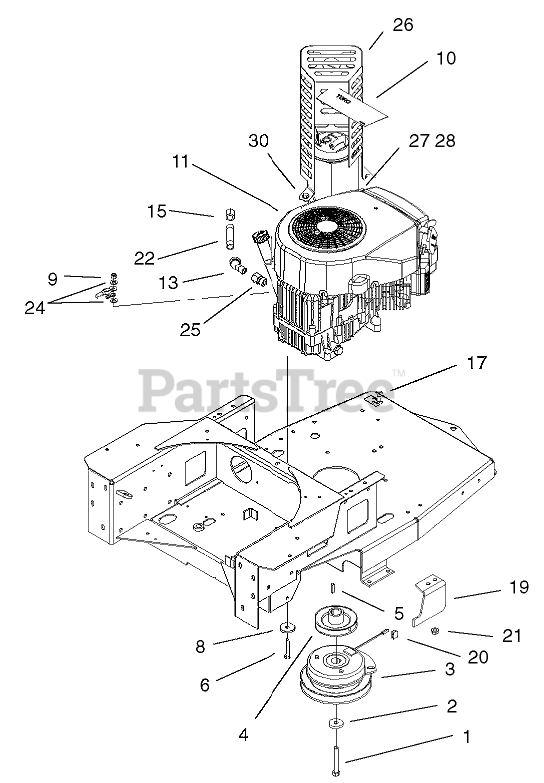

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-12

SCREW-HH

$3.49

$

In Stock, Qty 9

0

2

Toro 112843

WASHER

$3.49

$

In Stock, Qty 19

0

3

Toro 104-3624

CLUTCH
(Superseded to 109-7035)

$485.99

$

Usually ships in 3-6 days

0

4

Toro 100-7314

PUMP DRIVE PULLEY ASM

$192.99

$

Usually ships in 3-6 days

0

5

Toro 5-7280

KEY

$5.49

$

In Stock, only 2 left!

0

6

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

8

Toro 62-7190

SPACER-STEEL

$4.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 105-1862

Decal-Engine

$

$

Not available

11

Engine-Kawasaki, Fh500v-As36

Note: Not serviced separately

$

$

Not available

13

Toro 2811-3

ELBOW

$

$

Not available

15

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

17

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

19

Toro 104-3613-03

STOP-CLUTCH

$

$

Not available

20

Toro 98-5023

BUMPER

$6.99

$

Usually ships in 3-6 days

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 105-1936

PIPE-NIPPLE

$

$

Not available

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

26

Toro 105-7013-03

Guard-Muffler
(Superseded to 110-1888)

$

$

Not available

27

Toro 100-6467

MUFFLER

$

$

Not available

28

Toro 100-6468

Clamp-Muffler

$0.99

$

Usually ships in 3-6 days

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
