74402 (14-38 Z) - Toro 38" TimeCutter Zero-Turn Mower (SN: 240000001 - 240999999) (2004) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

38" TimeCutter Zero-Turn Mower

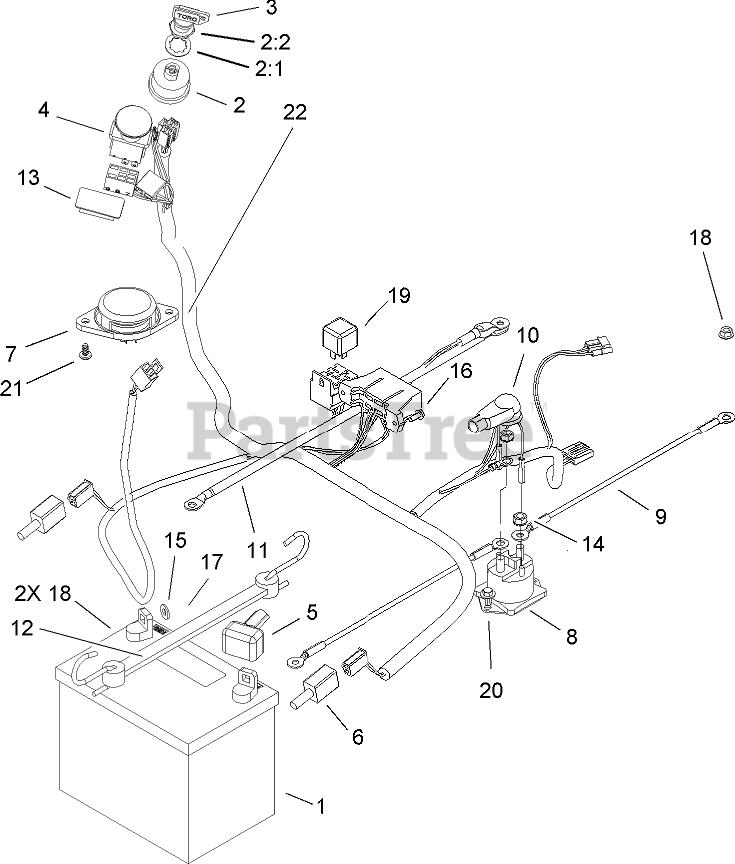

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2491

BATTERY
(Superseded to 104-8162)

$

$

Not available

2

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$41.99

$

In Stock, Qty 20+

0

2:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 8

0

2:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

3

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

4

Toro 95-7489

SWITCH-PTO

$37.99

$

In Stock, only 2 left!

0

5

Toro 28-8080

BOOT-TERMINAL

$26.99

$

Usually ships in 3-6 days

0

6

Toro 106-2216

SWITCH

$18.99

$

In Stock, only 2 left!

0

7

Toro 105-6959

Switch-Seat

$

$

Not available

8

Toro 106-8245

SOLENOID-STARTER

$65.99

$

In Stock, only 2 left!

0

9

Toro 56-7670

WIRE ASM

$32.99

$

In Stock, only 2 left!

0

10

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$8.49

$

Usually ships in 3-6 days

0

11

Toro 95-7654

CABLE-NEGATIVE, BLACK

$54.99

$

Usually ships in 3-6 days

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$25.99

$

In Stock, only 2 left!

0

13

Toro 99-7420

PLUG-HOLE

$8.99

$

Usually ships in 3-6 days

0

14

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

16

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 19

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

0

19

Toro 98-7249

RELAY

$23.99

$

In Stock, Qty 13

0

20

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 105-6968

SCREW-SEAT, SWITCH

$3.99

$

Usually ships in 3-6 days

0

22

Toro 107-2500

HARNESS-WIRE, 9 AMP

$355.99

$

Usually ships in 3-6 days

0
