74402 (Z 380) - Toro 38" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) 38 Inch Deck Assembly Parts Diagram

38" TimeCutter Zero-Turn Mower

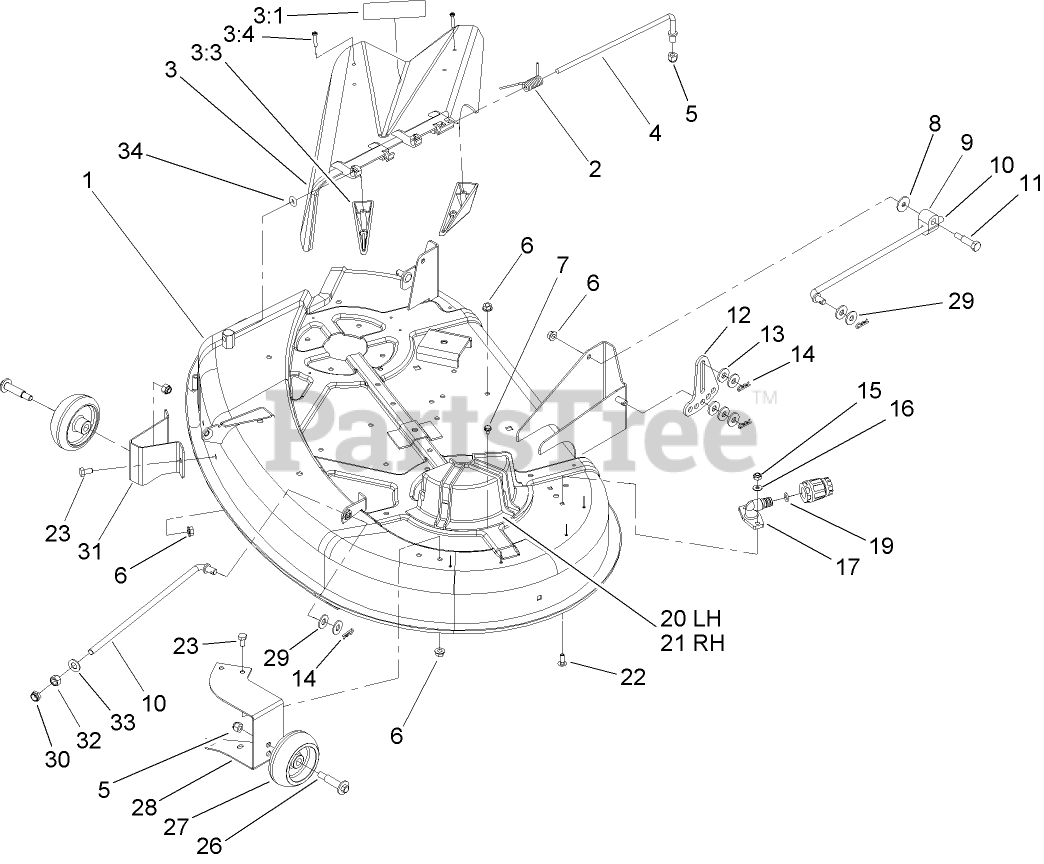

38 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 107-9139

38 INCH DECK ASM

$

$

Not available

2

Toro 57-6950

SPRING

$29.99

$

In Stock, only 2 left!

0

3

Toro 93-7695

DEFLECTOR ASM

$103.99

$

In Stock, only 1 left!

0

3:1

Toro 93-7010

DECAL-DANGER

$13.99

$

Usually ships in 3-6 days

0

3:3

Toro 93-7696

KICKER

$15.99

$

In Stock, only 2 left!

0

3:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

4

Toro 95-1661

ROD-PIVOT

$22.99

$

In Stock, only 3 left!

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

8

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 6

0

9

Toro 88-4230

TRUNNION-HOC

$16.99

$

In Stock, only 2 left!

0

10

Toro 105-3437

ROD-HANGER

$34.99

$

In Stock, only 2 left!

0

11

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, Qty 20+

0

12

Toro 88-5570-03

LINK-ADJUSTING, HOC

$16.99

$

Usually ships in 3-6 days

0

13

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 13

0

14

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

15

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, Qty 8

0

16

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

17

Toro 95-2747

See Supercession: 133-9289
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 6

0

19

Toro 46-6290

O-RING

$2.99

$

In Stock, only 2 left!

0

20

Toro 88-4030

GUIDE-BELT, LH

$45.99

$

In Stock, only 2 left!

0

21

Toro 88-4020

GUIDE-BELT, RH

$45.99

$

Usually ships in 3-6 days

0

22

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

23

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

26

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 2 left!

0

27

Toro 701756

WHEEL-GAGE

$8.99

$

In Stock, Qty 12

0

28

Toro 107-1717-01

BRACKET-WHEEL, GAGE (FRONT, LH)

$93.99

$

Usually ships in 3-6 days

0

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 3 left!

0

31

Toro 106-8704-01

BRACKET-WHEEL, GAGE (FRONT, RH)

$69.99

$

Usually ships in 3-6 days

0

32

Toro 3219-4

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

33

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

34

Toro 106-8745

O-RING

$1.99

$

In Stock, only 2 left!

0
