74403 (16-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) HOUSING ASSEMBLY RH HYDROSTAT NO. 105-3491 Parts Diagram

42" TimeCutter Zero-Turn Mower

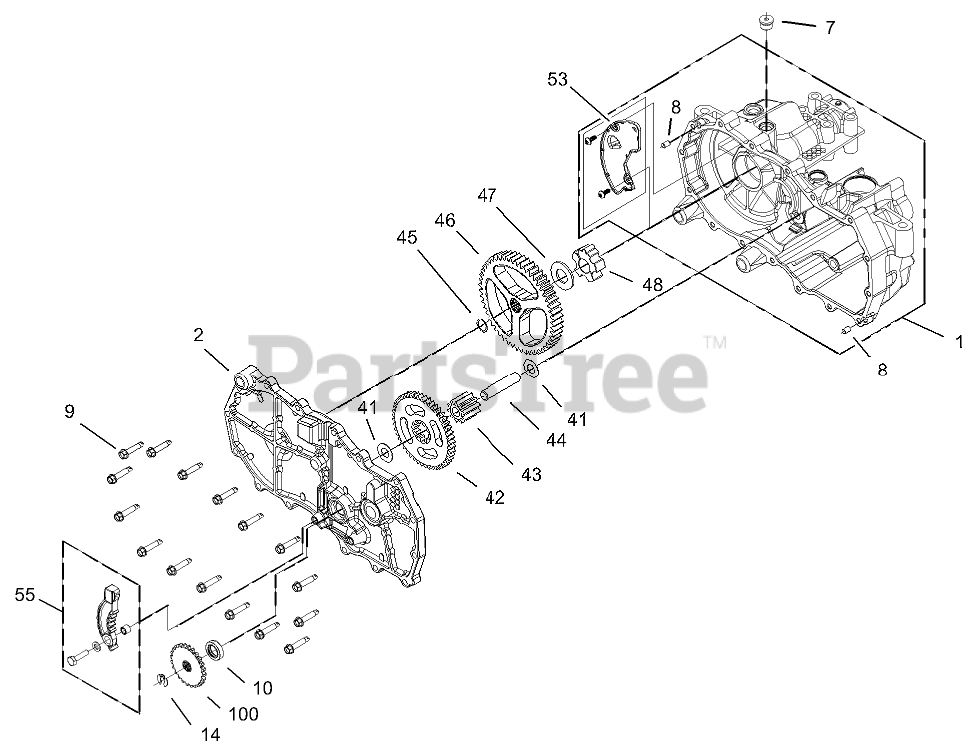

HOUSING ASSEMBLY RH HYDROSTAT NO. 105-3491 Parts Diagram

  • Title

1

Toro 106-8674

MAIN HOUSING ASM

$909.99

$

Usually ships in 3-6 days

0

2

Toro 106-8675

SIDE ASM

$740.99

$

Usually ships in 3-6 days

0

7

Toro 104-2189

PLUG-THREAD, STRAIGHT

$28.99

$

In Stock, only 2 left!

0

8

Toro 9004800-2506

PIN-HYDROGEAR
(Superseded to 104-2170)

$9.49

$

Usually ships in 3-6 days

0

9

Toro 104-5305

SCREW-HHF
(Superseded to 117-5359)

$3.49

$

Usually ships in 3-6 days

0

10

Toro 104-5347

SEAL-OIL

$26.99

$

In Stock, only 2 left!

0

14

Toro 106-8677

RING-RETAINING, EXTERNAL

$9.49

$

In Stock, only 2 left!

0

41

Toro 94-1933

WASHER

$6.99

$

Usually ships in 3-6 days

0

42

Toro 104-5317

GEAR-10T/48T

$205.99

$

Usually ships in 3-6 days

0

43

Toro 104-5318

GEAR-JACKSHAFT, 10T

$93.99

$

Usually ships in 3-6 days

0

44

Toro 104-5329

PIN-JACKSHAFT

$119.99

$

Usually ships in 3-6 days

0

45

Toro 104-5328

RING-RETAINING, SPIRAL

$12.99

$

Usually ships in 3-6 days

0

46

Toro 106-8684

GEAR-BULL, 52T

$

$

Not available

47

Toro 94-1943

WASHER

$7.49

$

Usually ships in 3-6 days

0

48

Toro 104-5320

BEARING-SLEEVE

$

$

Not available

52

Toro 106-8686

SEAL KIT

Note: Not illustrated

$232.99

$

In Stock, only 1 left!

0

53

Toro 106-8687

EXPANSION PLATE KIT

$78.99

$

Usually ships in 3-6 days

0

55

Toro 106-8688

BRAKE ARM KIT

$45.99

$

Usually ships in 3-6 days

0

58

Toro 104-2147

SEALANT

Note: Not illustrated

$125.99

$

Usually ships in 3-6 days

0

100

Toro 106-8694

DISC-BRAKE, COG

$63.99

$

In Stock, Qty 5

0
