74405 (18-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 240000001 - 240999999) (2004) 52 Inch Deck Assembly Parts Diagram

52" TimeCutter Zero-Turn Mower

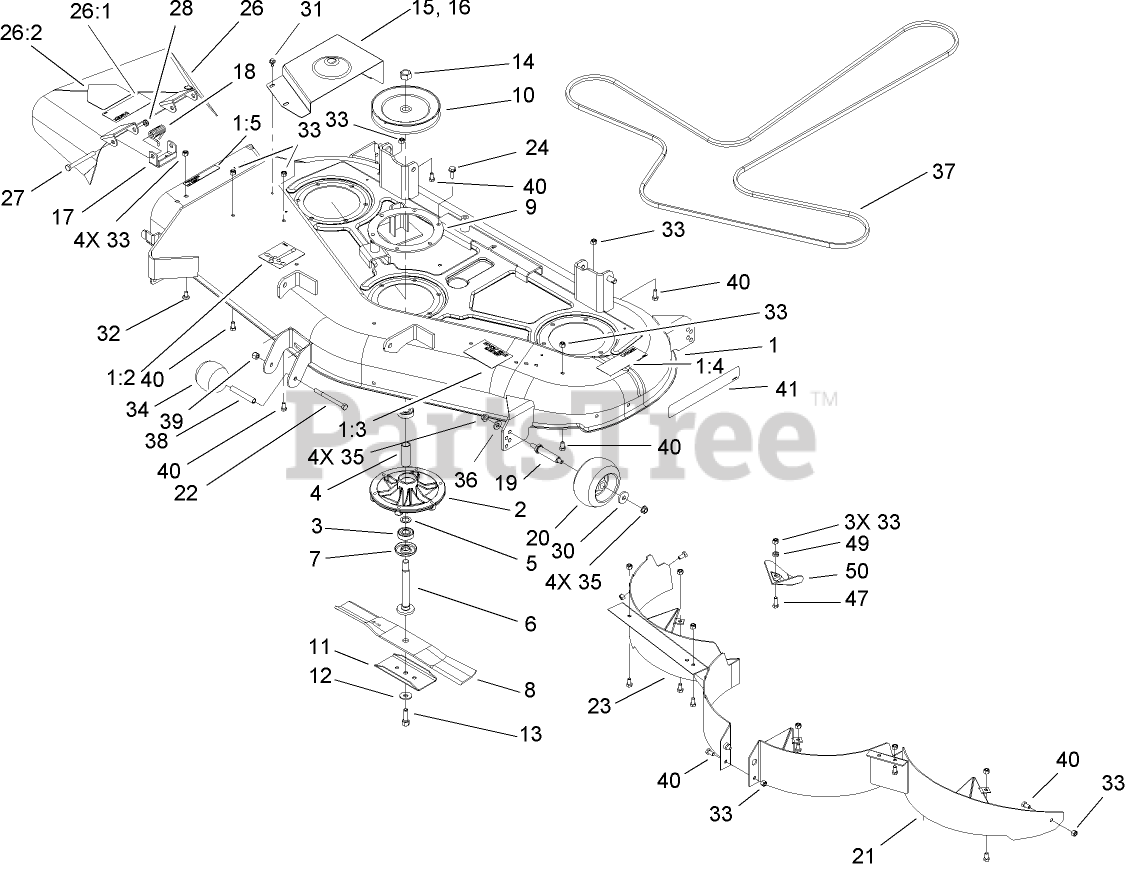

52 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 106-7021

DISCONTINUED
(Superseded to 108-8573)

$

$

Not available

1:2

Toro 99-3943

DECAL-ROUTING, BELT

$8.49

$

In Stock, only 1 left!

0

1:3

Toro 99-8939

DECAL-ANTI SCALP

$29.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-7317

DECAL-DANGER

$

$

Not available

1:5

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 17

0

2

Toro 107-1739

HOUSING-SPINDLE

$98.99

$

In Stock, only 2 left!

0

3

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

4

Toro 62-3661

SPACER

$17.99

$

In Stock, Qty 20+

0

5

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 18

0

6

Toro 80-4341

SHAFT-SPINDLE

$56.99

$

In Stock, only 2 left!

0

7

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 16

0

8

Toro 107-1742-03

BLADE-RECYCLER

$45.99

$

In Stock, only 1 left!

0

9

Toro 107-1743-03

RING-SUPPORT, DECK

$

$

Not available

10

Toro 107-1740

PULLEY AND HUB ASM

$160.99

$

Usually ships in 3-6 days

0

11

Toro 80-0510-03

STIFFENER-BLADE

$18.99

$

In Stock, Qty 5

0

12

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 12

0

14

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

15

Toro 104-3685-01

DISCONTINUED

$

$

Not available

16

Toro 104-3684-01

COVER-BELT, RH

$147.99

$

Usually ships in 3-6 days

0

17

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

18

Toro 40-6230

SPRING

$43.99

$

Usually ships in 3-6 days

0

19

Toro 99-2842

See Supercession: 126-2928
(Superseded to 126-2928)

$41.99

$

In Stock, Qty 16

0

20

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$25.99

$

In Stock, Qty 20+

0

21

Toro 94-2505-03

LEFT BAFFLE ASM

$

$

Not available

22

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 5

0

23

Toro 94-2504-03

RIGHT BAFFLE ASM

$

$

Not available

24

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

26

Toro 94-1581

See Supercession: 94-1581-01
(Superseded to 94-1581-01)

$443.99

$

Usually ships in 3-6 days

0

26:1

Toro 93-7317

DECAL-DANGER

$

$

Not available

26:2

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

27

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

28

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

30

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

31

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

32

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

37

Toro 106-2217

BELT-V

$160.99

$

Usually ships in 3-6 days

0

38

Toro 94-2500

TUBE-SPACER, WHEEL

$4.49

$

In Stock, only 2 left!

0

39

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

40

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

41

Toro 107-1716

DECAL-DECK

$

$

Not available

47

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

50

Toro 84-5760

PLATE-KICKER

$16.99

$

Usually ships in 3-6 days

0
