74406 (ZX 440) - Toro 44" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) 44IN RECYCLER AND DECAL ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

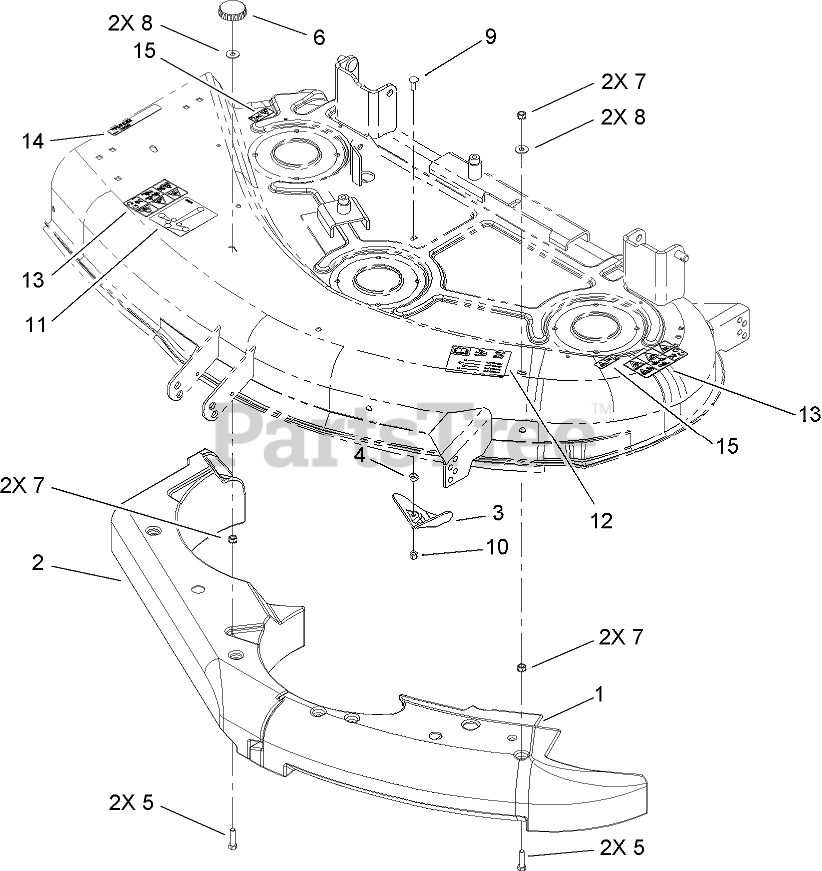

44IN RECYCLER AND DECAL ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7652

BAFFLE-LH

$304.99

$

Usually ships in 3-6 days

0

2

Toro 93-7651

BAFFLE-RH

$304.99

$

Usually ships in 3-6 days

0

3

Toro 84-5760

PLATE-KICKER

$13.99

$

Usually ships in 3-6 days

0

4

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

5

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

6

Toro 94-5583

KNOB

$13.99

$

In Stock, only 2 left!

0

7

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

8

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 9

0

9

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 2 left!

0

12

Toro 112-9840

DECAL-SCALP, ANTI

$7.99

$

In Stock, only 4 left!

0

13

Toro 110-6691

DECAL-DANGER

$5.49

$

In Stock, Qty 10

0

14

Toro 93-7009

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

15

Toro 114-1606

DECAL-DANGER

$2.99

$

In Stock, Qty 9

0
