74407 (ZX 525) - Toro 52" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) 52IN DECK ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

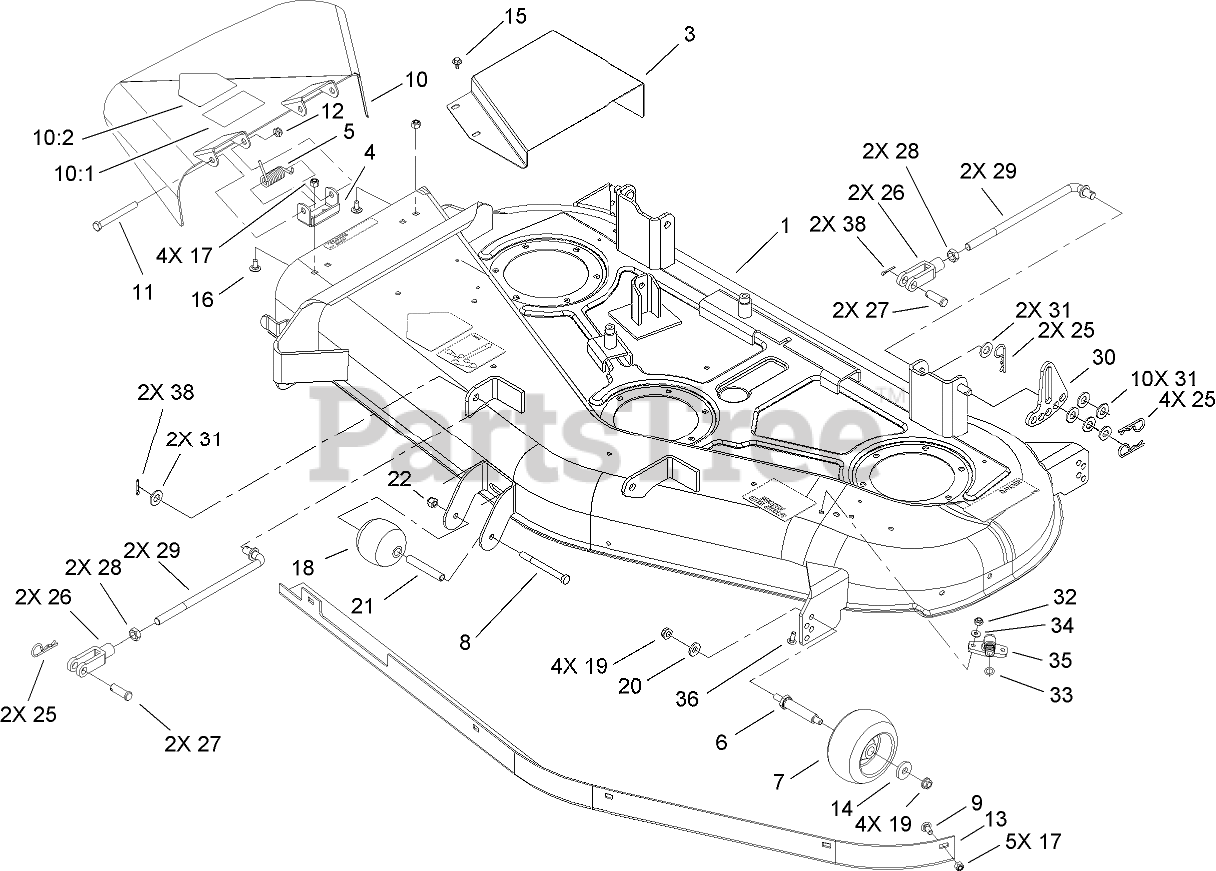

52IN DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 108-8573

52 INCH DECK ASM

$

$

Not available

2

Toro 108-8532-03

COVER-BELT, LH

Note: Not illustrated

$

$

Not available

3

Toro 108-8531-03

COVER-BELT, RH

$

$

Not available

4

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

5

Toro 40-6230

SPRING

$43.99

$

Usually ships in 3-6 days

0

6

Toro 99-2842

SPACER
(Superseded to 126-2928)

$41.99

$

In Stock, Qty 16

0

7

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

8

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

9

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

10

Toro 94-1581

DEFLECTOR ASM
(Superseded to 94-1581-01)

$443.99

$

Usually ships in 3-6 days

0

10:1

Toro 93-7317

DECAL-DANGER

$

$

Not available

10:2

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

11

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

12

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

13

Toro 67-2150-03

BAFFLE

$461.99

$

Usually ships in 3-6 days

0

14

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

15

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

16

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

19

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

20

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

21

Toro 94-2500

TUBE-SPACER, WHEEL

$4.49

$

In Stock, only 2 left!

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 12

0

26

Toro 100-7338

CLEVIS

$66.99

$

In Stock, only 1 left!

0

27

Toro 104-3634

PIN-CLEVIS

$21.99

$

In Stock, only 2 left!

0

28

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 14

0

29

Toro 104-8047

ROD-TRUNION
(Superseded to 131-3945)

$46.99

$

In Stock, only 2 left!

0

30

Toro 104-3699-01

LINK-HOC, ADJUSTING

$78.99

$

Usually ships in 3-6 days

0

31

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, Qty 8

0

33

Toro 46-6290

O-RING

$2.99

$

In Stock, only 1 left!

0

34

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 13

0

35

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 7

0

36

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

38

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
