74409 CP (Z 340) - Toro 40" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) CASTER AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

40" Z Master Zero-Turn Mower, Side-Discharge Deck

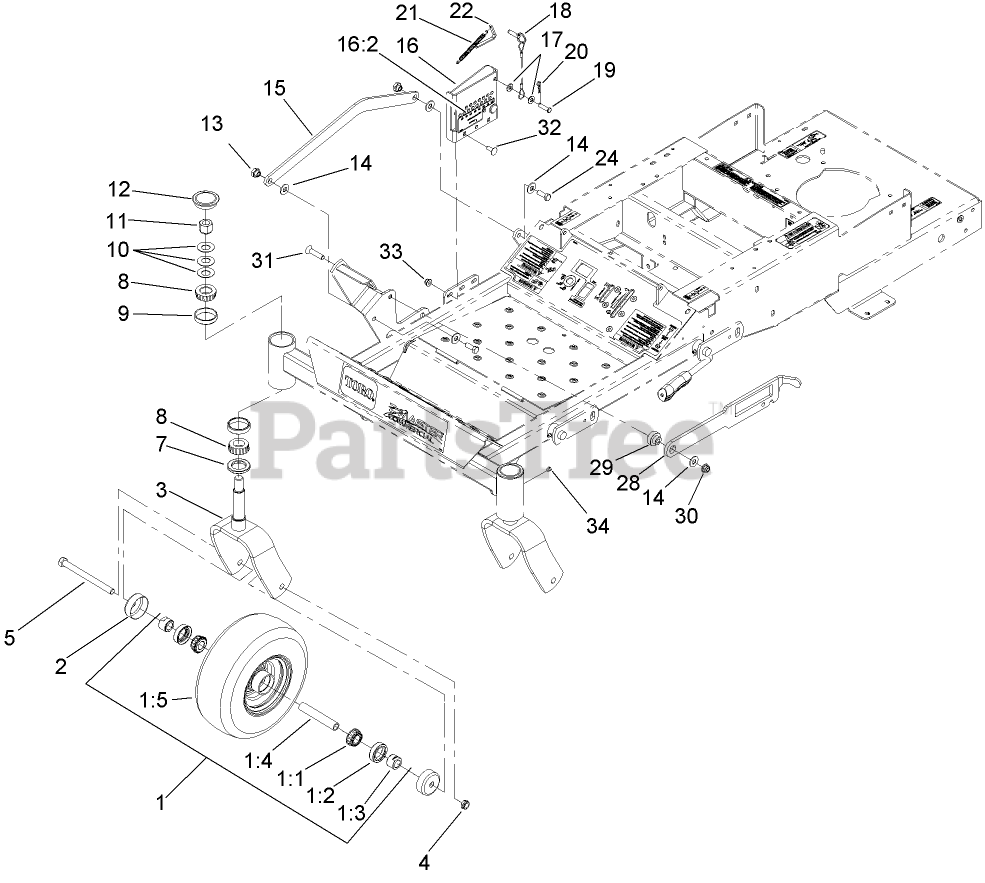

CASTER AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 110-9964

WHEEL BEARING ASM
(Superseded to 112-3810)

$218.99

$

In Stock, Qty 6

0

1:1

Toro 1-633585

BEARING-CONE, TAPER

$23.99

$

In Stock, Qty 17

0

1:2

Toro 103-0063

SEAL-CASTER

$9.49

$

In Stock, only 3 left!

0

1:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 6

0

1:4

Toro 103-3157

AXLE-CASTER
(Superseded to 126-5359)

$20.99

$

In Stock, Qty 8

0

1:5

Toro 110-9965

WHEEL AND TIRE ASM

$191.99

$

In Stock, Qty 6

0

2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 6

0

3

Toro 103-8618-01

FORK-CASTER

$153.99

$

In Stock, Qty 12

0

4

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

5

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

7

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 8

0

8

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

9

Toro 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 20+

0

10

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

11

Toro 3296-51

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

12

Toro 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

13

Toro 103-9933

NUT-SHOULDER

$9.49

$

In Stock, only 1 left!

0

14

Toro 63-8410

WASHER

$2.49

$

In Stock, Qty 8

0

15

Toro 103-9932

LINK-CONTROL, DECK

$

$

Not available

16

Toro 109-3544

HEIGHT ADJUST ASM

$

$

Not available

16:2

Toro 109-2463

DECAL-HEIGHT, DECK

$13.99

$

Usually ships in 3-6 days

0

17

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 11

0

18

Toro 109-3323

HEIGHT PIN W/LANYARD ASM

$40.99

$

Usually ships in 3-6 days

0

19

Toro 283-6

PIN-CLEVIS

$2.49

$

In Stock, Qty 11

0

20

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

21

Toro 109-2416

SPRING-ADJUST, HEIGHT

$

$

Not available

22

Toro 109-2620

PAWL-CONTROL, HEIGHT

$18.99

$

Usually ships in 3-6 days

0

24

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 109-2410

BAR-ADJUST, HEIGHT
(Superseded to 116-0199)

$

$

Not available

29

Toro 103-9934

BUSHING

$

$

Not available

30

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 3289-19

SCREW-FH

$5.49

$

Usually ships in 3-6 days

0

32

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 1 left!

0

34

Toro 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0
