74414 (Z 450) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) LOWER HOUSING ASSEMBLY KOHLER CV20S-65601 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

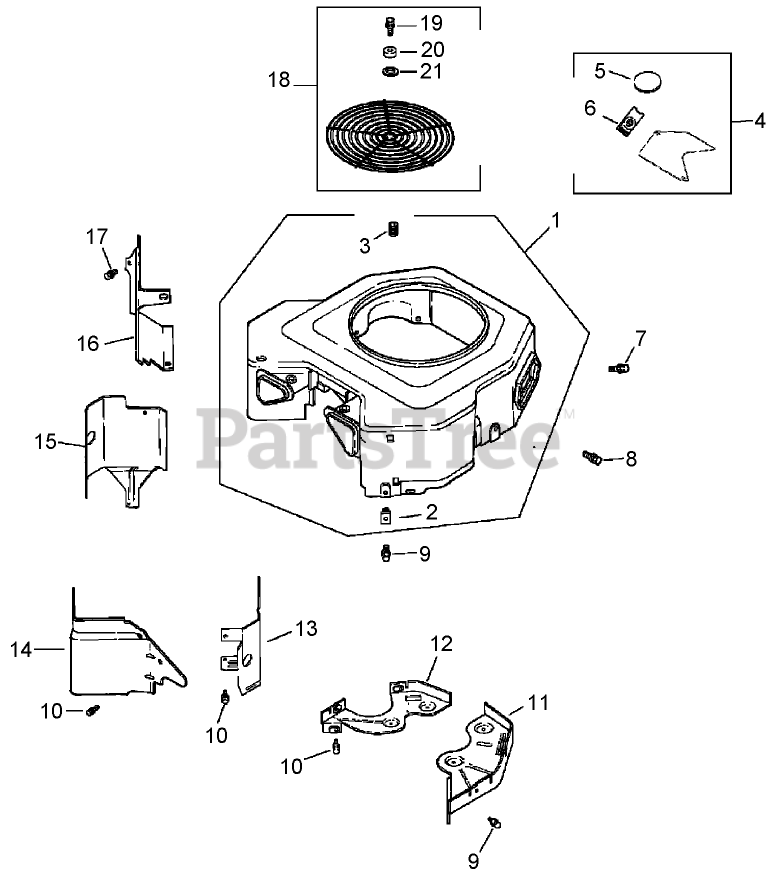

LOWER HOUSING ASSEMBLY KOHLER CV20S-65601 Parts Diagram

  • Title

1

24027160-S

Housing, blower (Incl. 2-4, 10, and 24 332 01-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 24 100 02-S

NUT-PLASTIC

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 755 20-S

Kit, access cover (Incl. 5, 6, 10, and 24 113 126-S)

Note: Obtain parts from www.kohlerplus.com

$26.99

$

In Stock, only 1 left!

0

5

Kohler 25 139 16-S

PLUG-BUTTON (9/16)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

6

Kohler 25 154 02-S

Clip-Mounting
(Superseded to 25 154 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

7

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

8

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

9

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 17

0

10

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

11

Kohler 24 146 16-S

Plate-Backing (No. 2 Side)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13

Kohler 24 063 20-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 24 063 14-S

Baffle, valley-#2 side
(Superseded to 24 063 94-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 1 left!

0

15

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

Usually ships in 2-5 days

0

16

Kohler 24 063 60-S

Baffle-valley (No.1 side)
(Superseded to 24 063 93-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 3 left!

0

17

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 13

0

18

Kohler 24 755 94-S

Kit, guard (Incl. 19-21 and 24 332 01-S)

Note: Obtain parts from www.kohlerplus.com

$86.99

$

In Stock, only 2 left!

0

19

Kohler 24 086 39-S

Screw-Head, Pan
(Superseded to 25 086 160-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 4 left!

0

20

Kohler 24 112 09-S

Spacer
(Superseded to 25 112 30-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 4 left!

0

21

Kohler 24 468 10-S

Washer-plain (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 4 left!

0

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Not illustrated

$3.49

$

In Stock, only 4 left!

0

24113129-S

Decal, 20 HP

Note: Not illustrated

$

$

Not available

24113129-S

Decal, 20 HP

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 25 113 39-S

DECAL-LAMINATE, CLEAR
(Superseded to 25 113 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

Kohler 25 113 39-S

DECAL-LAMINATE, CLEAR
(Superseded to 25 113 79-S)

Note: Not illustrated

$2.49

$

In Stock, only 4 left!

0

Kohler 24 113 126-S

DECAL-KEY SWITCH

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 24 113 126-S

DECAL-KEY SWITCH

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0
