74417 (Z 453) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) DECK CONNECTION ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

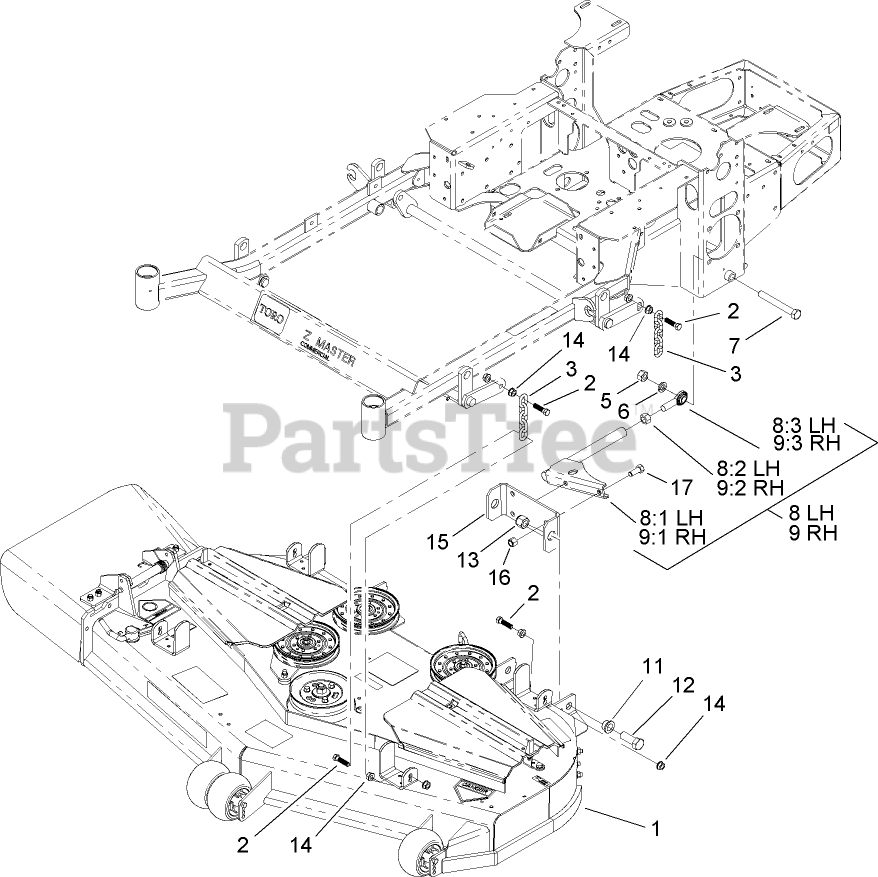

DECK CONNECTION ASSEMBLY Parts Diagram

  • Title

1

Toro 107-3190

DECK ASM

$5940.99

$

Usually ships in 3-6 days

0

2

Toro 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

3

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 20+

0

5

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

6

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 327-11

SCREW-HH

$11.99

$

In Stock, Qty 6

0

8

Toro 107-3150

LH STRUT ASM

$212.99

$

Usually ships in 3-6 days

0

8:1

Toro 107-3103-01

STRUT-COMPACT

$134.99

$

Usually ships in 3-6 days

0

8:2

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

8:3

Toro 1-633029

BALLJOINT-SPHERICAL

$64.99

$

In Stock, Qty 20+

0

9

Toro 107-1659

RH STRUT ASM

$212.99

$

Usually ships in 3-6 days

0

9:1

Toro 107-3103-01

STRUT-COMPACT

$134.99

$

Usually ships in 3-6 days

0

9:2

Toro 1-633029

BALLJOINT-SPHERICAL

$64.99

$

In Stock, Qty 20+

0

9:3

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

11

Toro 93-2877

BUSHING

$2.99

$

In Stock, only 3 left!

0

12

Toro 328-24

SCREW-HH

$25.99

$

In Stock, only 4 left!

0

13

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

14

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 20+

0

15

Toro 107-3100-01

BASE-STRUT

$67.99

$

Usually ships in 3-6 days

0

16

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0
