74418 (Z 400) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270001001 - 270002000) (2007) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram
48" Z Master Zero-Turn Mower, Side-Discharge Deck

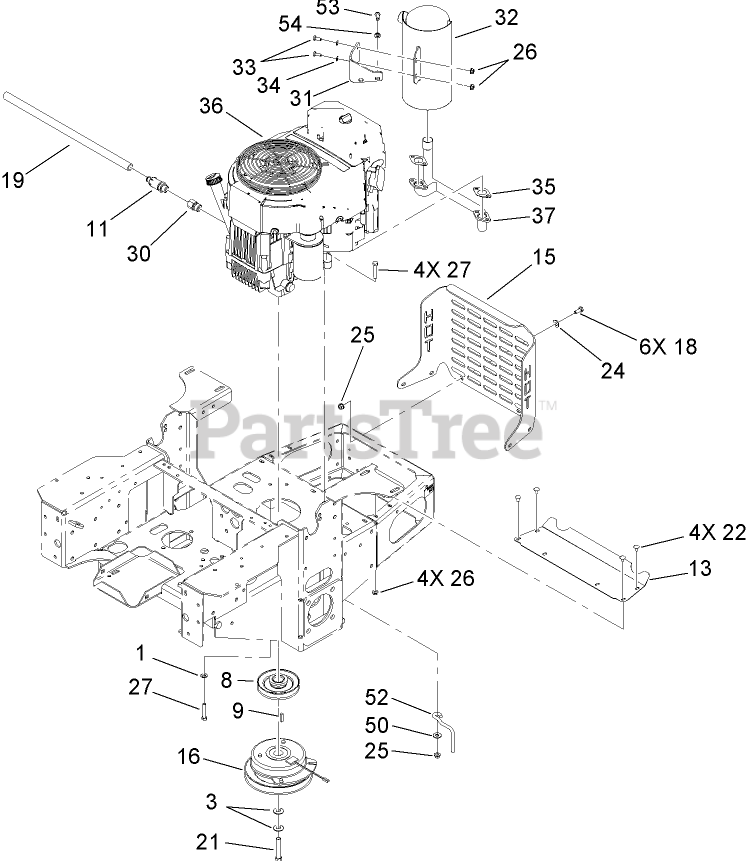

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram
Toro 1-303334
$2.99
$
Toro 1-603610
$5.49
$
Toro 1-653035
$72.99
$
Toro 1-807259
$2.49
$
Toro 92-6877
$43.99
$
Toro 103-2740-03
$
$
Not available
Toro 103-4048-03
$
$
Not available
Toro 104-3624
$362.99
$
Toro 322-3
$0.99
$
Toro 106-7022
$9.99
$
Toro 3212-10
$6.99
$
Toro 3229-10
$1.49
$
Toro 3256-24
$0.99
$
Toro 32128-20
$1.49
$
Toro 32128-33
$0.99
$
Toro 322-9
$3.99
$
Toro 103-1966
$19.99
$
Toro 103-4578-03
$33.99
$
Toro 103-8106
$152.99
$
Toro 321-3
$1.49
$
Toro 1-303435
$1.99
$
Toro 1-653290
$22.99
$
Note: Not serviced separately
$
$
Not available
Note: Obtain parts from www.kawpowerepc.com
$
$
Not available
Toro 103-4577
$
$
Not available
Toro 3256-3
$0.99
$
$92.99
$
Toro 33114-020
$0.99
$
Toro 1-805005
$1.49
$
