74425 (Z 530) - Toro 107cm TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) ELECTRICAL ASSEMBLY Parts Diagram

107cm TimeCutter Zero-Turn Mower

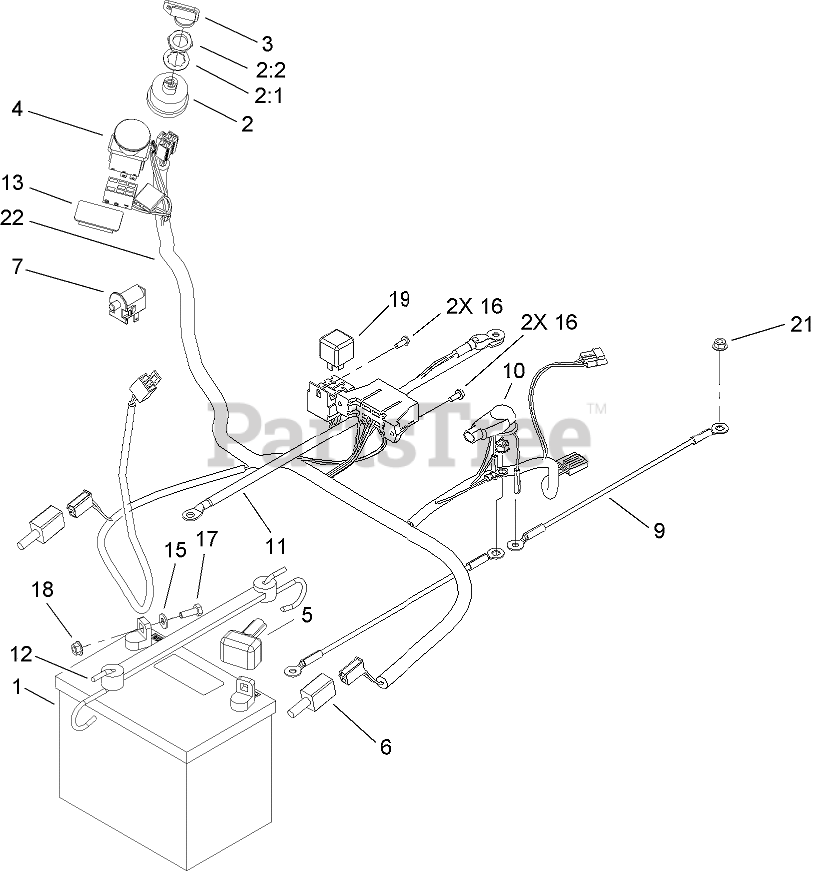

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2491

BATTERY
(Superseded to 104-8162)

$

$

Not available

2

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 20+

0

2:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 11

0

2:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

3

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 95-7489

SWITCH-PTO

$34.99

$

Usually ships in 3-6 days

0

5

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

6

Toro 106-2216

SWITCH

$17.99

$

In Stock, Qty 6

0

7

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

9

Toro 93-1189

WIRE ASM

$29.99

$

Usually ships in 3-6 days

0

10

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$6.99

$

Usually ships in 3-6 days

0

11

Toro 95-7654

CABLE-NEGATIVE, BLACK

$38.99

$

Usually ships in 3-6 days

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 7

0

13

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 18

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0

21

Toro 33004-00

NUT-HF

$0.99

$

In Stock, only 3 left!

0

22

Toro 108-6154

HARNESS-WIRE

$216.99

$

Usually ships in 3-6 days

0
