74432 (ZD 380) - Toro 97cm TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) 38 INCH BOTTOM DECK ASSEMBLY Parts Diagram

97cm TimeCutter Zero-Turn Mower

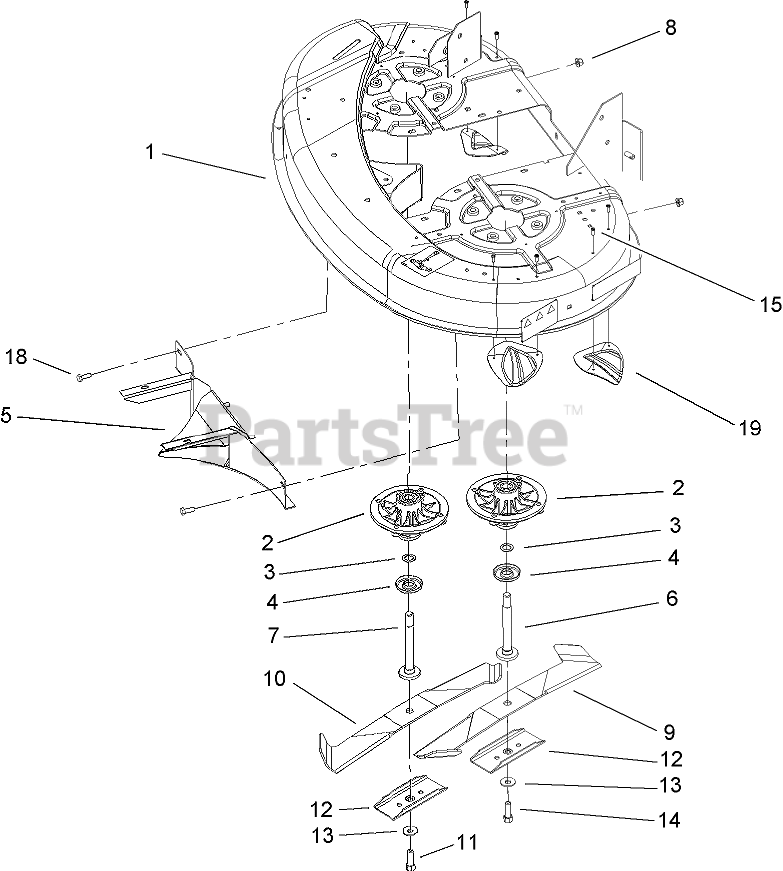

38 INCH BOTTOM DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-8554

38 INCH DC DECK ASM

$

$

Not available

2

Toro 107-9161

SPINDLE ASM

$98.99

$

In Stock, only 1 left!

0

3

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 20+

0

4

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 20+

0

5

Toro 112-4788-03

38 INCH REAR BAFFLE ASM

$

$

Not available

6

Toro 80-4341

SHAFT-SPINDLE

$54.99

$

In Stock, Qty 10

0

7

Toro 108-8801

SHAFT-SPINDLE

$111.99

$

Usually ships in 3-6 days

0

8

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

9

Toro 107-8957-03

BLADE-LH, 19.32 INCH

$86.99

$

Usually ships in 3-6 days

0

10

Toro 107-8956-03

BLADE-RH, 19.32 INCH

$86.99

$

Usually ships in 3-6 days

0

11

Toro 108-8823

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

12

Toro 106-2248-03

STIFFENER-BLADE

$20.99

$

In Stock, Qty 20+

0

13

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 19

0

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 76-2160

PLATE-KICKER

$17.99

$

In Stock, Qty 5

0
