74433 (ZD 420) - Toro 42" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) 42 INCH BOTTOM DECK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

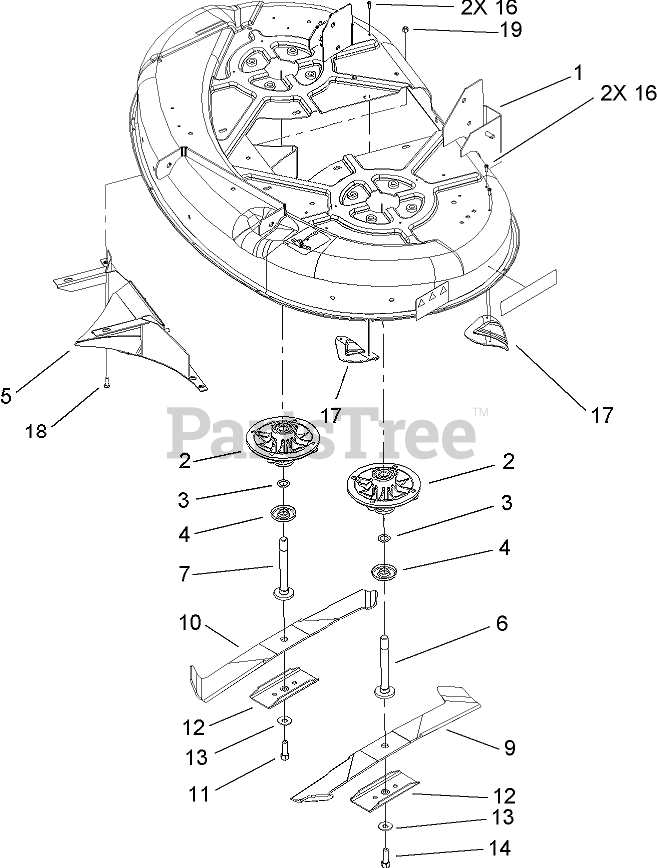

42 INCH BOTTOM DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-8555

42 INCH DECK ASM

$

$

Not available

2

Toro 107-9161

SPINDLE ASM

$102.99

$

In Stock, only 2 left!

0

3

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 18

0

4

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 16

0

5

Toro 112-4794-03

42 INCH REAR BAFFLE ASM

$

$

Not available

6

Toro 80-4341

SHAFT-SPINDLE

$56.99

$

In Stock, only 2 left!

0

7

Toro 108-8801

SHAFT-SPINDLE

$116.99

$

Usually ships in 3-6 days

0

9

Toro 107-8959-03

BLADE-LH, 21.60 INCH

$47.99

$

Usually ships in 3-6 days

0

10

Toro 107-8958-03

BLADE-RH, 21.60 INCH

$47.99

$

Usually ships in 3-6 days

0

11

Toro 108-8823

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

12

Toro 106-2248-03

STIFFENER-BLADE

$21.99

$

In Stock, Qty 7

0

13

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 15

0

16

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 14

0

17

Toro 76-2160

PLATE-KICKER

$17.99

$

Usually ships in 3-6 days

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
