74433 (ZD 420) - Toro 42" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) GRASS BAG ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

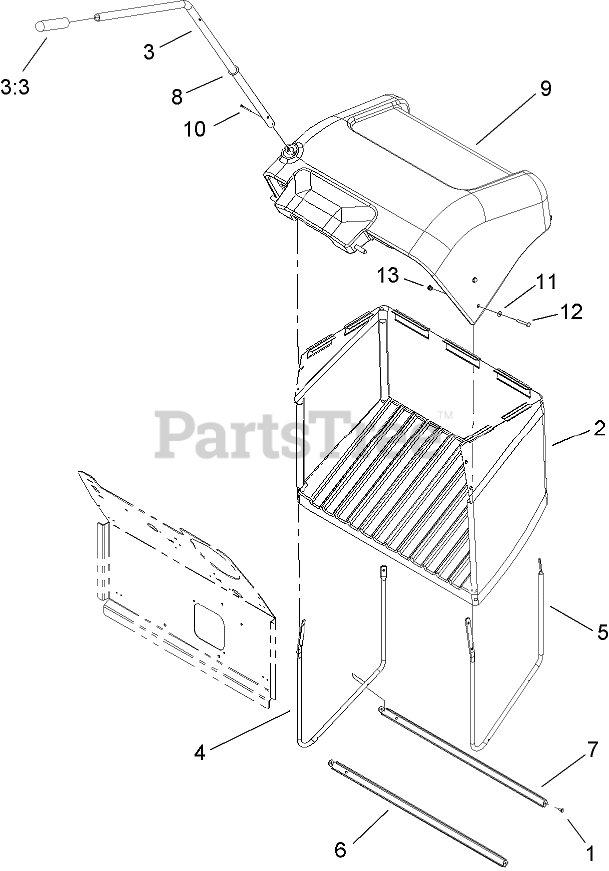

GRASS BAG ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

2

Toro 110-3604

GRASS BAG ASM

$428.99

$

Usually ships in 3-6 days

0

3

Toro 114-3604

LIFT HANDLE ASM

$133.99

$

Usually ships in 3-6 days

0

3:3

Toro 110-1037

GRIP-HANDLE

$19.99

$

Usually ships in 3-6 days

0

4

Toro 110-3606-03

FRAME-BAG, RH

$

$

Not available

5

Toro 110-3607-03

FRAME-BAG, LH

$

$

Not available

6

Toro 110-1005-03

SUPPORT-BASE FRONT

$

$

Not available

7

Toro 110-1006-03

SUPPORT-BASE REAR

$

$

Not available

8

Toro 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 5

0

9

Toro 110-3605

COVER-GRASS CATCHER

$

$

Not available

10

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 321-53

SCREW-HH
(Superseded to 33115-035)

$2.99

$

Usually ships in 3-6 days

0

13

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0
