74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) CONTROL ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

42" TimeCutter Zero-Turn Mower

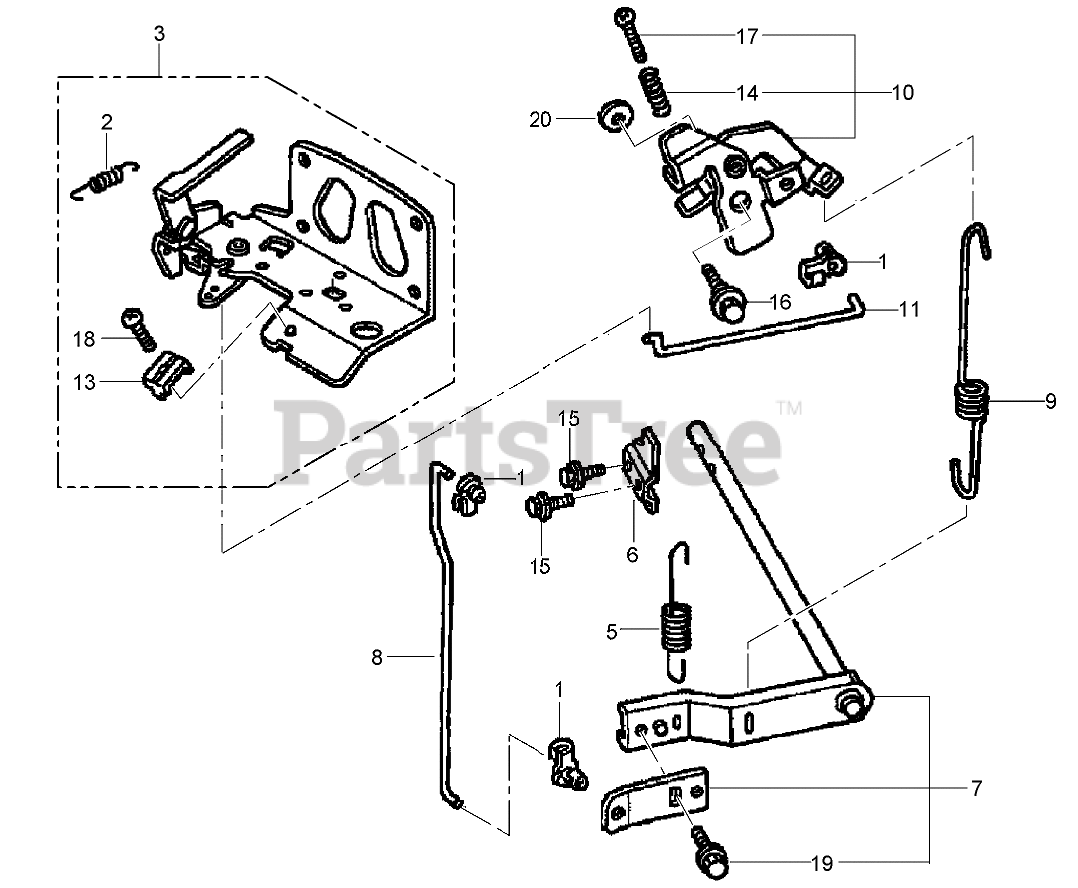

CONTROL ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

  • Title

1

Honda 16263-ZJ7-871

ROD-JOINT

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 3 left!

0

2

Honda 16268-Z0A-300

SPRING-RETURN, CHOKE

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

3

Honda 16500-Z0A-000

CONTROL ASM (1-LEVER)

Note: Obtain parts from www.honda-engines.com

$52.99

$

Usually ships in 3-6 days

0

5

Honda 16534-Z0A-000

SPRING-STARTER (Up to Engine Serial No. 1038645)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 2 left!

0

5

Honda 16534-Z0P-V00

SPRING-STARTER (From Engine Serial No. 1038646)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 5

0

6

Honda 16542-Z0A-000

FORK-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$7.99

$

Usually ships in 3-6 days

0

7

Honda 16550-Z0A-000

ARM-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$32.99

$

Usually ships in 3-6 days

0

8

Honda 16555-Z0A-000

ROD-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 2 left!

0

9

Honda 16561-Z0A-000

SPRING-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

10

Honda 16565-Z0A-000

LINK-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$21.99

$

Usually ships in 3-6 days

0

11

Honda 16566-Z0A-000

ROD-LINK, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$5.99

$

Usually ships in 3-6 days

0

13

Honda 16576-891-000

Holder-Cable

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 2 left!

0

14

Honda 16584-883-300

SPRING-ADJUSTING, CONTROL

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 1 left!

0

15

Honda 90002-892-000

BOLT-FLANGE (5X10)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

16

Honda 90015-Z0A-000

BOLT-FLANGE (6MM) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90016-ZG9-N30

SCREW-RECESSED (5X25)

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90016-Z0A-V00

SCREW-RECESSED (5X18)

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95701-06010-00

Bolt-Flange (6X10)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 20+

0

20

Honda 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0
