74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) Crankshaft Assembly Honda GXV530 EXA2 Parts Diagram

42" TimeCutter Zero-Turn Mower

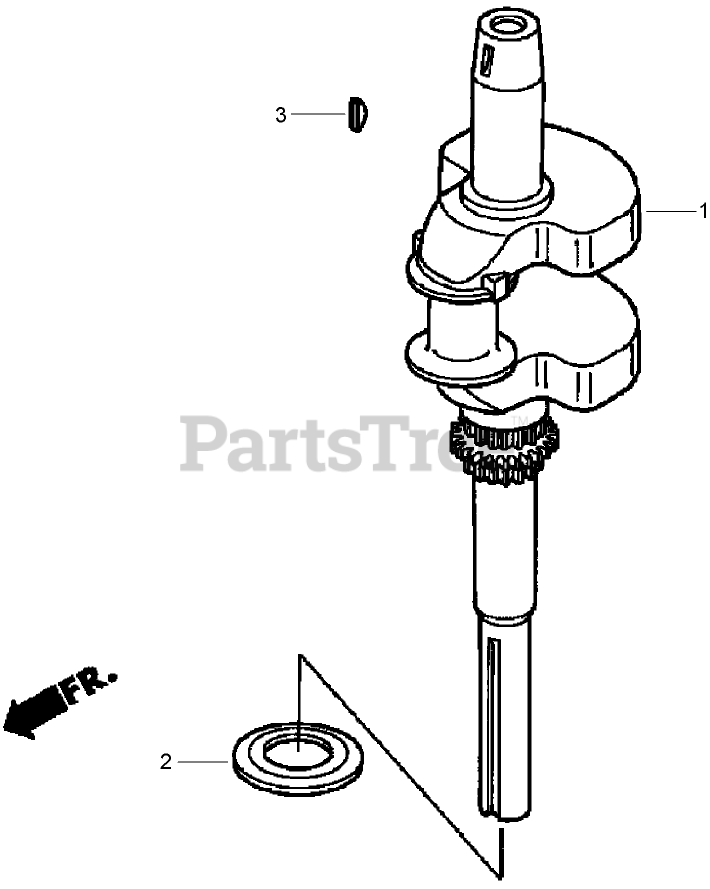

Crankshaft Assembly Honda GXV530 EXA2 Parts Diagram

  • Title

1

Toro 13310-Z0A-800

CRANKSHAFT

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 90401-Z0A-000

WASHER-THRUST

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Toro 90741-ZE2-000

KEY-WOODRUFF, SPECIAL (25X18)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
