74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) ENGINE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

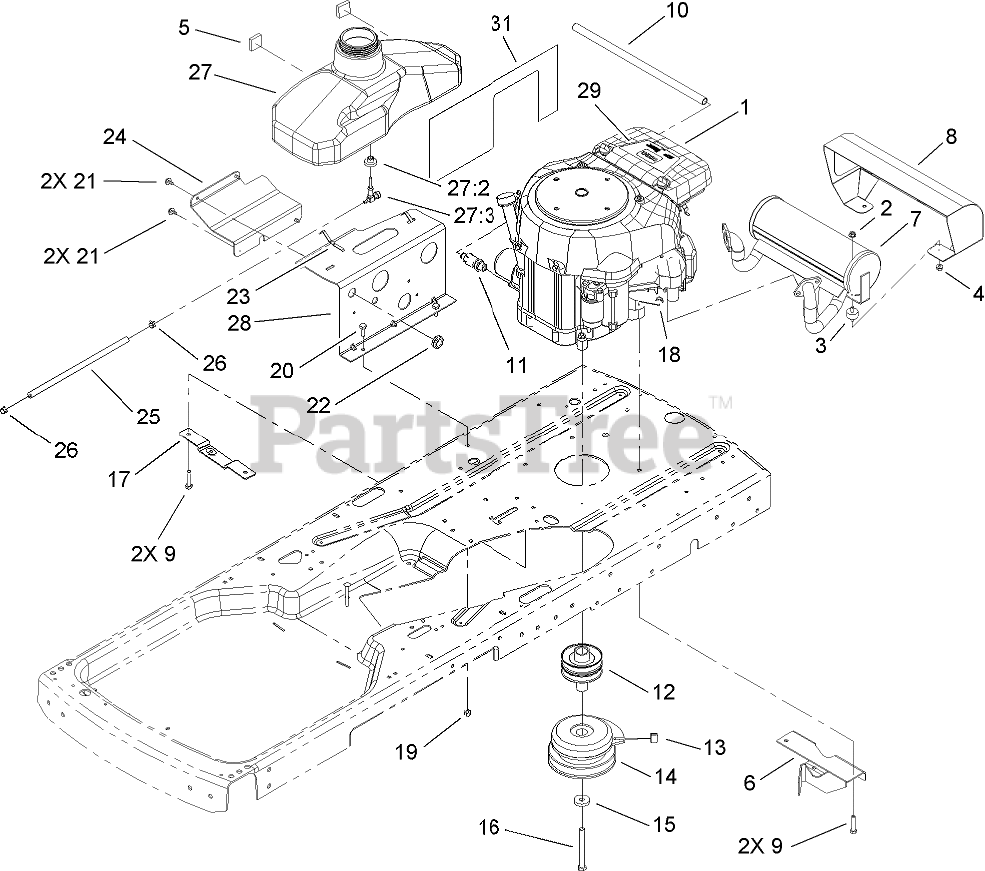

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-HONDA, GXV 530 EXA2

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GXV 530 EXA2

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

3

Toro 108-6183

ISOLATOR-RUBBER

$

$

Not available

4

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 8

0

5

Toro 104-2488

FOAM-SWITCH, SEAT

$6.99

$

Usually ships in 3-6 days

0

6

Toro 107-4873

BRACKET-PIVOT

$49.99

$

Usually ships in 3-6 days

0

7

Toro 110-8625

MUFFLER

$

$

Not available

8

Toro 110-8623-03

SHIELD-MUFFLER

$

$

Not available

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 106-7022

TUBE-DRAIN, OIL

$8.99

$

In Stock, Qty 7

0

11

Toro 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, Qty 5

0

12

Toro 105-3472

PULLEY-ENGINE

$211.99

$

Usually ships in 3-6 days

0

13

Toro 98-5023

BUMPER

$6.99

$

Usually ships in 3-6 days

0

14

Toro 104-3334

CLUTCH-ELECTRIC

$474.99

$

Usually ships in 3-6 days

0

15

Toro 112843

WASHER

$3.49

$

In Stock, Qty 18

0

16

Toro 3212-16

SCREW-HH

$19.99

$

In Stock, Qty 15

0

17

Toro 106-2156

PLATE-MOUNT, IDLER

$32.99

$

Usually ships in 3-6 days

0

18

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

22

Toro 237-124

GROMMET

$2.99

$

In Stock, only 3 left!

0

23

Toro 609830

SPRING

$5.49

$

In Stock, Qty 10

0

24

Toro 108-2315-03

PLATE-SUPPORT

$

$

Not available

25

Toro 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 4 left!

0

26

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

27

Toro 105-3464

GAS TANK ASM

$

$

Not available

27:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

27:3

Toro 110-6565

VALVE-FUEL

$33.99

$

Usually ships in 3-6 days

0

28

Toro 108-2314-03

PLATE-TANK

$

$

Not available

29

Toro 110-6548

DECAL

$

$

Not available

31

Toro 112-4776

FOIL-SHIELD, HEAT

$

$

Not available
