74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) FUEL PUMP ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

42" TimeCutter Zero-Turn Mower

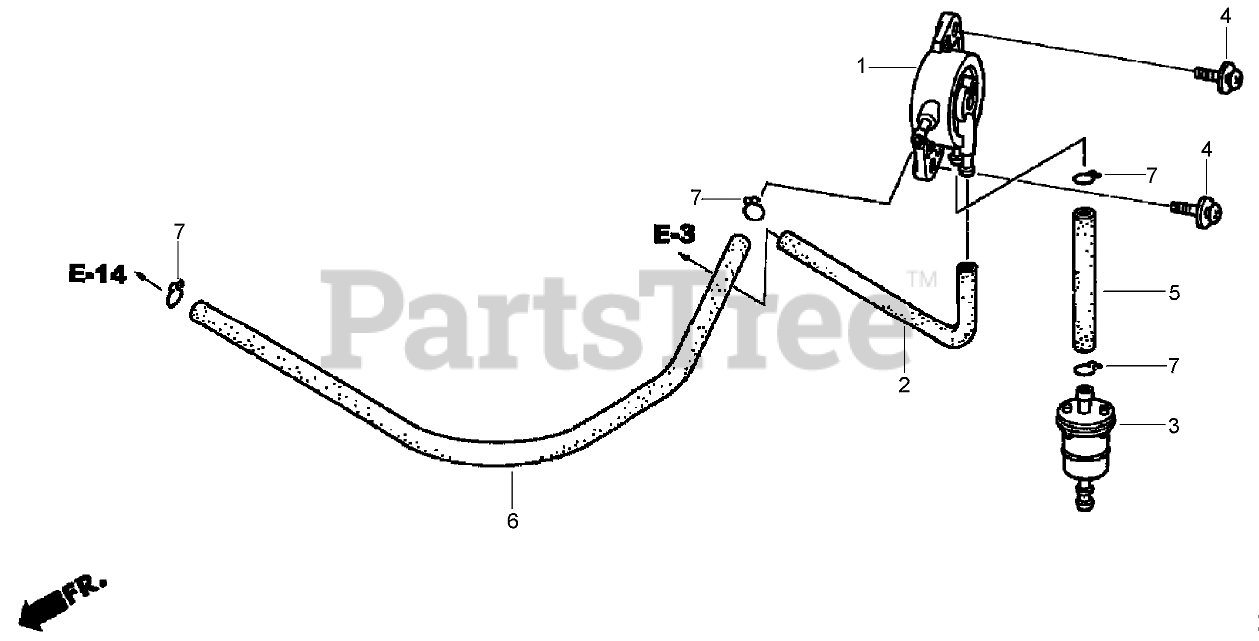

FUEL PUMP ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

  • Title

1

Honda 16700-ZL8-013

FUEL PUMP ASM
(Superseded to 16700-Z0J-003)

Note: Obtain parts from www.honda-engines.com

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16882-Z0A-000

TUBE-DIAPHRAGM

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 1 left!

0

3

Honda 16910-ZV4-015

FILTER-FUEL

Note: Obtain parts from www.honda-engines.com

$18.99

$

In Stock, only 4 left!

0

4

Honda 93894-05016-00

SCREW-WASHER (5X16)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 8

0

5

Honda 95001-55008-60M

FUEL-HOSE (5.5X8000) (5.5X100)

Note: Obtain parts from www.honda-engines.com

$116.99

$

Usually ships in 3-6 days

0

6

Honda 95001-55008-60M

FUEL-HOSE (5.5X8000) (5.5X100)

Note: Obtain parts from www.honda-engines.com

$116.99

$

Usually ships in 3-6 days

0

7

Honda 95002-02100

CLIP-TUBE (B10)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 16

0
