74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) IGNITION COIL ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

42" TimeCutter Zero-Turn Mower

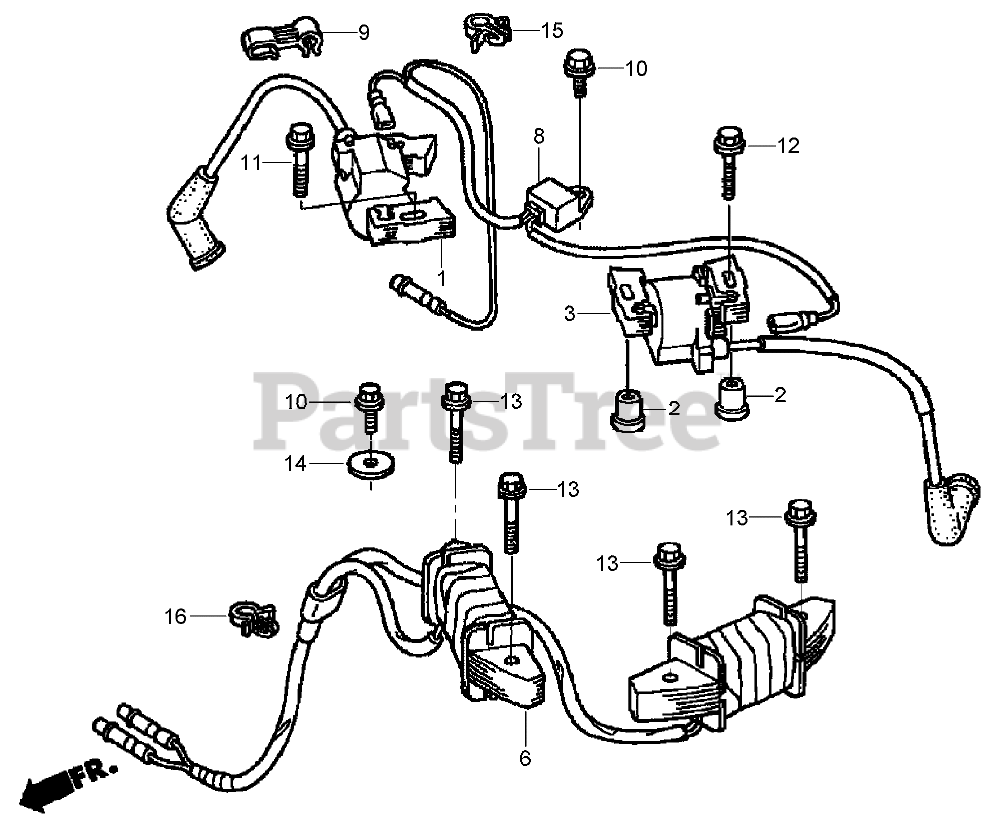

IGNITION COIL ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

  • Title

1

Toro 30500-Z0A-013

IGNITION COIL ASM (No. 1)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Honda 30509-Z0A-000

COLLAR-COIL, IGNITION

Note: Obtain parts from www.honda-engines.com

$6.99

$

Usually ships in 3-6 days

0

3

Toro 30550-Z0A-013

IGNITION COIL ASM (No. 2)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Honda 31630-Z0A-811

CHARGE COIL ASM (12V-12A)

Note: Obtain parts from www.honda-engines.com

$165.99

$

Usually ships in 3-6 days

0

8

Honda 31740-Z0A-003

ENGINE STOP DIODE ASM

Note: Obtain parts from www.honda-engines.com

$29.99

$

In Stock, only 2 left!

0

9

Honda 32768-PJ7-000

CLAMP-WIRE, CENTER

Note: Obtain parts from www.honda-engines.com

$10.99

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0

11

Honda 95701-06028-00

BOLT-FLANGE (6X28)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

12

Honda 90016-ZE8-000

BOLT-FLANGE (6X45) (C T200)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 12

0

13

Honda 95701-06032-00

BOLT-FLANGE (6X32)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 5

0

14

Honda 90136-428-870

WASHER-SETTING, TANK

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90654-SA4-003

CLIP-HARNESS, WIRE (6MM) (WHITE)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 8

0

16

Honda 90659-PG6-000

CLIP-HARNESS, WIRE

Note: Obtain parts from www.honda-engines.com

$10.99

$

Usually ships in 3-6 days

0
