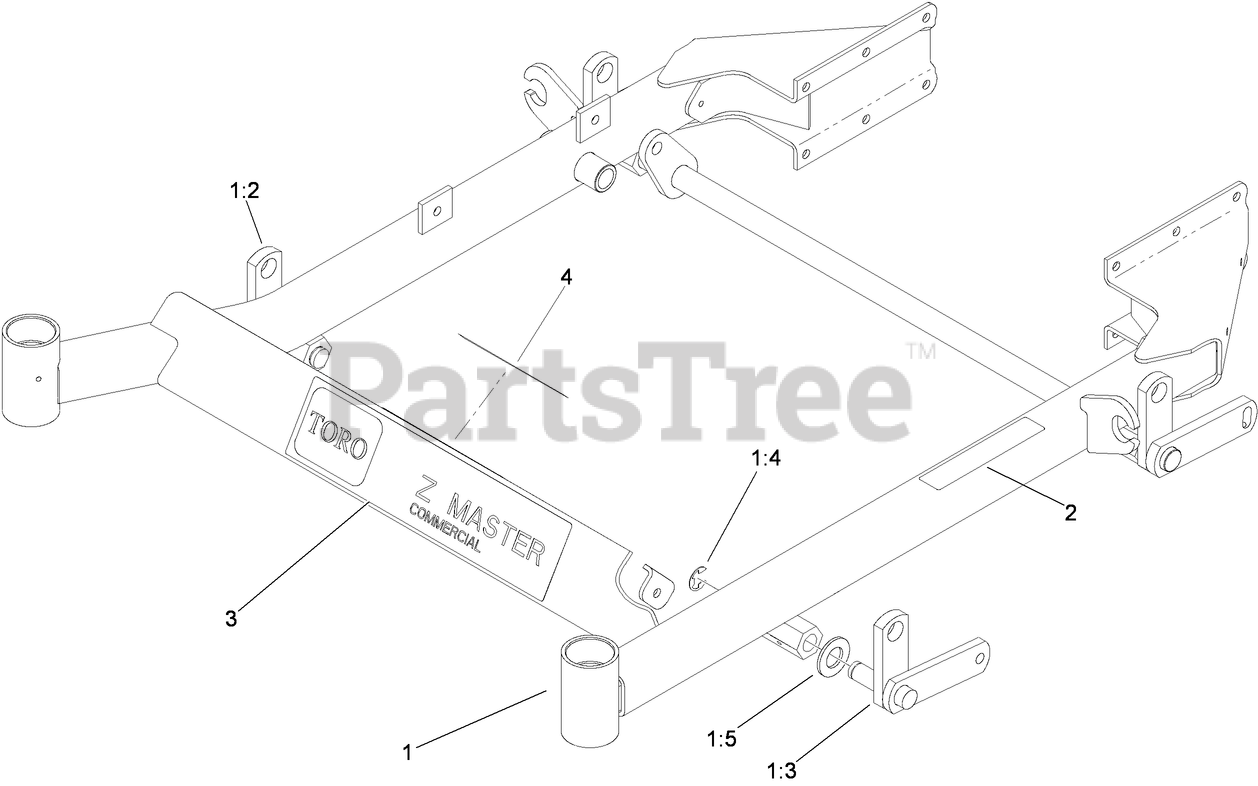

74450 TE (Z 400) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) FRONT FRAME ASSEMBLY NO. 108-5042 Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

FRONT FRAME ASSEMBLY NO. 108-5042 Parts Diagram

  • Title

1

FRAME-FRONT

Note: Not serviced separately

$

$

Not available

1:2

Toro 99-3872

RH LIFT ARM ASM
(Superseded to 99-3872-01)

$123.99

$

Usually ships in 3-6 days

0

1:3

Toro 99-3871

LH LIFT ARM ASM
(Superseded to 99-3871-01)

$121.99

$

Usually ships in 3-6 days

0

1:4

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

1:5

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, Qty 6

0

2

Toro 107-2132

DECAL-WARNING

$28.99

$

Usually ships in 3-6 days

0

3

Toro 106-7451

DECAL

$27.99

$

In Stock, Qty 5

0

4

Toro 107-1866

DECAL-DANGER, SLOPE

$43.99

$

Usually ships in 3-6 days

0
