74450 TE (Z 400) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) FRONT FRAME ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

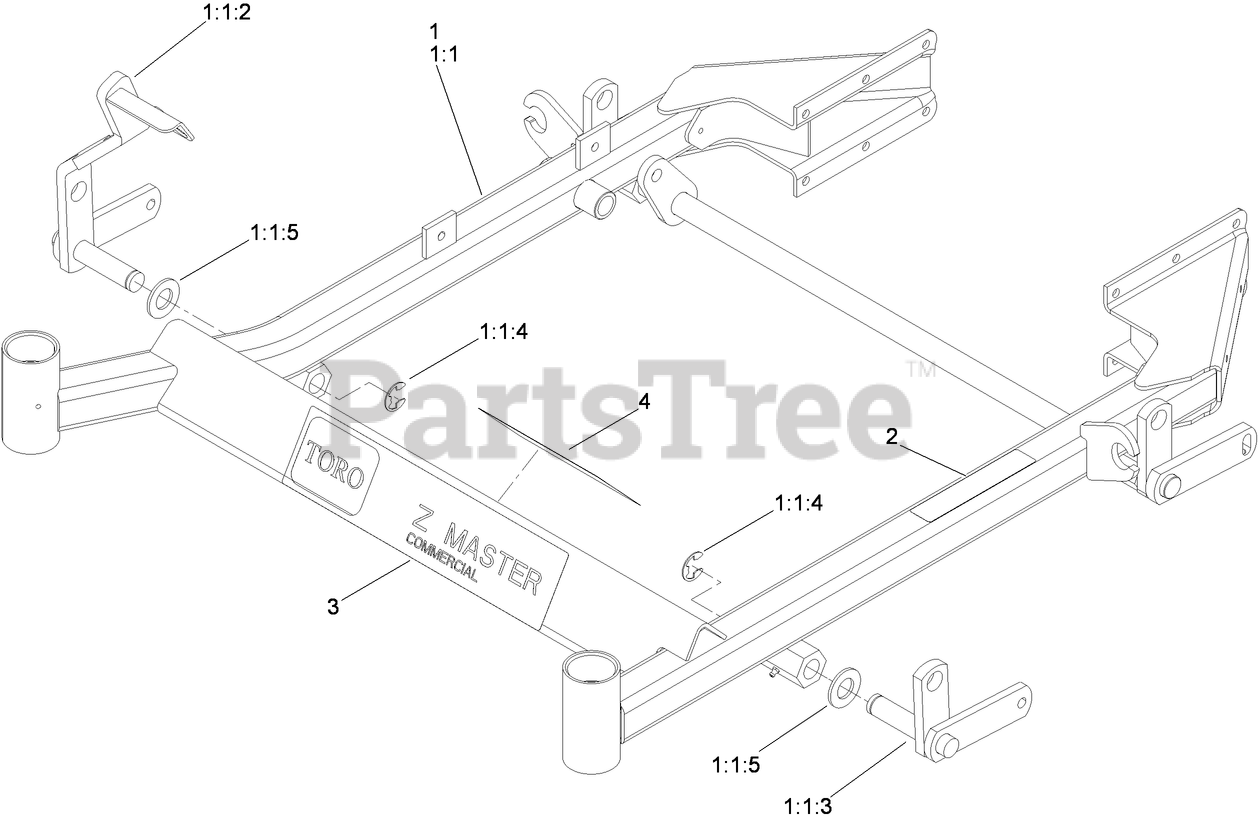

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

1

FRONT FRAME ASM

Note: Not serviced separately

$

$

Not available

1:1

FRAME-FRONT

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 119-4215

RH FOOT LIFT ASM
(Superseded to 119-4215-01)

$

$

Not available

1:1:3

Toro 99-3871

LH LIFT ARM ASM
(Superseded to 99-3871-01)

$149.99

$

Usually ships in 3-6 days

0

1:1:4

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

1:1:5

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

2

Toro 107-2132

DECAL-WARNING

$

$

Not available

3

Toro 106-7451

DECAL

$33.99

$

In Stock, only 2 left!

0

4

Toro 107-1866

DECAL-DANGER, SLOPE

$50.99

$

Usually ships in 3-6 days

0
