74452 (HD 1500) - Toro 60" Titan Zero-Turn Mower (SN: 400000000 - 402099999) SEAT MOUNT ASSEMBLY Parts Diagram

60" Titan Zero-Turn Mower

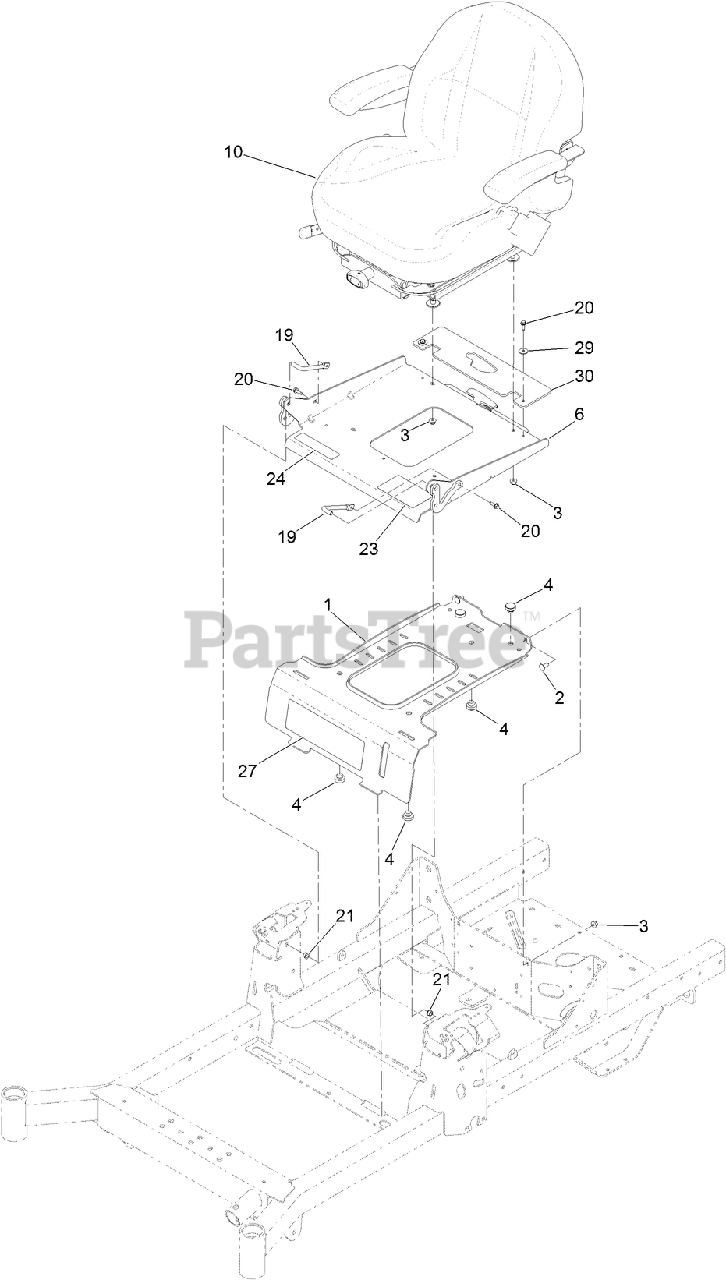

SEAT MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 126-4082-03

PLATE-RETAINER, TANK

$119.99

$

Usually ships in 3-6 days

0

2

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

6

Toro 126-7309

SEAT PAN AND LATCH ASM

$194.99

$

Usually ships in 3-6 days

0

10

Toro 130-0801

SEAT ASM
(Superseded to 127-3305)

$1151.99

$

Usually ships in 3-6 days

0

19

Toro 126-5914

PIN-PIVOT, SEAT

$5.49

$

Usually ships in 3-6 days

0

20

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 4 left!

0

21

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, Qty 7

0

23

Toro 126-8151

DECAL-AID, SERVICE

$5.49

$

Usually ships in 3-6 days

0

24

Toro 126-8161

DECAL-LATCH, SEAT

$2.99

$

Usually ships in 3-6 days

0

27

Toro 126-9273

DECAL

$20.99

$

Usually ships in 3-6 days

0

29

Toro 3256-67

WASHER

$0.99

$

In Stock, Qty 9

0

30

Toro 135-0214

GUARD-SEAT, RUBBER

$15.99

$

Usually ships in 3-6 days

0
