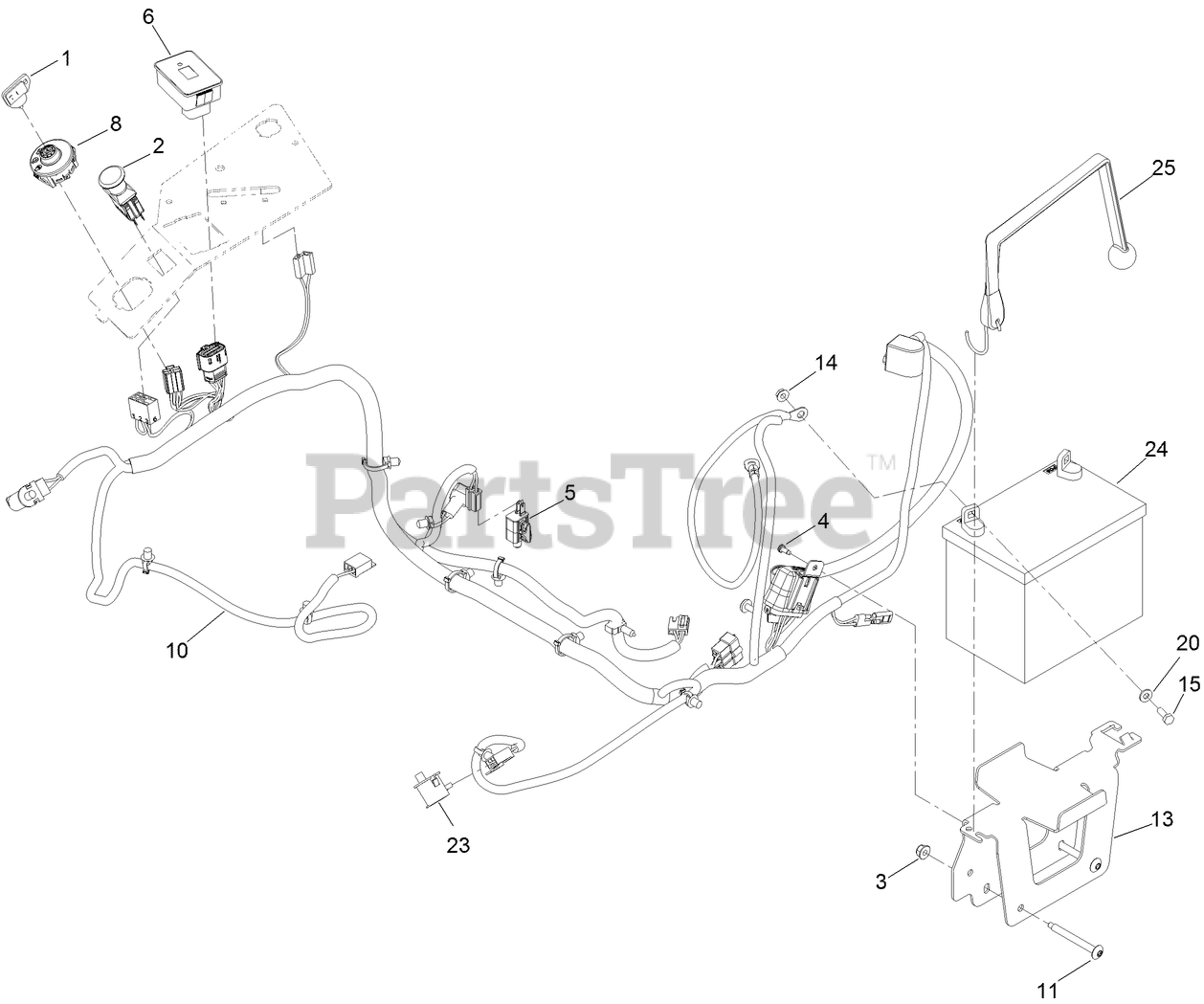

74463 (HD 2000) - Toro 60" Titan Zero-Turn Mower, Rear-Discharge Deck (SN: 404315000 - 999999999) Electrical System Assembly Parts Diagram

60" Titan Zero-Turn Mower, Rear-Discharge Deck

Electrical System Assembly Parts Diagram

  • Title

1

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

2

Toro 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 7

0

5

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

6

Toro 116-5609

MODULE ASM

$149.99

$

In Stock, only 3 left!

0

8

Toro 137-4100

SWITCH-IGNITION

$37.99

$

In Stock, Qty 20+

0

10

Toro 126-5803

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$441.99

$

Usually ships in 3-6 days

0

11

Toro 126-6267

SCREW-TORX

$2.99

$

Usually ships in 3-6 days

0

13

Toro 126-6725-03

TRAY-BATTERY

$27.99

$

Usually ships in 3-6 days

0

14

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

24

BATTERY

Note: Not serviced separately

$

$

Not available

24

BATTERY

Note: Obtain locally.

$

$

Not available

25

Toro 126-7627

STRAP-BUNGEE

$13.99

$

In Stock, only 1 left!

0
