74494 (2000) - Toro 60" Z Master MyRide Zero-Turn Mower (SN: 407400888 - 999999999) Frame and Roll-Over Protection System Assembly Parts Diagram

60" Z Master MyRide Zero-Turn Mower

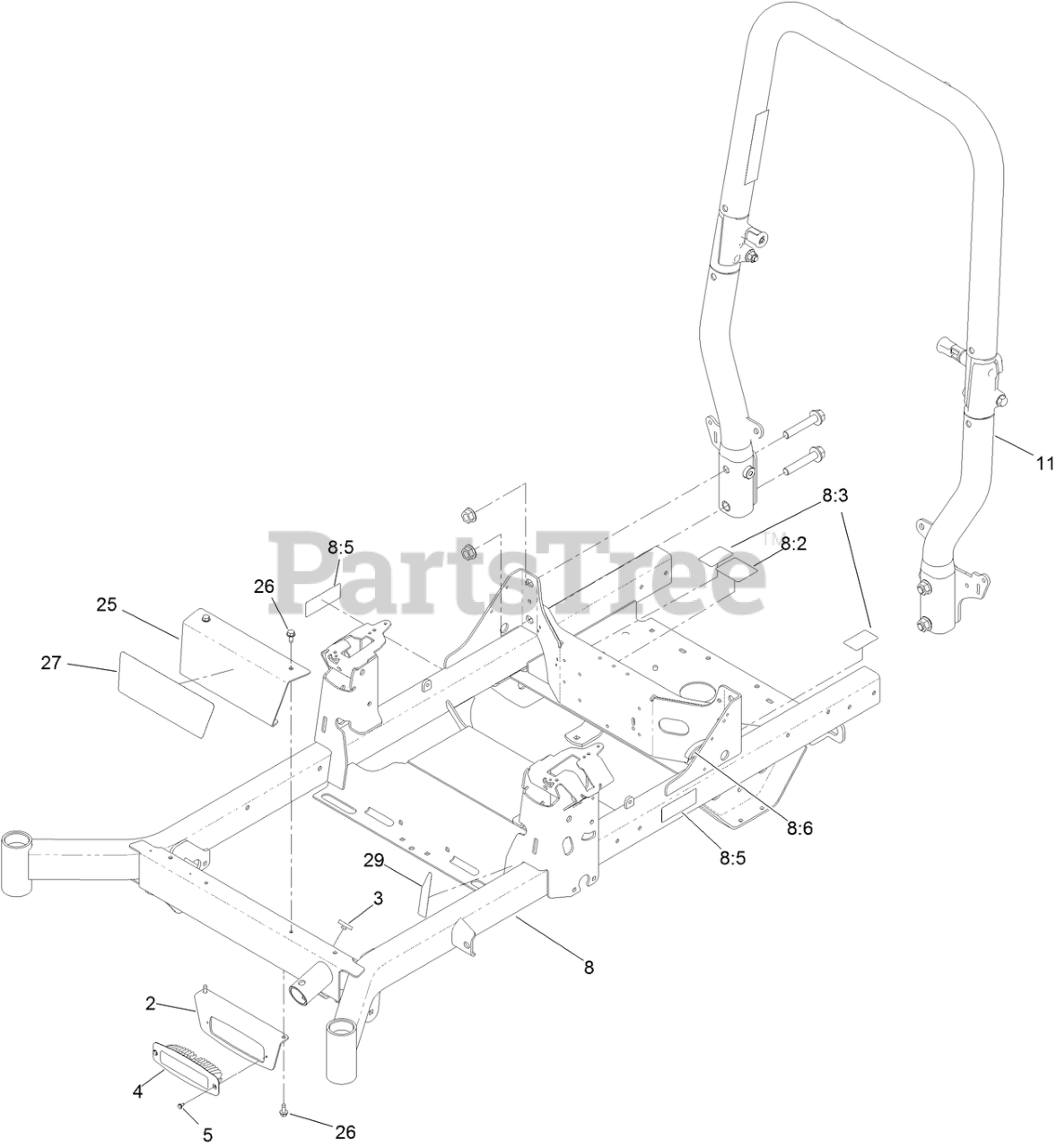

Frame and Roll-Over Protection System Assembly Parts Diagram

  • Title

2

Toro 139-8088-01

BRACKET-LIGHT

$23.99

$

Usually ships in 3-6 days

0

3

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 14

0

4

Toro 139-8089

MOUNT-FLUSH, LIGHT

$104.99

$

Usually ships in 3-6 days

0

5

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

8

Toro 136-8986

FRAME-60, SUSPENSION

$1277.99

$

Usually ships in 3-6 days

0

8:2

Toro 109-6014

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 4 left!

0

8:3

Toro 116-8588

DECAL-RELEASE, DRIVE

$2.99

$

Usually ships in 3-6 days

0

8:5

Toro 126-4363

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0

8:6

Toro 127-6618

STRIP-SEAL

$6.49

$

Usually ships in 3-6 days

0

11

Toro 136-8987

ROPS ASM

$748.99

$

Usually ships in 3-6 days

0

25

Toro 133-9345-01

PLATE-FRONT

$31.99

$

Usually ships in 3-6 days

0

26

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 140-1227

DECAL-Z MASTER

$10.99

$

Usually ships in 3-6 days

0

29

Toro 136-8992

DECAL-FILL, FUEL

$2.99

$

Usually ships in 3-6 days

0
