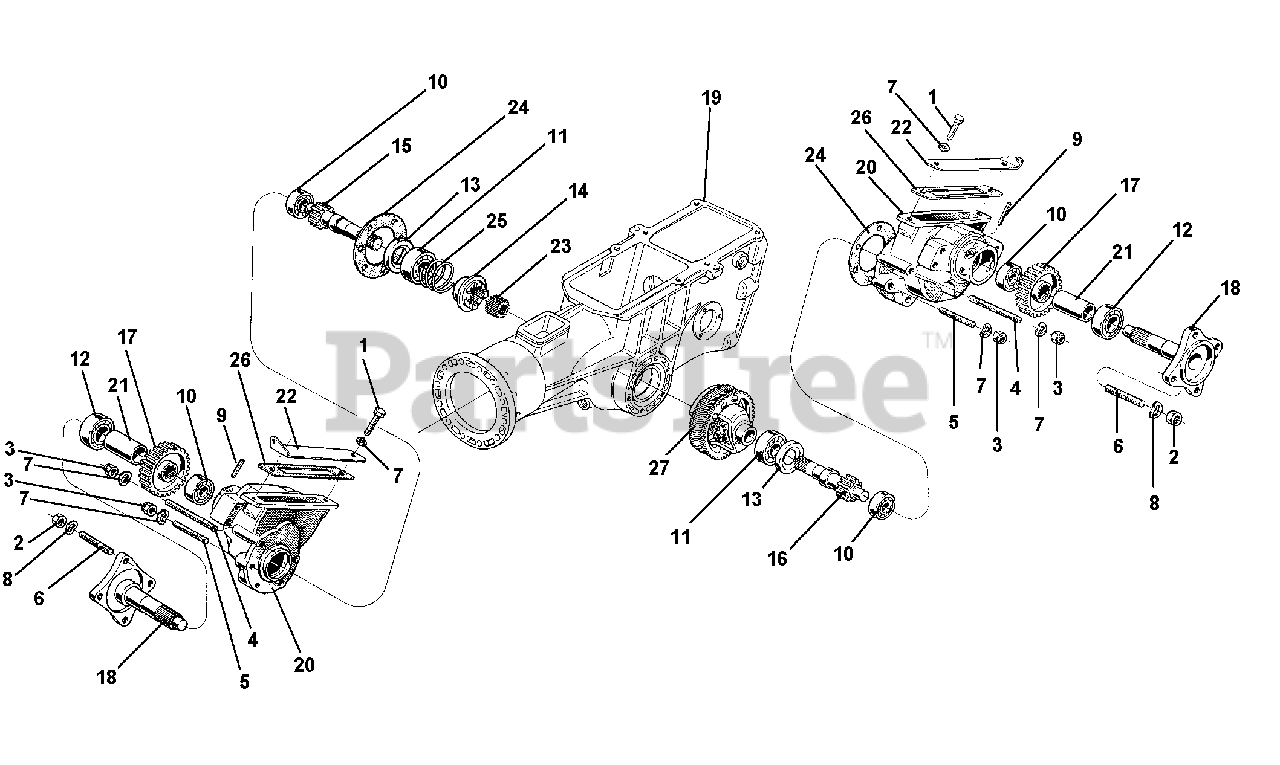

745 - BCS America Two-Wheeled Tractor Differential (SN: 200000 & Above) Parts Diagram

Two-Wheeled Tractor

Differential (SN: 200000 & Above) Parts Diagram

  • Title

1

BCS America 31112150

SCREW M8 X 20

$1.49

$

In Stock, only 2 left!

0

2

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 2 left!

0

3

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

4

BCS America 313.12085

STUD

$8.99

$

Usually ships in 5-8 days

0

5

BCS America 313.12089

STUD

$8.99

$

Usually ships in 5-8 days

0

6

BCS America 313.12102

STUD M10 X 40 X 22 X 14

$2.49

$

In Stock, only 2 left!

0

7

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

8

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, only 3 left!

0

9

BCS America 34213040

PIN 4 X 45 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

10

BCS America 37111170

BEARING 17 X 40 X 12 6203

$9.99

$

Usually ships in 5-8 days

0

11

BCS America 371.11202

BEARING 20 X 52 X 15 6304

$

$

Currently unavailable

12

BCS America 371.12253

BEARING

$

$

Currently unavailable

13

BCS America 382.12602

OIL SEAL

$12.99

$

Usually ships in 5-8 days

0

14

BCS America 524.48182

COUPLING

$125.99

$

Usually ships in 5-8 days

0

15

BCS America 524.49638

RIGHT SHAFT

$649.99

$

Usually ships in 5-8 days

0

16

BCS America 524.49639

LEFT SHAFT

$

$

Currently unavailable

17

BCS America 524.49641

REDUCTION UNIT GEAR

$149.99

$

Usually ships in 5-8 days

0

18

BCS America 524.49643

DRIVE SHAFT 745

$326.99

$

Usually ships in 5-8 days

0

19

BCS America 531.496

GEARBOX 745 / 606-605

$

$

Currently unavailable

20

BCS America 532.49635

REDUCTION UNIT CASE

$388.99

$

Usually ships in 5-8 days

0

21

BCS America 561.49644

SPACER

$24.99

$

Usually ships in 5-8 days

0

22

BCS America 561.49645

COVER

$20.99

$

Usually ships in 5-8 days

0

23

BCS America 564.43857

SPACER FOR DIFFERENTIAL

$64.99

$

Usually ships in 5-8 days

0

24

BCS America 580.43855

JOINT GASKET

$6.49

$

Usually ships in 5-8 days

0

25

BCS America 580.43874

SPRING

$3.99

$

Usually ships in 5-8 days

0

26

BCS America 580.49646

COVER GASKET

$4.49

$

Usually ships in 5-8 days

0

27

BCS America 592.49622

DIFFERENTIAL

$1524.99

$

Usually ships in 5-8 days

0
