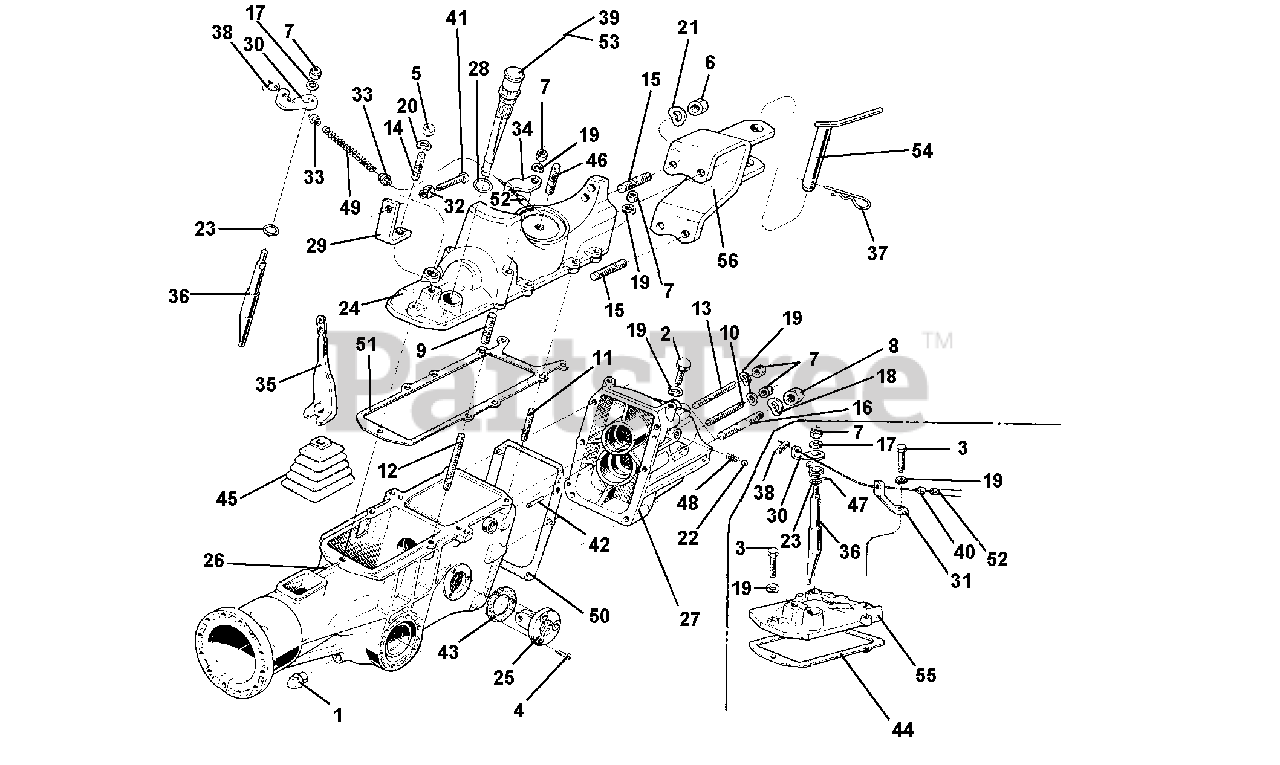

745 - BCS America Two-Wheeled Tractor Gearbox (SN: 202756 & Above) Parts Diagram

Two-Wheeled Tractor

Gearbox (SN: 202756 & Above) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG 1/4 GAS

$5.49

$

In Stock, only 4 left!

0

2

BCS America 311.12151

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12152

SCREW TE M8 X 30

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.32562

SCREW M6 X 16

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 2 left!

0

6

BCS America 31211120

NUT M12

$1.49

$

In Stock, Qty 5

0

7

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

8

BCS America 312.41124

NUT

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 31312080

STUD M8 X 46 X 20 X 12

$1.99

$

In Stock, only 1 left!

0

10

BCS America 313.12084

STUD M8 X 58 X 16 X 16

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 313.12088

STUD M8 X 40 X 14 X 14

$8.49

$

Usually ships in 5-8 days

0

12

BCS America 31312090

STUD

$13.99

$

Usually ships in 5-8 days

0

13

BCS America 313.12094

STUD M8 X70 X 16 X 16 8G

$2.49

$

Usually ships in 5-8 days

0

14

BCS America 313.12101

STUD M10 X 37 X 19 X 15 8G

$7.99

$

Usually ships in 5-8 days

0

15

BCS America 313.12116

STUD

$10.99

$

Usually ships in 5-8 days

0

16

BCS America 313.12125

STUD

$4.49

$

In Stock, Qty 13

0

17

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, Qty 5

0

18

BCS America 31421130

SUPER WASHER 12 DIN 6796

$1.99

$

Usually ships in 5-8 days

0

19

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

20

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, only 3 left!

0

21

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, only 2 left!

0

22

BCS America 379.11532

BALL 15/32 RIV RB-11.906

$1.49

$

In Stock, only 3 left!

0

23

BCS America 38111400

O-RING 2056 14.00 X 1.78

$0.99

$

Usually ships in 5-8 days

0

24

BCS America 512.49625

SYNCHRONIZED PTO COVER 745

$

$

Currently unavailable

25

BCS America 531.43068

FLANGE, REVERSE SPEED

$156.99

$

Usually ships in 5-8 days

0

26

BCS America 531.496

GEARBOX 745 / 606-605

$

$

Currently unavailable

27

BCS America 532.49601

REAR COVER

$520.99

$

Usually ships in 5-8 days

0

28

BCS America 551.02678

RUBBER RING

$1.49

$

Usually ships in 5-8 days

0

29

BCS America 561.43878

BRACKET CLUTCH CONTRAST

$33.99

$

Usually ships in 5-8 days

0

30

BCS America 531.4388

LEVER RELEASE

$

$

Currently unavailable

31

BCS America 561.43883

CONTRAST DIFFERENTIAL SHEATH

$14.99

$

Usually ships in 5-8 days

0

32

BCS America 56148670

STOP RING NUT

$5.49

$

Usually ships in 5-8 days

0

33

BCS America 561.48821

BUSHING

$3.99

$

Usually ships in 5-8 days

0

34

BCS America 561.49634

STOP PIECE

$

$

Currently unavailable

35

BCS America 562.43113

CLUTCH LEVER

$40.99

$

Usually ships in 5-8 days

0

36

BCS America 564.43871

ROD

$111.99

$

Usually ships in 5-8 days

0

37

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

38

BCS America 580.02429

CLAMP, CABLE

$5.99

$

Usually ships in 5-8 days

0

39

BCS America 580.02666

CAP, WITH MEASURING ROD

$28.99

$

Usually ships in 5-8 days

0

40

BCS America 580.42167

END, SHEATH

$2.99

$

In Stock, only 1 left!

0

41

BCS America 580.42202

SCREW ADJUSTING M8

$6.99

$

In Stock, only 1 left!

0

42

BCS America 580.43053

PARALLEL PIN D 6 X 20

$1.49

$

Usually ships in 5-8 days

0

43

BCS America 580.43069

GASKET

$1.99

$

In Stock, only 4 left!

0

44

BCS America 580.43117

GASKET, COVER

$2.99

$

In Stock, only 2 left!

0

45

BCS America 580.43129

BELLOWS

$24.99

$

In Stock, only 1 left!

0

46

BCS America 580.43303

DRILLED PIN

$

$

Currently unavailable

47

BCS America 580.43881

SPRING

$7.99

$

Usually ships in 5-8 days

0

48

BCS America 580.48369

P.T.O. SPRING

$45.99

$

Usually ships in 5-8 days

0

49

BCS America 580.48822

SPRING

$10.99

$

Usually ships in 5-8 days

0

50

BCS America 580.49604

COVER GASKET

$

$

Not available

51

BCS America 580.49633

COVER GASKET

$3.49

$

Usually ships in 5-8 days

0

52

BCS America 58049670

SHEATH CABLE

$30.99

$

Usually ships in 5-8 days

0

53

BCS America 590.15425

CAP WITH MEASURING ROD

$25.99

$

Usually ships in 5-8 days

0

54

BCS America 590.42768

PIN

$37.99

$

Usually ships in 5-8 days

0

55

BCS America 590.43876

COVER DIFFERENTIAL

$

$

Currently unavailable

56

BCS America 590.49656

TOW COUPLING

$39.56

$

Usually ships in 5-8 days

0
