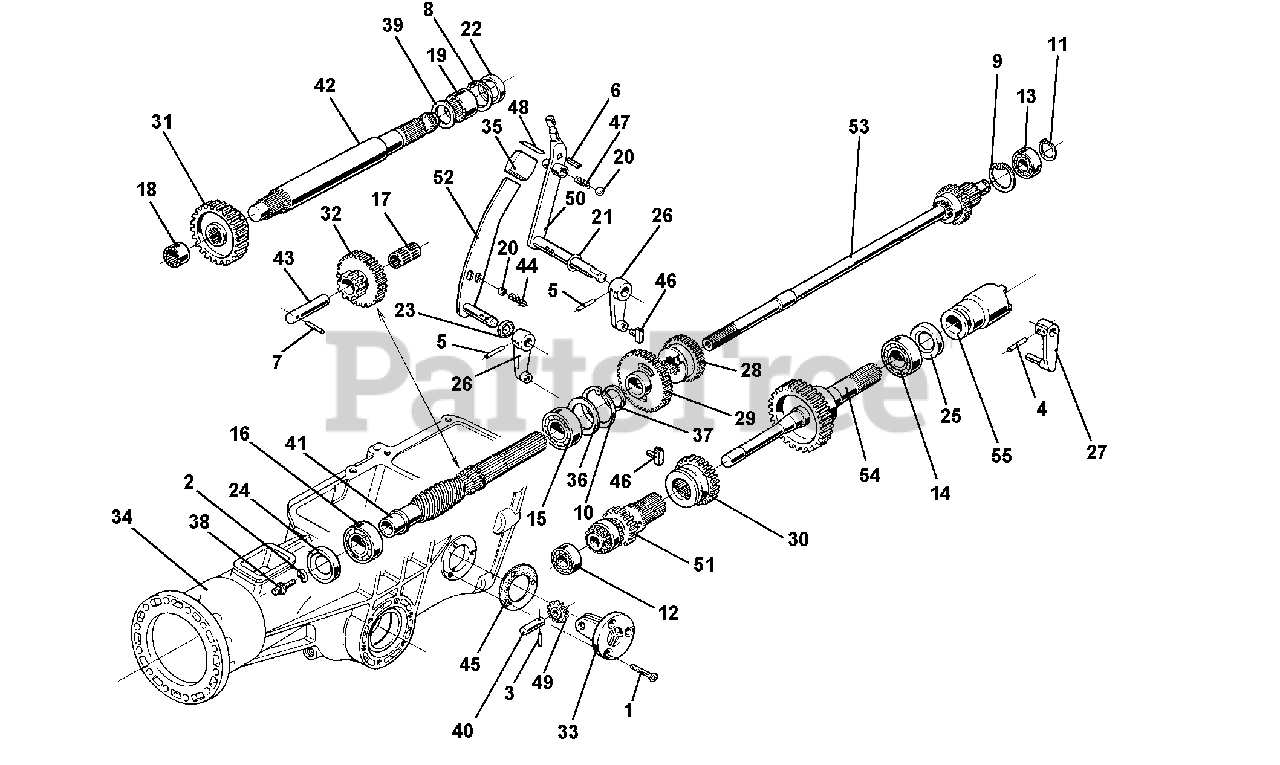

745 - BCS America Two-Wheeled Tractor Gears (SN: 200000 & Above) Parts Diagram

Two-Wheeled Tractor

Gears (SN: 200000 & Above) Parts Diagram

  • Title

1

BCS America 311.32562

SCREW M6 X 16

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

3

BCS America 342.11025

PIN, LOCKING 2.5 X 22 DIN 1481

$3.49

$

Usually ships in 5-8 days

0

4

BCS America 34213020

LOCKING PIN 4 X 20 SPIRAL

$1.49

$

In Stock, Qty 5

0

5

BCS America 342.13024

LOCKING PIN 4 X 24 SPIRAL

$1.49

$

In Stock, Qty 5

0

6

BCS America 342.13025

LOCKING PIN SPIRAL

$1.49

$

In Stock, only 4 left!

0

7

BCS America 34213040

PIN 4 X 45 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 351.11037

CIRCLIP, INTERN D 37 DIN 472

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 351.11042

CIRCLIP, INTERN D 42 DIN 472

$2.49

$

Usually ships in 5-8 days

0

10

BCS America 351.11052

CIRCLIP, INTERN D 52

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 351.21015

CIRCLIP

$0.99

$

Usually ships in 5-8 days

0

12

BCS America 37111150

BEARING 15 X 35 X 11 6202

$

$

Not available

13

BCS America 371.11152

BEARING 15 X 42 X 14 6302

$17.99

$

Usually ships in 5-8 days

0

14

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

15

BCS America 371.11255

BEARING SKF 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

16

BCS America 37141250

BEARING

$101.99

$

Usually ships in 5-8 days

0

17

BCS America 373.20141

ROLL CAGE

$90.99

$

Usually ships in 5-8 days

0

18

BCS America 373.31201

CASING

$26.99

$

Usually ships in 5-8 days

0

19

BCS America 373.31251

CASING

$

$

Currently unavailable

20

BCS America 379.11532

BALL 15/32 RIV RB-11.906

$1.49

$

In Stock, only 3 left!

0

21

BCS America 381.11191

O-RING 115 11.91 X 2.62

$0.99

$

In Stock, only 3 left!

0

22

BCS America 38202500

OIL SEAL

$14.99

$

Usually ships in 5-8 days

0

23

BCS America 382.11201

SEAL, OIL 12 X 19 X 5 STANDARD

$6.49

$

Usually ships in 5-8 days

0

24

BCS America 382.11501

SEAL, OIL 15 X 40 X 10 STANDARD

$10.99

$

Usually ships in 5-8 days

0

25

BCS America 38212500

OIL SEAL 25 X 40 X 7

$10.99

$

Usually ships in 5-8 days

0

26

BCS America 521.43171

LEVER, SPEED CHG SLDG GR

$49.99

$

Usually ships in 5-8 days

0

27

BCS America 523.43168

SLIDE LEVER

$86.99

$

Usually ships in 5-8 days

0

28

BCS America 524.4806

SLIDER SPEEDS

$

$

Currently unavailable

29

BCS America 524.48078

WHEELS FIRST SPEED

$117.32

$

Usually ships in 5-8 days

0

30

BCS America 524.49608

REDUCTION UNIT SLIDER

$262.99

$

Usually ships in 5-8 days

0

31

BCS America 524.49627

GEAR Z 24

$292.99

$

Usually ships in 5-8 days

0

32

BCS America 524.49631

DOUBLE GEAR

$398.99

$

Usually ships in 5-8 days

0

33

BCS America 531.43068

FLANGE, REVERSE SPEED

$156.99

$

Usually ships in 5-8 days

0

34

BCS America 531.496

GEARBOX 745 / 606-605

$

$

Currently unavailable

35

BCS America 552.48072

KNOB REDUCTION UNIT LEVER

$5.49

$

Usually ships in 5-8 days

0

36

BCS America 563.48056

RING C-72

$2.99

$

Usually ships in 5-8 days

0

37

BCS America 563.48077

WASHER 25 X 32 X 2 C-72

$2.99

$

Usually ships in 5-8 days

0

38

BCS America 563.49558

CENTERING SCREW M8

$23.99

$

Usually ships in 5-8 days

0

39

BCS America 563.49629

WASHER

$

$

Currently unavailable

40

BCS America 564.43074

PIN

$45.99

$

Usually ships in 5-8 days

0

41

BCS America 564.49605

WORM GEAR

$329.99

$

Usually ships in 5-8 days

0

42

BCS America 564.49628

SYNCHRONIZED P.T.O. SHAFT

$223.99

$

Usually ships in 5-8 days

0

43

BCS America 564.49632

PIN

$22.99

$

Usually ships in 5-8 days

0

44

BCS America 580.42059

SPRING

$12.99

$

Usually ships in 5-8 days

0

45

BCS America 580.43069

GASKET

$1.99

$

In Stock, only 4 left!

0

46

BCS America 580.43086

SHOE

$10.99

$

In Stock, only 1 left!

0

47

BCS America 580.43176

SPRING

$2.49

$

Usually ships in 5-8 days

0

48

BCS America 580.43321

PLATE SLOW/FAST SPEEDS

$9.99

$

Usually ships in 5-8 days

0

49

BCS America 590.43071

REVERSE SPEED GEAR

$82.99

$

Usually ships in 5-8 days

0

50

BCS America 590.48045

GEARBOX LEVER

$156.99

$

Usually ships in 5-8 days

0

51

BCS America 590.48065

GEAR TRIPLE

$297.99

$

Usually ships in 5-8 days

0

52

BCS America 590.48069

LEVER REDUCTION UNIT

$72.99

$

Usually ships in 5-8 days

0

53

BCS America 590.49606

CLUTCH SHAFT

$455.99

$

In Stock, only 1 left!

0

54

BCS America 590.49612

P.T.O. SHAFT

$440.99

$

Usually ships in 5-8 days

0

55

BCS America 590.49615

P.T.O. COUPLING

$165.99

$

Usually ships in 5-8 days

0
