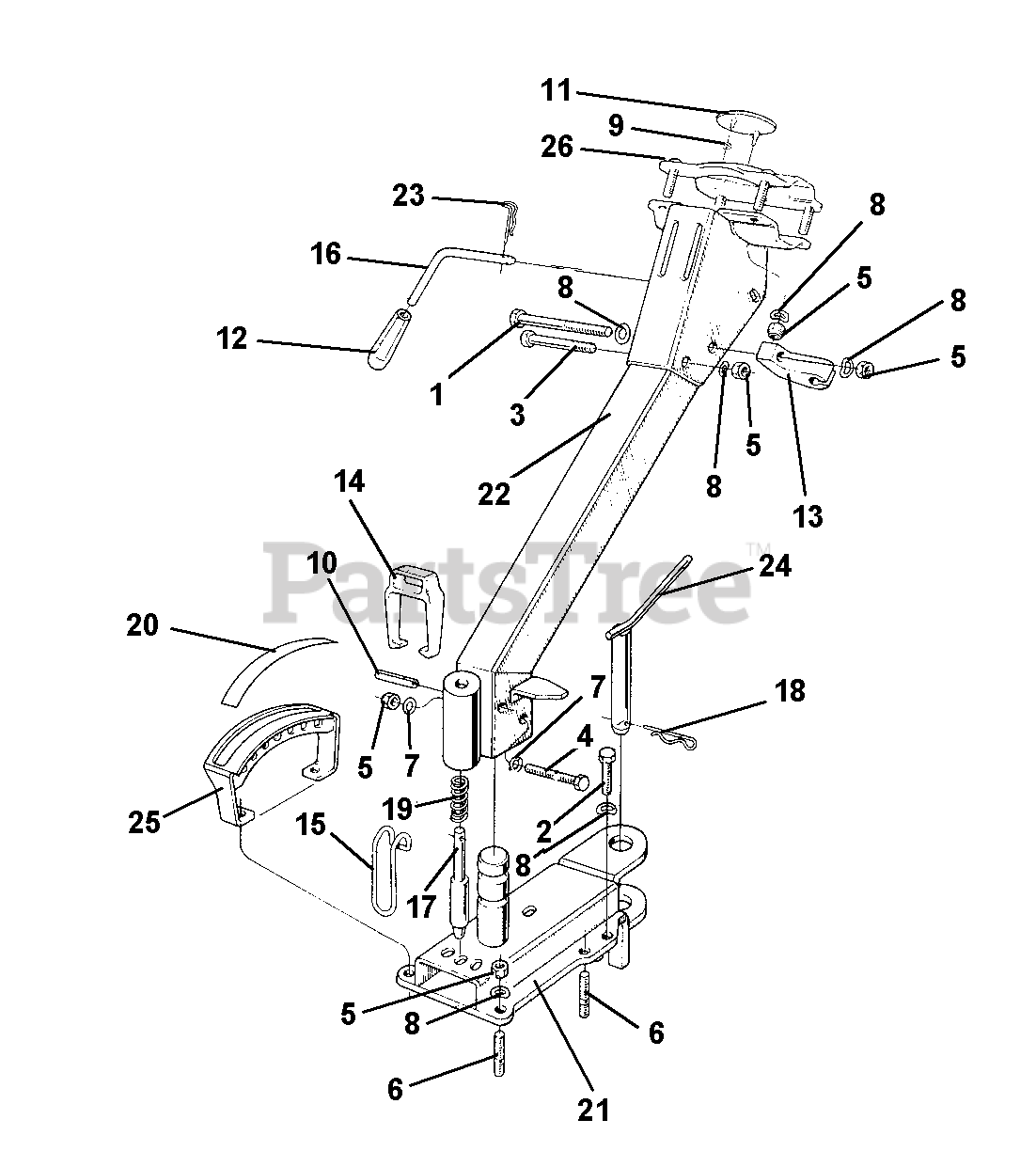

745 - BCS America Two-Wheeled Tractor Steering Column (SN: 203520 & Above) Parts Diagram

Two-Wheeled Tractor

Steering Column (SN: 203520 & Above) Parts Diagram

  • Title

1

BCS America 311.11165

SCREW TE M8 X 100

$1.99

$

Usually ships in 5-8 days

0

2

BCS America 311.12151

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12156

SCREW M8 X 60

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 311.13096

SCREW TE M8 X 55

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

6

BCS America 313.12082

STUD M8 X 38 X 14 X 20

$1.99

$

In Stock, only 3 left!

0

7

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, only 4 left!

0

8

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 9

0

9

BCS America 314.40004

WASHER, LOCK FOR PINS

$0.99

$

In Stock, Qty 10

0

10

BCS America 342.13084

SPIRAL PIN 8 X 40

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 530.48656

BCS LOGO

$10.99

$

Usually ships in 5-8 days

0

12

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

13

BCS America 55243340

SUPPORT CONTROL ROD CUT

$

$

Not available

14

BCS America 552.49668

PASSAGE FOR SHEATH

$9.49

$

In Stock, only 1 left!

0

15

BCS America 56142880

LEVER

$17.99

$

Usually ships in 5-8 days

0

16

BCS America 56148280

LEVER FOR SECTOR

$13.99

$

In Stock, only 1 left!

0

17

BCS America 562.42879

PUSH ROD

$36.99

$

Usually ships in 5-8 days

0

18

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

19

BCS America 580.40261

SPRING

$7.49

$

Usually ships in 5-8 days

0

20

BCS America 580.47955

PLATE 5 SPEEDS WALKING TRAC

$2.99

$

In Stock, only 1 left!

0

21

BCS America 580.49777

STEERING COLUMN SUPPORT

$524.99

$

Usually ships in 5-8 days

0

22

BCS America 580.49778

STEERING COLUMN

$

$

Currently unavailable

23

BCS America 580.50533

PIN

$1.99

$

In Stock, only 2 left!

0

24

BCS America 590.42768

PIN

$37.99

$

Usually ships in 5-8 days

0

25

BCS America 590.48052

SELECTOR

$124.99

$

Usually ships in 5-8 days

0

26

BCS America 590.48266

COVER ENDS

$54.99

$

Usually ships in 5-8 days

0
