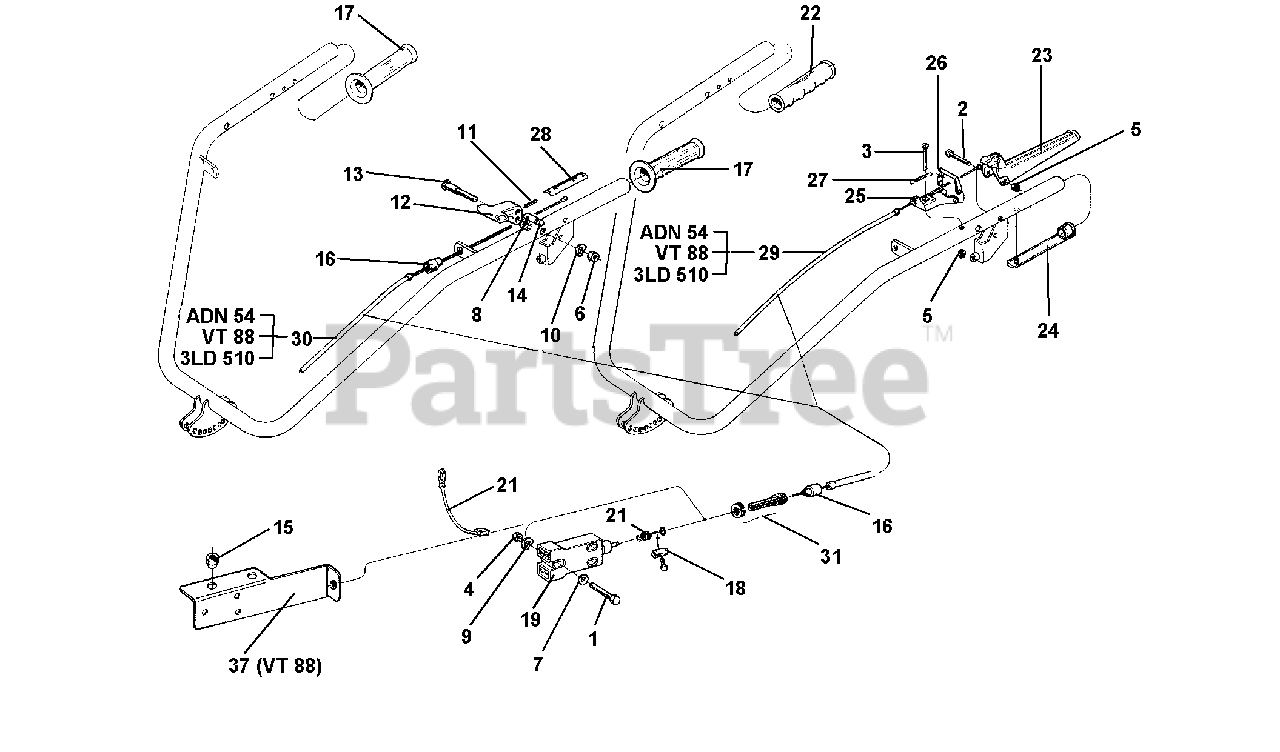

745 - BCS America Two-Wheeled Tractor Stop Control (SN: 200000 - 202449) Parts Diagram

Two-Wheeled Tractor

Stop Control (SN: 200000 - 202449) Parts Diagram

  • Title

1

BCS America 311.11086

SCREW TE M4 X 25

$1.49

$

In Stock, Qty 8

0

2

BCS America 311.11097

SCREW TE M6 X 45

$1.49

$

In Stock, only 1 left!

0

3

BCS America 311.31064

SCREW TSV M6 X 40

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 31211040

NUT M4

$0.99

$

In Stock, only 3 left!

0

5

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, Qty 8

0

6

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

7

BCS America 314.11043

FLAT WASHER 4.3

$0.99

$

In Stock, Qty 8

0

8

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, only 4 left!

0

9

BCS America 314.23043

LOCK WASHER B 4.3

$0.99

$

In Stock, Qty 6

0

10

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 11

0

11

BCS America 34211040

PIN, LOCKING 4 X 20

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 552.48484

LOCKING LEVER

$11.99

$

Usually ships in 5-8 days

0

13

BCS America 561.48285

PIN

$20.99

$

Usually ships in 5-8 days

0

14

BCS America 561.48286

DRILLED PIN

$22.99

$

Usually ships in 5-8 days

0

15

BCS America 563.49757

NUT M6

$

$

Currently unavailable

16

BCS America 580.42167

END, SHEATH

$2.99

$

Usually ships in 5-8 days

0

17

BCS America 580.42692

KNOB RUBBER HOLE D 25

$

$

Currently unavailable

18

BCS America 580.48002

CABLE CLAMP

$3.99

$

Usually ships in 5-8 days

0

19

BCS America 580.48009

STOP SWITCH

$32.99

$

Usually ships in 5-8 days

0

20

BCS America 58048010

SWITCH SPRING

$2.99

$

In Stock, only 1 left!

0

21

BCS America 580.48011

SWITCH CABLES

$4.49

$

Usually ships in 5-8 days

0

22

BCS America 580.48014

GRIP

$

$

Currently unavailable

23

BCS America 580.48015

MOVABLE MOTOR STOP BODY

$

$

Currently unavailable

24

BCS America 580.48016

FIXED BODY

$

$

Currently unavailable

25

BCS America 580.48017

SHEATH LOCK

$

$

Currently unavailable

26

BCS America 580.48018

MOVABLE BODY LOCK

$

$

Currently unavailable

27

BCS America 580.48019

SPRING

$

$

Currently unavailable

28

BCS America 580.48485

RUN-STOP LABEL

$

$

Currently unavailable

29

BCS America 580.49505

SHEATH CABLE

$31.99

$

Usually ships in 5-8 days

0

30

BCS America 580.49509

SHEATH CABLE

$

$

Currently unavailable

31

BCS America 581.50309

ADJUSTING SCREW

$13.99

$

Usually ships in 5-8 days

0

32

BCS America 590.49511

SUPPORT

$25.84

$

Usually ships in 5-8 days

0
