74501 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 210000001 - 210999999) (2001) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

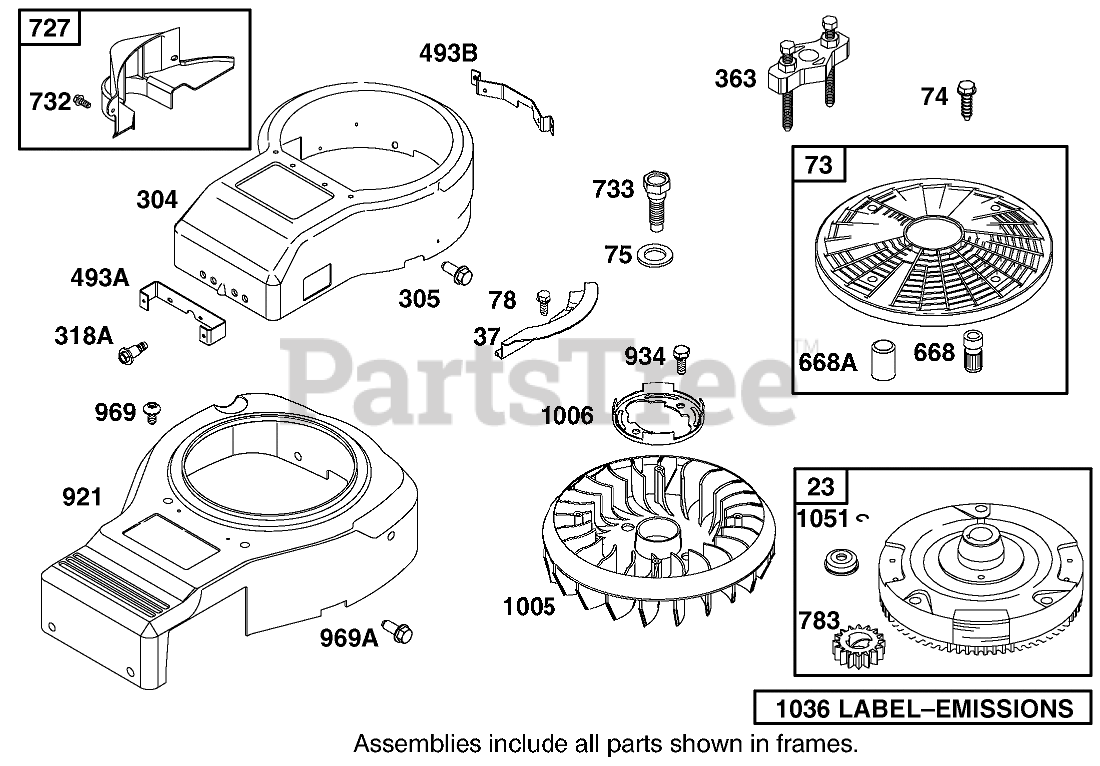

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

  • Title

23

Briggs & Stratton 693556

Flywheel
(Superseded to 595094)

Note: Obtain parts from www.briggsandstratton.com

$238.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 690456

Flywheel Guard

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 494439

Screen-Rotating

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 691674

Screw

Note: Obtain parts from www.briggsandstratton.com

$2.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 690582

Washer-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

78

Briggs & Stratton 690661

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

304

Briggs & Stratton 690497

Blower Housing

Note: Obtain parts from www.briggsandstratton.com

$199.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

318A

Briggs & Stratton 692127

Screw (Fuel Tank)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

493A

Briggs & Stratton 690493

Bracket-Mounting (Front)

Note: Obtain parts from www.briggsandstratton.com

$22.99

$

Usually ships in 2-12 days

0

493B

Briggs & Stratton 690494

Bracket-Mounting (Rear)

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 691500

Spacer

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

668A

Briggs & Stratton 691215

Spacer

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

727

Briggs & Stratton 490324

Cover-Starter

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

732

Briggs & Stratton 691002

Screw (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 2 left!

0

733

Briggs & Stratton 691658

Screw-Crankshaft Extension
(Superseded to 698139)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 5

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

921

Briggs & Stratton 692679

Blower Housing Cover

Note: Obtain parts from www.briggsandstratton.com

$83.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 691058

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 12

0

969

Briggs & Stratton 690365

Screw-Torx

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, only 1 left!

0

969A

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 695492

Fan-Flywheel
(Superseded to 796201)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, Qty 20+

0

1006

Briggs & Stratton 690452

Retainer-Fan

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 695700

Label?Emission

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 6

0
