74501 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

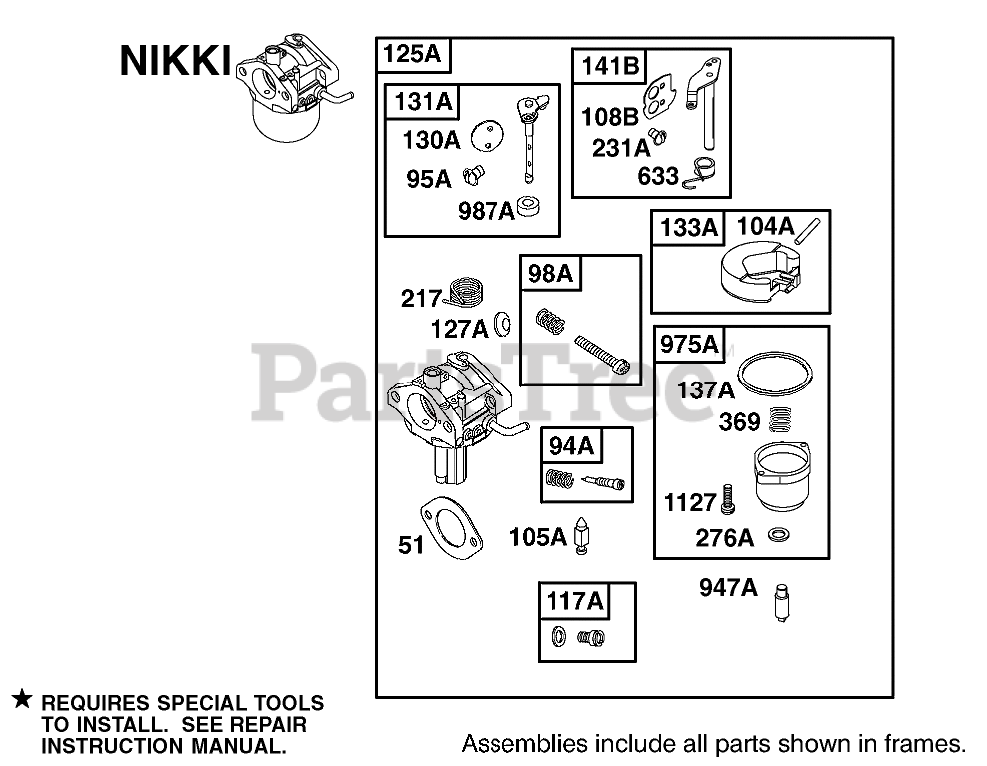

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692137

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

94A

Briggs & Stratton 695425

Idle Mixture Kit
(Superseded to 793610)

Note: Obtain parts from www.briggsandstratton.com

$22.99

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 690718

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 2 left!

0

98A

Briggs & Stratton 695408

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 2 left!

0

105A

Briggs & Stratton 694922

Float Needle Valve
(Superseded to 696136)

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, only 2 left!

0

108B

Briggs & Stratton 695419

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 695415

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 695416

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 690727

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 3 left!

0

130A

Briggs & Stratton 695418

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, only 1 left!

0

131A

Briggs & Stratton 695421

Kit-Throttle Shaft

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 694914

Carburetor Float ASM

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 2 left!

0

137A

Briggs & Stratton 695426

Gasket-Float Bowl

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 11

0

141B

Briggs & Stratton 695420

Choke Shaft Kit
(Superseded to 792777)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

231A

Briggs & Stratton 690718

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 2 left!

0

276A 695410

Toro 1

Label-Emissions

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

633

Briggs & Stratton 695414

Seal-Shaft, Choke and Throttle
(Superseded to 806131)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

Usually ships in 2-12 days

0

947A

Briggs & Stratton 695423

Solenoid-Fuel
(Superseded to 596038)

Note: Obtain parts from www.briggsandstratton.com

$87.99

$

In Stock, only 3 left!

0

975A

Briggs & Stratton 695417

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

987A

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 3 left!

0

1127

Briggs & Stratton 695407

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0
