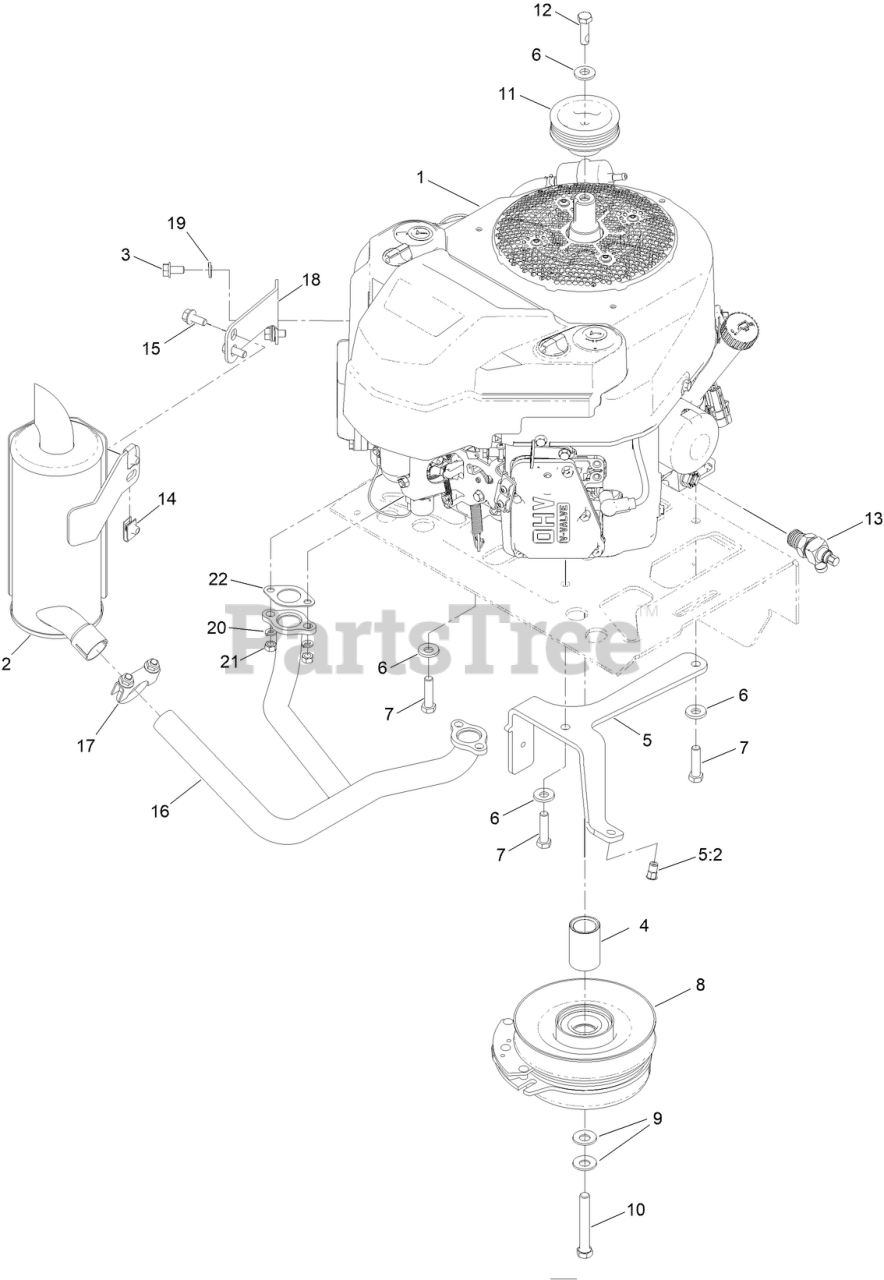

74532 - Toro 32" GrandStand HDM Stand-On Mower (SN: 400000000 - 417099999) Engine Assembly Parts Diagram

32" GrandStand HDM Stand-On Mower

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI FS600

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI FS600

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: Not serviced separately

$

$

Not available

1:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: Not illustrated

$

$

Not available

1:2

KAWASAKI 49019-0031 FUEL FILTER

Note: Not illustrated

$

$

Not available

1:2

KAWASAKI 49019-0031 FUEL FILTER

Note: Not serviced separately

$

$

Not available

1:2

KAWASAKI 49019-0031 FUEL FILTER

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:3

KAWASAKI 92070-7004 PLUG-SPARK BPR4ES

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:3

KAWASAKI 92070-7004 PLUG-SPARK BPR4ES

Note: Not illustrated

$

$

Not available

1:3

KAWASAKI 92070-7004 PLUG-SPARK BPR4ES

Note: Not serviced separately

$

$

Not available

1:4

KAWASAKI 11013-7046 FOAM PRE-FILTER

Note: Not serviced separately

$

$

Not available

1:4

KAWASAKI 11013-7046 FOAM PRE-FILTER

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:4

KAWASAKI 11013-7046 FOAM PRE-FILTER

Note: Not illustrated

$

$

Not available

1:5

KAWASAKI 11013-0752 AIR FILTER

Note: Not illustrated

$

$

Not available

1:5

KAWASAKI 11013-0752 AIR FILTER

Note: Not serviced separately

$

$

Not available

1:5

KAWASAKI 11013-0752 AIR FILTER

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

2

Toro 135-5025

MUFFLER-VERTICAL KA

$236.99

$

Usually ships in 3-6 days

0

3

Toro 33104-016

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro 135-5028

SPACER-CLUTCH

$8.49

$

In Stock, only 2 left!

0

5

Toro 135-6711

ASM-CLUTCH ANCHOR W/INSERT

$69.99

$

Usually ships in 3-6 days

0

5:2

Toro 138-2758

NUT-CLINCH,HEX

$1.99

$

In Stock, only 1 left!

0

6

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 142-3586

CLUTCH 105

$381.99

$

In Stock, only 2 left!

0

9

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

10

Toro 126-7198

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$20.99

$

In Stock, only 2 left!

0

11

Toro 135-1198

PULLEY, CRANK

$42.99

$

Usually ships in 3-6 days

0

12

Toro 135-7890

SCREW-HH, PATCH,

$1.49

$

Usually ships in 3-6 days

0

13

Toro 135-2660

DRAIN-OIL VALVE

Note: Torque to 23-29 ft-lb

$60.99

$

Usually ships in 3-6 days

0

14

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 14

0

15

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

16

Toro 135-5026

MANIFOLD-VERTICAL KA EXH

$139.99

$

Usually ships in 3-6 days

0

17

Toro 104-4090

Clamp-Muffler

$25.99

$

Usually ships in 3-6 days

0

18

Toro 135-3828-03

BRACKET-MUFFLER VERTICAL

$16.99

$

Usually ships in 3-6 days

0

19

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

20

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

21

Toro 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

22

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0
