74534 - Toro 36" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) DECK ASSEMBLY Parts Diagram

36" GrandStand Stand-On Mower

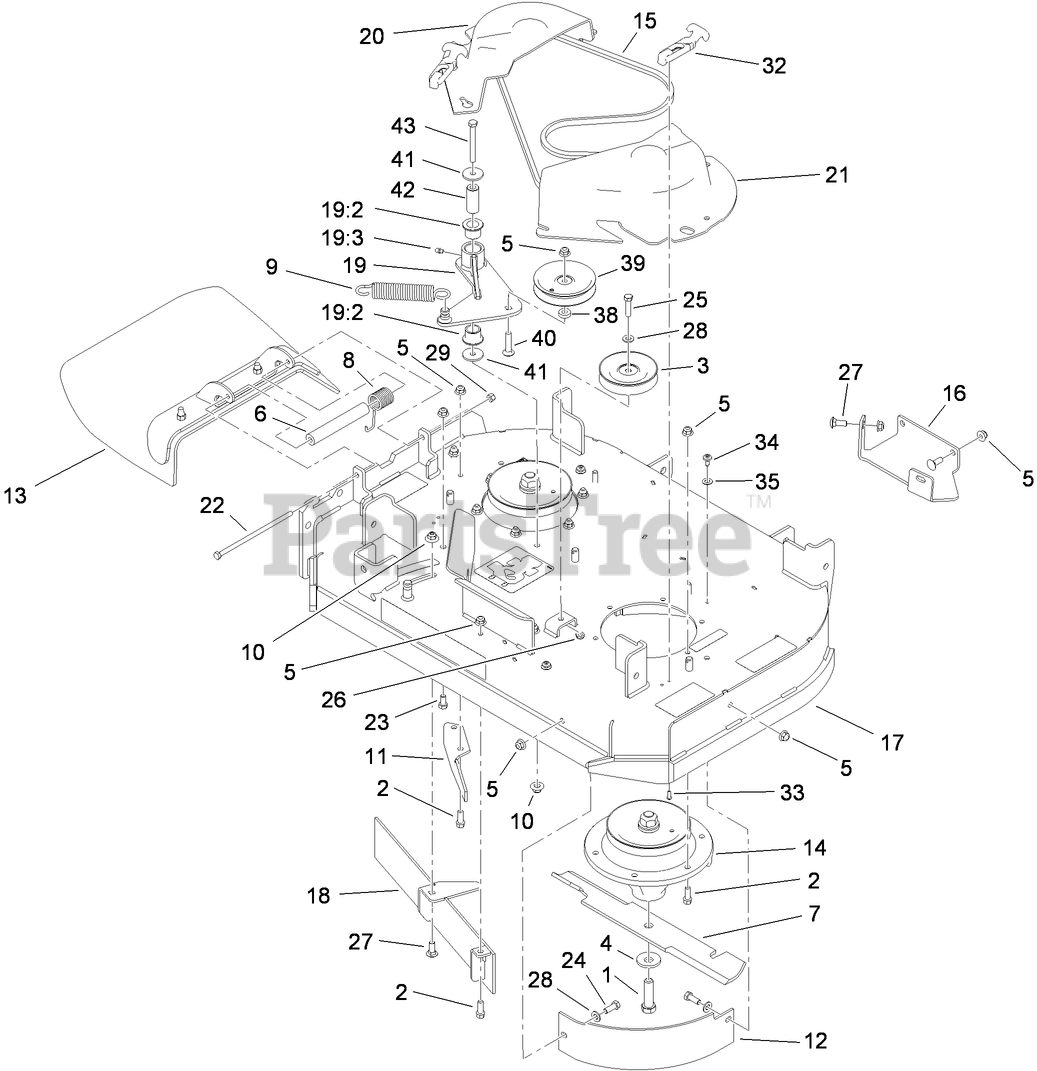

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 10

0

2

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 92-7099

PULLEY-IDLER

$72.99

$

In Stock, only 2 left!

0

4

Toro 103-0865

Washer-Blade Bolt, Heavy

$6.49

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

7

Toro 105-7781-03

BLADE-18IN, HI FLOW

$26.99

$

In Stock, Qty 14

0

8

Toro 108-4052

SPRING-TORSION

$27.99

$

In Stock, only 2 left!

0

9

Toro 119-0394

SPRING-EXTENSION

$34.99

$

In Stock, only 1 left!

0

10

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 110-0754-01

BAFFLE-DISCHARGE

$42.99

$

Usually ships in 3-6 days

0

12

Toro 110-6903-03

BAFFLE-FRONT, LH

$77.99

$

Usually ships in 3-6 days

0

13

Toro 119-2347

DEFLECTOR ASM

$297.99

$

Usually ships in 3-6 days

0

14

Toro 117-7638

SPINDLE ASM

$535.99

$

In Stock, only 1 left!

0

15

Toro 117-7641

BELT-V

$44.99

$

In Stock, only 3 left!

0

16

Toro 117-7687-01

PLATE-SKID

$78.99

$

Usually ships in 3-6 days

0

17

Toro 119-0151

DECK ASM

$

$

Not available

18

Toro 119-0153-03

FRONT BAFFLE ASM

$142.99

$

Usually ships in 3-6 days

0

19

Toro 119-0180

IDLER ARM ASM

$206.99

$

Usually ships in 3-6 days

0

19:2

Toro 33-3090

BUSHING

$9.99

$

Usually ships in 3-6 days

0

19:3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

20

Toro 119-1802

COVER-BELT, RH

$125.99

$

Usually ships in 3-6 days

0

21

Toro 119-1803

COVER-BELT, LH

$125.99

$

Usually ships in 3-6 days

0

22

Toro 322-50

SCREW-HH

$6.99

$

In Stock, only 4 left!

0

23

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

24

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

27

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 103-4080

LATCH-RUBBER

$37.99

$

In Stock, Qty 8

0

33

Toro 3274-39

SCREW-HSBH

$6.49

$

In Stock, only 2 left!

0

34

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

Usually ships in 3-6 days

0

35

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

38

Toro 5-0652

SPACER

$8.49

$

In Stock, only 3 left!

0

39

Toro 93-1622

PULLEY-IDLER

$53.99

$

In Stock, Qty 7

0

40

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 9

0

41

Toro 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

42

Toro 119-0208

SPACER-PLAIN

$19.99

$

Usually ships in 3-6 days

0

43

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 11

0
