74559 - Toro 52" GrandStand Stand-On Mower (SN: 290000001 - 290000156) (2009) 52 INCH DECK ASSEMBLY Parts Diagram

52" GrandStand Stand-On Mower

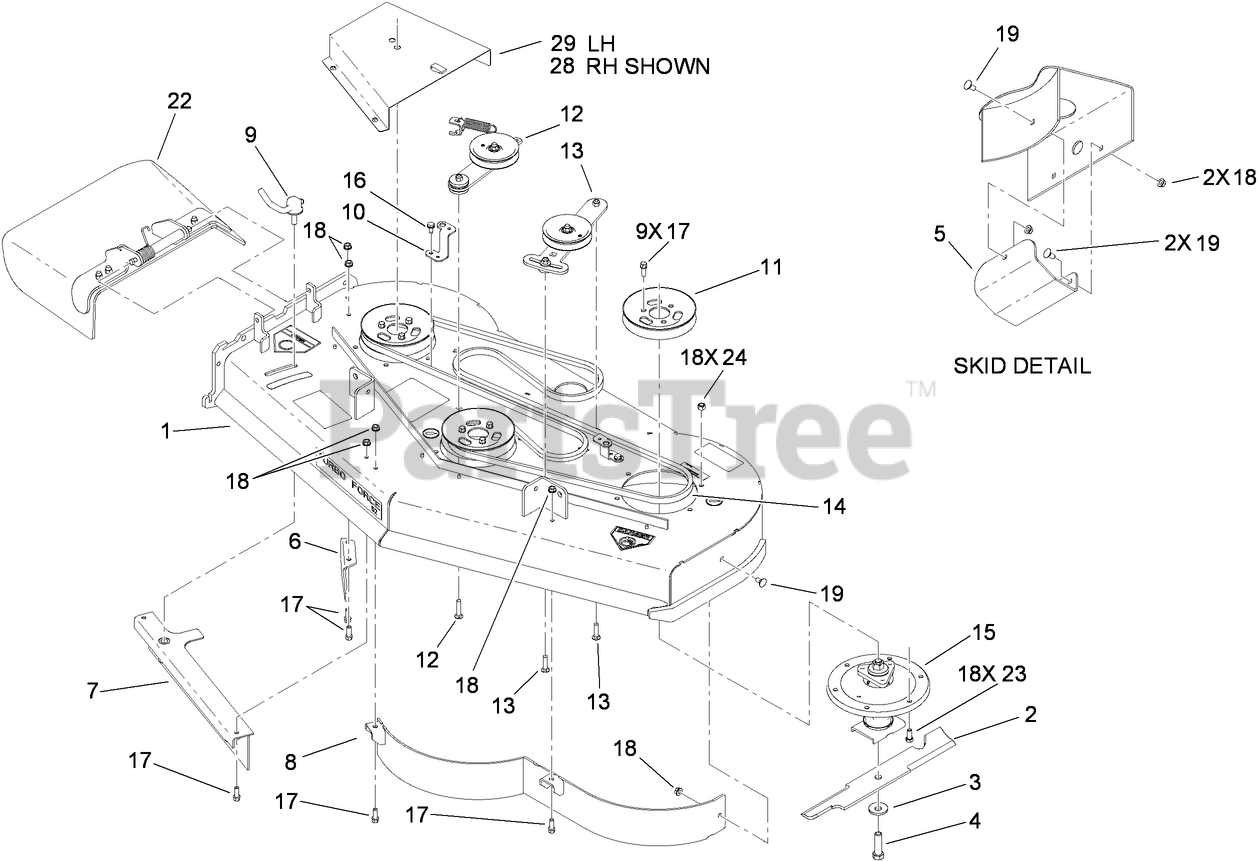

52 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 117-3634

DECK ASM

$

$

Not available

2

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 20+

0

3

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

4

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 20+

0

5

Toro 114-1908-01

SKID

$82.99

$

Usually ships in 3-6 days

0

6

Toro 106-3216-01

BAFFLE-DISCHARGE

$23.99

$

Usually ships in 3-6 days

0

7

Toro 105-7755-01

BAFFLE

$216.99

$

Usually ships in 3-6 days

0

8

Toro 114-1979-01

BAFFLE-52 INCH

$263.99

$

Usually ships in 3-6 days

0

9

Toro 107-1664

LEVER ASM

$72.99

$

In Stock, only 4 left!

0

10

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 3 left!

0

11

Toro 105-7735

Pulley

$45.99

$

In Stock, Qty 6

0

12

Toro 117-0445

SPRING IDLER ASM

$188.99

$

Usually ships in 3-6 days

0

13

Toro 117-0446

IDLER ADJUST ASM

$188.99

$

Usually ships in 3-6 days

0

14

Toro 114-0454

BELT-V

$79.99

$

Usually ships in 3-6 days

0

15

Toro 107-8504

SPINDLE ASM

$410.99

$

In Stock, Qty 8

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 114-1910

DEFLECTOR ASM

$263.99

$

Usually ships in 3-6 days

0

23

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

24

Toro 33025-00

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

28

Toro 117-3550

LH BELT COVER ASM

$

$

Not available

29

Toro 117-3551

RH BELT COVER ASM

$

$

Not available
