74560 (DH 140) - Toro Lawn Tractor (SN: 310000001 - 310999999) (2010) 92CM DECK ASSEMBLY Parts Diagram

Lawn Tractor

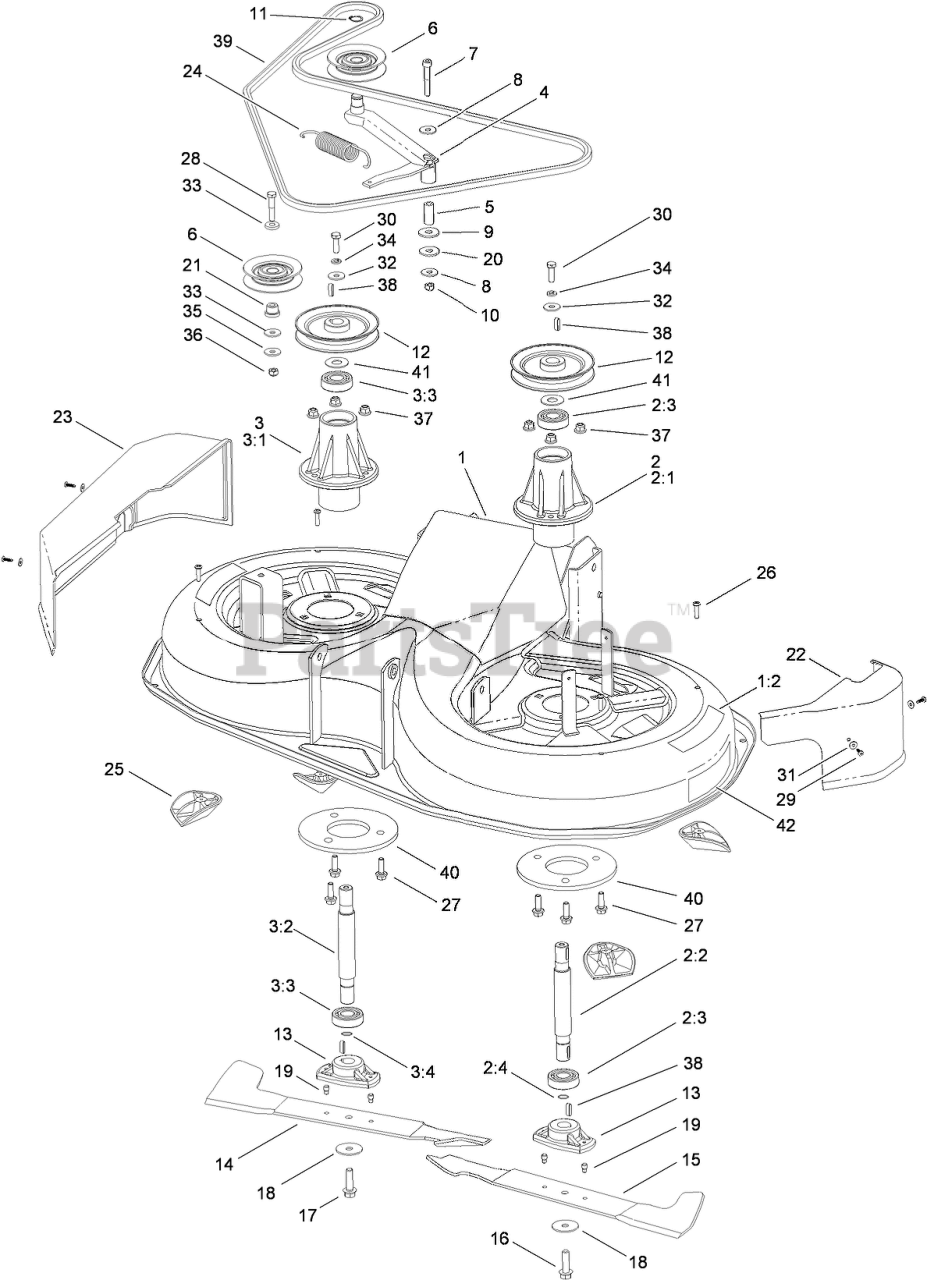

92CM DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 119-5508

DECK ASM

$

$

Currently unavailable

1:2

Toro 119-2726

DECAL-DANGER

$

$

Currently unavailable

2

Toro 119-5425

LEFT SPINDLE ASM

$350.99

$

Usually ships in 3-6 days

0

2:1

Toro 119-5426

HOUSING-SPINDLE

$174.99

$

Usually ships in 3-6 days

0

2:2

Toro 119-5409

SHAFT-BLADE, LEFT

$

$

Currently unavailable

2:3

Toro 119-5505

BEARING

$

$

Currently unavailable

2:4

Toro 119-5410

RING-LOCK

$

$

Currently unavailable

3

Toro 119-5427

RIGHT SPINDLE ASM

$350.99

$

Usually ships in 3-6 days

0

3:1

Toro 119-5426

HOUSING-SPINDLE

$174.99

$

Usually ships in 3-6 days

0

3:2

Toro 119-5411

SHAFT-BLADE, RIGHT

$

$

Currently unavailable

3:3

Toro 119-5505

BEARING

$

$

Currently unavailable

3:4

Toro 119-5410

RING-LOCK

$

$

Currently unavailable

4

Toro 119-5412

ARM-IDLER

$

$

Currently unavailable

5

Toro 119-5547

SPACER

$

$

Currently unavailable

6

Toro 119-5414

PULLEY-IDLER

$

$

Not available

7

Toro 60-6700

BOLT-HH

$1.99

$

Usually ships in 3-6 days

0

8

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable

9

Toro 119-5548

WASHER-PLAIN

$

$

Currently unavailable

10

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

11

Toro 119-5525

RING-LOCK

$

$

Currently unavailable

12

Toro 119-5416

PULLEY-MOWING BELT, 4.5IN

$102.99

$

Usually ships in 3-6 days

0

13

Toro 119-5506

ADAPTER-MOUNT, BLADE

$

$

Currently unavailable

14

Toro 117-0035

BLADE-RH

$

$

Currently unavailable

15

Toro 117-0036

BLADE-LH

$

$

Currently unavailable

16

Toro 104-3088

SCREW-HEX

$

$

Currently unavailable

17

Toro 104-3091

SCREW-HH, LEFT

$

$

Currently unavailable

18

Toro 104-3092

WASHER-BELLEVILLE

$

$

Currently unavailable

19

Toro 104-3093

PIN-SHEAR, GROOVED

$

$

Currently unavailable

20

Toro 119-5415

WASHER

$

$

Currently unavailable

21

Toro 104-3104

BUSHING

$

$

Currently unavailable

22

Toro 119-5419

GUARD-BELT, LEFT

$

$

Currently unavailable

23

Toro 119-5420

GUARD-BELT, RIGHT

$

$

Currently unavailable

24

Toro 119-5421

SPRING

$

$

Currently unavailable

25

Toro 119-0369

KICKER

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

28

Toro 33114-040

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

29

$

$

Currently unavailable

30

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

31

Toro 104-2984

WASHER

$

$

Currently unavailable

32

Toro 119-5507

WASHER

$

$

Currently unavailable

33

Toro 106-8588

Washer-Flat

$

$

Currently unavailable

34

Toro 104-2927

WASHER-SPRING

$

$

Not available

35

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

36

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

37

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

38

$

$

Currently unavailable

39

Toro 119-2425

BELT-WEDGE, DOUBLE

$

$

Currently unavailable

40

Toro 104-3084

SUPPORT-RING

$

$

Currently unavailable

41

Toro 119-5549

WASHER-PLAIN

$2.49

$

Usually ships in 3-6 days

0

42

Toro 114-3255

DECAL-RECYCLER

$

$

Currently unavailable
