74560 (DH 140) - Toro Lawn Tractor (SN: 310000001 - 310999999) (2010) CENTER SECTION TRANSMISSION ASSEMBLY NO. 119-5386 Parts Diagram

Lawn Tractor

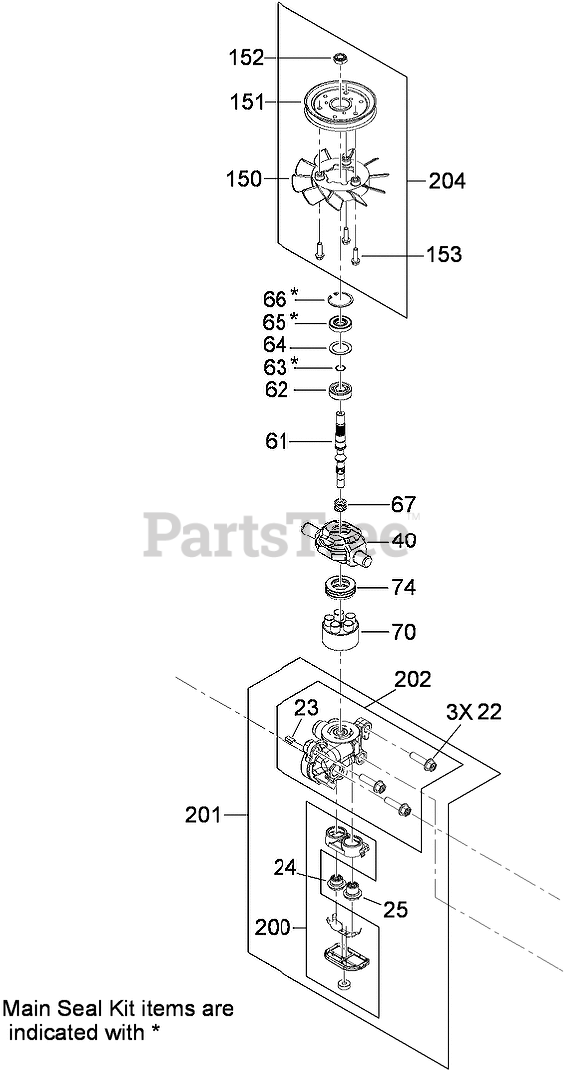

CENTER SECTION TRANSMISSION ASSEMBLY NO. 119-5386 Parts Diagram

  • Title

22

Toro 114-1684

SCREW-HFHC

$11.99

$

Usually ships in 3-6 days

0

23

Toro 119-5528

PLATE-BYPASS

$

$

Currently unavailable

24

Toro 104-5348

CHECK PLUG ASM

$100.99

$

Usually ships in 3-6 days

0

25

Toro 119-5529

CHECK PLUG ASM

$

$

Currently unavailable

40

Toro 115-8319

TRUNNION-PLATE, SWASH

$

$

Currently unavailable

61

Toro 115-8317

SHAFT-INPUT

$77.99

$

Usually ships in 3-6 days

0

62

Toro 119-5530

BEARING-BALL
(Superseded to 94-1904)

$134.99

$

Usually ships in 3-6 days

0

63

Toro 119-5531

RING-RETAINING, WIRE

$2.99

$

Usually ships in 3-6 days

0

64

Toro 104-2104

SPACER

$10.99

$

Usually ships in 3-6 days

0

65

Toro 119-5532

SEAL-LIP

$7.49

$

Usually ships in 3-6 days

0

66

Toro 119-5533

RING-RETAINING

$2.99

$

Usually ships in 3-6 days

0

67

Toro 115-8318

SPRING-HELICAL

$

$

Currently unavailable

70

Toro 115-8321

CYLINDER BLOCK KIT

$

$

Currently unavailable

74

Toro 115-8320

BEARING-THRUST, BALL

$

$

Currently unavailable

150

Toro 105-1927

FAN
(Superseded to 121-5729)

$113.99

$

In Stock, only 3 left!

0

151

Toro 119-5534

PULLEY ASM

$108.99

$

Usually ships in 3-6 days

0

152

Toro 105-1875

NUT-LOCK

$7.99

$

In Stock, only 1 left!

0

153

Toro 105-1897

SCREW

$10.99

$

Usually ships in 3-6 days

0

200

Toro 115-8323

FILTER KIT

$

$

Currently unavailable

201

Toro 119-5535

CENTER SECTION KIT

$

$

Currently unavailable

202

Toro 119-5536

CENTER SECTION KIT

$

$

Currently unavailable

204

Toro 119-5537

FAN PULLEY KIT

$

$

Currently unavailable
