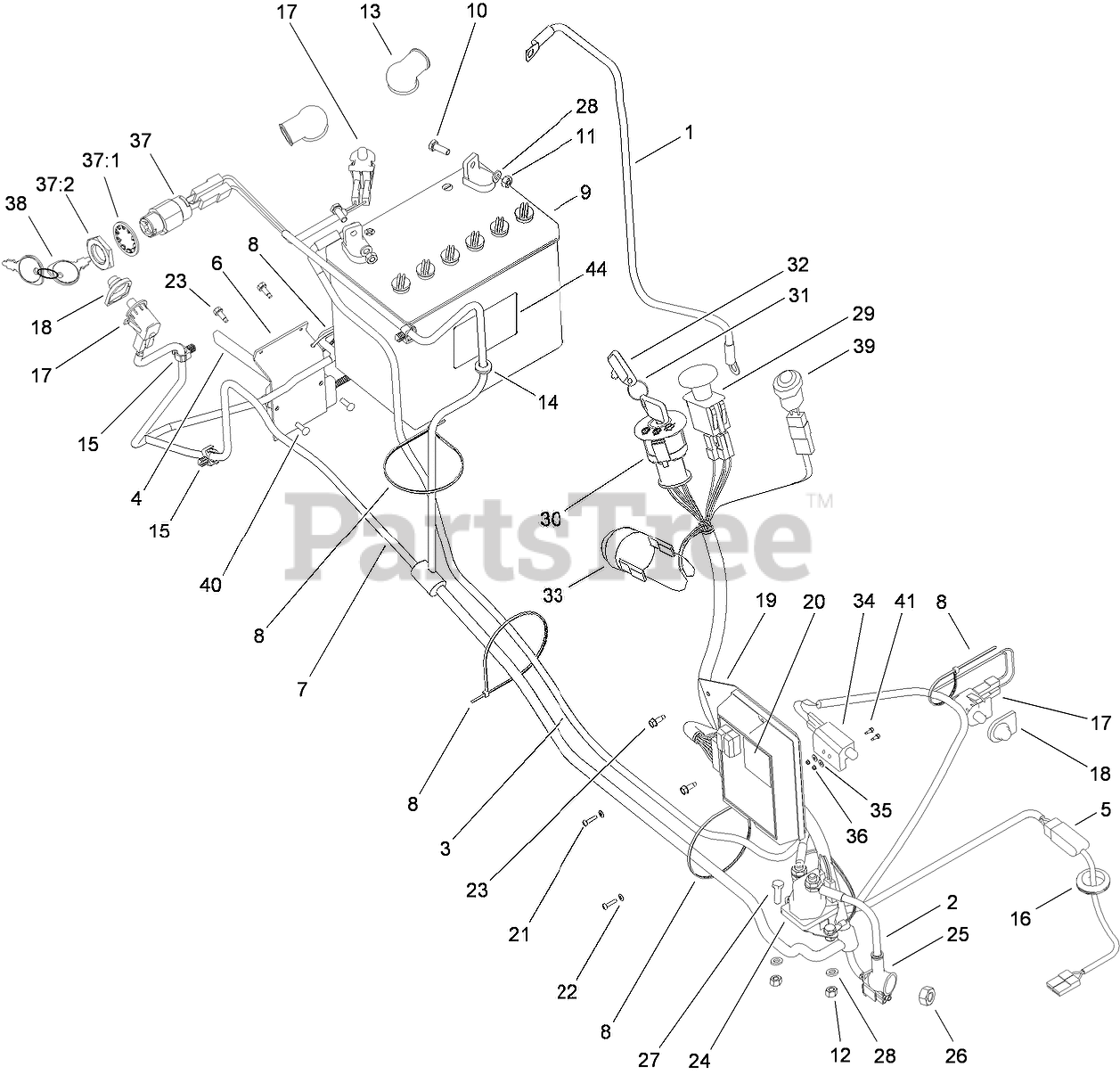

74560 (DH 140) - Toro Lawn Tractor (SN: 310000001 - 310999999) (2010) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 119-5417

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

2

Toro 119-5418

LEAD-STARTER, ELECTRIC

$35.99

$

Usually ships in 3-6 days

0

3

Toro 119-5428

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

4

Toro 119-5429

SWITCH-OMRON

$

$

Currently unavailable

5

Toro 119-5430

HARNESS-CLUTCH

$

$

Currently unavailable

6

Toro 119-5431

BRACKET-SWITCH

$

$

Currently unavailable

7

Toro 119-5432

HARNESS-WIRING

$

$

Currently unavailable

8

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

9

Toro 104-2491

BATTERY
(Superseded to 104-8162)

$

$

Not available

10

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 104-2991

NUT-HEX

$

$

Currently unavailable

12

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

13

Toro 104-3154

BOOT-RUBBER

$

$

Currently unavailable

14

Toro 104-3164

BUSHING

$

$

Currently unavailable

15

Toro 104-3157

CLIP-SNAP

$

$

Currently unavailable

16

Toro 104-2959

BUSHING
(Superseded to 104-3168)

$

$

Not available

17

Toro 104-3179

SWITCH-DELTA
(Superseded to 82-2190)

$14.99

$

In Stock, Qty 20+

0

18

Toro 104-3178

COVER-PROTECTIVE

$

$

Not available

19

Toro 119-5433

BRACKET-SUPPORT, MODULE

$40.99

$

Usually ships in 3-6 days

0

20

Toro 119-5434

MODULE-CONTROL

$

$

Currently unavailable

21

Toro 119-5436

SCREW

$

$

Not available

22

Toro 119-5437

WASHER

$

$

Not available

23

Toro 104-2977

SCREW-TAP

$

$

Not available

24

Toro 104-3189

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 11

0

25

Toro 104-3187

BOOT-RUBBER

$

$

Currently unavailable

26

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 8

0

27

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

28

Toro 104-3193

WASHER

$

$

Currently unavailable

29

Toro 93-9998

SWITCH-PTO

$44.99

$

In Stock, Qty 8

0

30

Toro 119-5438

SWITCH-IGNITION

$160.99

$

Usually ships in 3-6 days

0

31

Toro 119-5439

RING

$

$

Currently unavailable

32

Toro 119-5510

KEY-IGNITION

$

$

Currently unavailable

33

Toro 119-5511

BUZZER

$

$

Not available

34

Toro 119-5440

SWITCH-DELTA

$58.99

$

Usually ships in 3-6 days

0

35

Toro 104-2984

WASHER

$

$

Currently unavailable

36

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

37

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 14

0

37:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 12

0

37:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

38

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 12

0

39

Toro 119-5441

LAMP-INDICATOR

$58.99

$

Usually ships in 3-6 days

0

40

Toro 104-3349

Screw
(Superseded to 104-2977)

$

$

Not available

41

Toro 104-3331

Bolt

$

$

Currently unavailable

44

Toro 93-7276

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0
