74560 (DH 140) - Toro Lawn Tractor (SN: 312000001 - 312999999) (2012) OPERATION - BRAKE ASSEMBLY Parts Diagram

Lawn Tractor

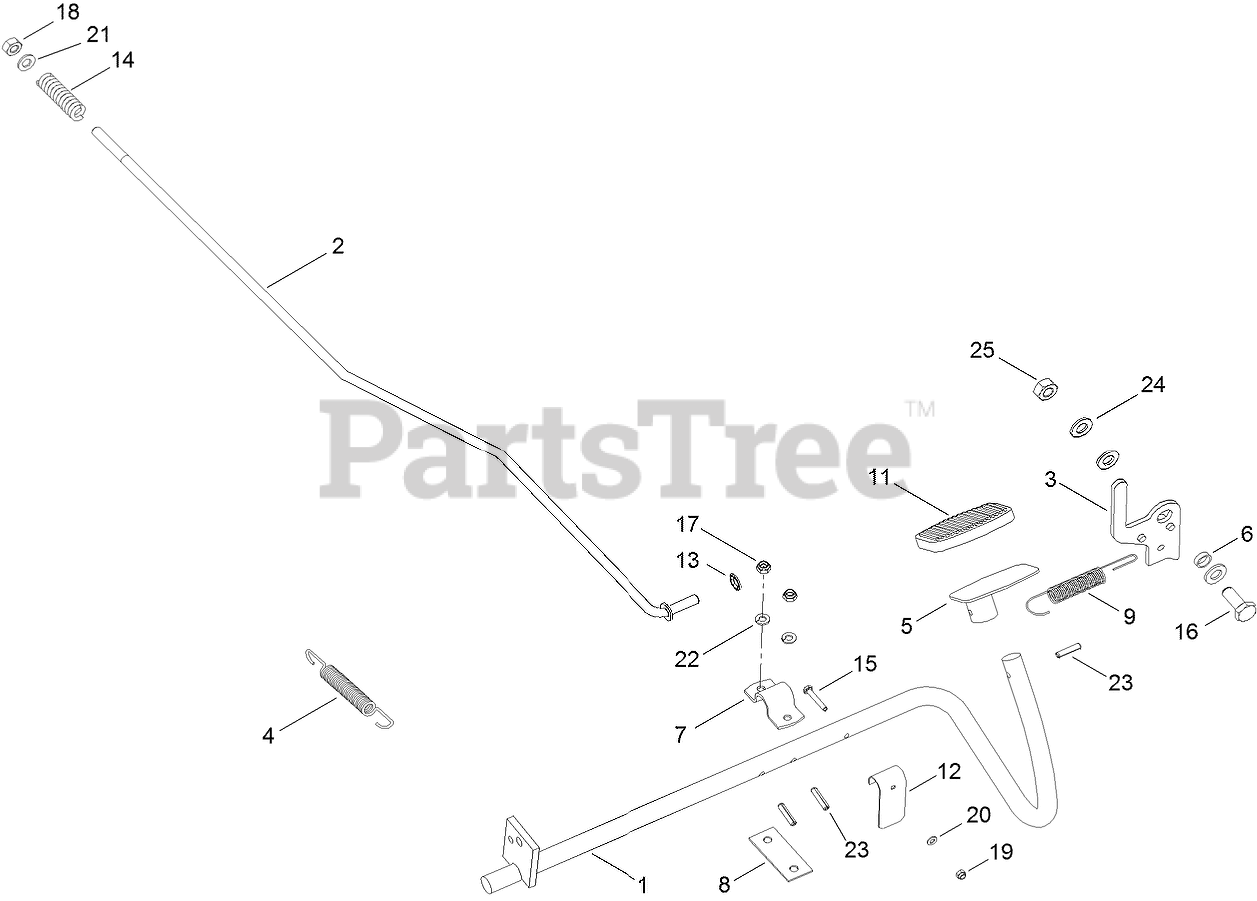

OPERATION - BRAKE ASSEMBLY Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro 120-8725

ROD-BRAKE, LINKAGE

$

$

Currently unavailable

3

Toro 120-8726

LEVER-PARKING BRAKE

$

$

Currently unavailable

4

Toro 104-3001

SPRING

$

$

Currently unavailable

5

Toro 120-8727

PEDAL-TRAVEL, BRAKE

$

$

Currently unavailable

6

Toro 120-8728

SPACER

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Toro 119-2434

SPACER

$

$

Not available

9

Toro 104-3005

SPRING-BRAKE, HAND

$

$

Currently unavailable

11

Toro 104-3018

PAD-PEDAL

$

$

Currently unavailable

12

Toro 119-5509

BRACKET-PARKING BRAKE
(Superseded to 104-2992)

$

$

Not available

13

Toro 121-0963

WASHER

$

$

Currently unavailable

14

Toro 104-3002

SPRING-BRAKE

$

$

Currently unavailable

15

Toro 104-3009

SCREW-HEX

$

$

Currently unavailable

16

Toro 104-3041

SCREW-HEX

$

$

Currently unavailable

17

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

18

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

19

Toro 104-2985

NUT-HEX

$

$

Currently unavailable

20

Toro 106-5766

Washer

$

$

Currently unavailable

21

Toro 106-4756

WASHER-PLAIN

$

$

Currently unavailable

22

Toro 104-3193

WASHER

$

$

Currently unavailable

23

Toro 104-3008

PIN-SPRING

$

$

Currently unavailable

24

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

25

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0
