74567 TE - Toro 122cm GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) CARBURETOR ASSEMBLY KAWASAKI FH580V-FS30 Parts Diagram

122cm GrandStand Stand-On Mower

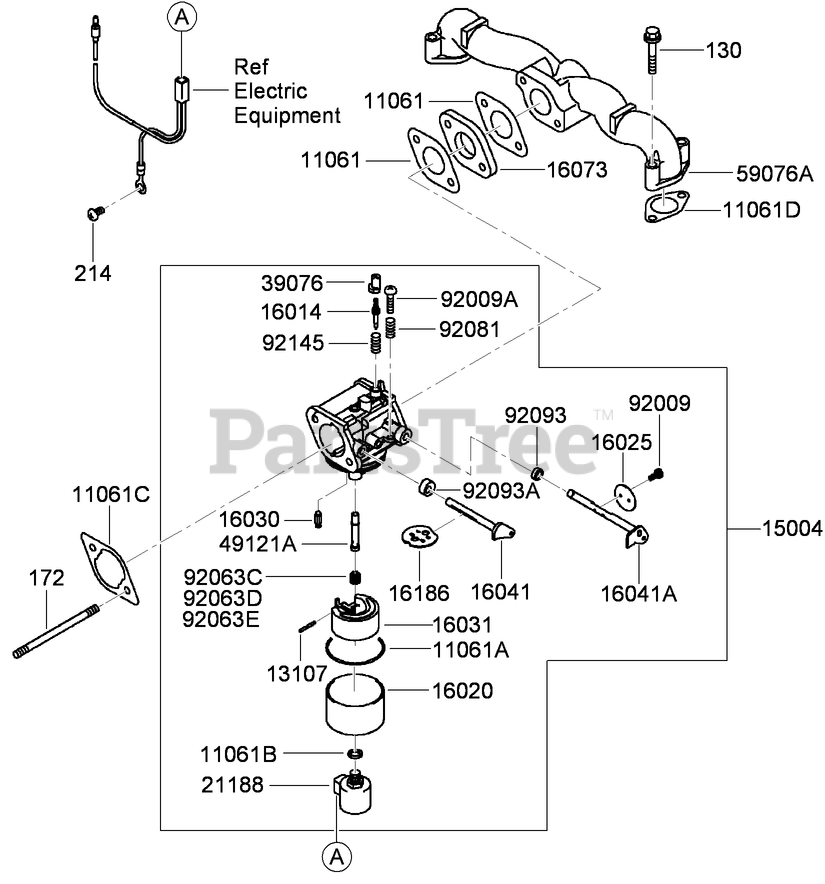

CARBURETOR ASSEMBLY KAWASAKI FH580V-FS30 Parts Diagram

  • Title

130

Kawasaki 130AA0635

BOLT-FLANGED (6X35)
(Superseded to 130B0635)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 16

0

172

Kawasaki 172BA0690

BOLT-STUD (6X90)
(Superseded to 172G0690)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, only 2 left!

0

214

Kawasaki 214AA0510

SCREW-PAN +-(5X10)
(Superseded to 214B0510)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 13

0

11061

Kawasaki 11061-7004

GASKET-INSULATOR
(Superseded to 11060-7003)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7009

GASKET-CHAMBER

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7010

GASKET-SCREW

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

11061C

Kawasaki 11061-7018

GASKET-CLEANER, AIR
(Superseded to 11060-7004)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 20+

0

11061D

Kawasaki 11061-7019

Gasket
(Superseded to 11060-7005)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

13107

Kawasaki 13107-7018

Shaft

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 7

0

15004

Kawasaki 15004-7060

CARBURETOR ASM
(Superseded to 15003-7100)

Note: Obtain parts from www.kawpowerepc.com

$443.99

$

Usually ships in 2-5 days

0

16014

Kawasaki 16014-7005

SCREW-AIR, PILOT

Note: Obtain parts from www.kawpowerepc.com

$14.99

$

In Stock, only 1 left!

0

16020

Kawasaki 16020-7003

Chamber-Float

Note: Obtain parts from www.kawpowerepc.com

$14.99

$

In Stock, only 4 left!

0

16025

Kawasaki 16025-7006

Valve-Throttle

Note: Obtain parts from www.kawpowerepc.com

$17.99

$

In Stock, Qty 5

0

16030

Kawasaki 16030-7003

Valve-Float

Note: Obtain parts from www.kawpowerepc.com

$20.99

$

In Stock, only 4 left!

0

16031

Kawasaki 16031-7002

Float

Note: Obtain parts from www.kawpowerepc.com

$28.99

$

In Stock, Qty 8

0

16041

Kawasaki 16041-7016

SHAFT-CHOKE, CARBURETOR

Note: Obtain parts from www.kawpowerepc.com

$15.99

$

In Stock, Qty 5

0

16041A

Kawasaki 16041-7018

SHAFT-THROTTLE, CARBURETOR

Note: Obtain parts from www.kawpowerepc.com

$22.99

$

In Stock, Qty 5

0

16073

Kawasaki 16073-7007

Insulator
(Superseded to 16073-7001)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16186

Kawasaki 16186-7001

CHOKE VALVE ASM

Note: Obtain parts from www.kawpowerepc.com

$13.99

$

In Stock, only 1 left!

0

21188

Kawasaki 21188-7002

Solenoid

Note: Obtain parts from www.kawpowerepc.com

$171.99

$

In Stock, only 2 left!

0

39076

Kawasaki 39076-7001

Limiter

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

In Stock, only 4 left!

0

49121A

Kawasaki 49121-7016

NOZZLE-MAIN

Note: Obtain parts from www.kawpowerepc.com

$34.99

$

In Stock, only 1 left!

0

59076A

Kawasaki 59076-7017

MANIFOLD-INTAKE
(Superseded to 59076-7001)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92009

Kawasaki 92009-2083

Screw
(Superseded to 31037A-6157A)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 11

0

92009A

Kawasaki 92009-2349

Screw

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 5

0

92063C

Kawasaki 92063-7066

JET-MAIN, No. 108

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

Usually ships in 2-5 days

0

92063D

Kawasaki 92063-7090

JET-MAIN, No.106 (2380FT)

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

Usually ships in 2-5 days

0

92063E

Kawasaki 92063-7091

JET-MAIN, No.104 (6560FT)

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

Usually ships in 2-5 days

0

92081

Kawasaki 92081-2234

Spring

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 5

0

92093

Kawasaki 92093-2100

Seal

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 14

0

92093A

Kawasaki 92093-7003

Seal

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 1 left!

0

92145

Kawasaki 92145-7015

Spring

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 10

0
